Danfoss ICF SS 25-4 with ICFG Flexline valve station, 25 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF SS 25-4 with ICFG Flexline valve station (code 027L3288). The ICF valve station combines several refrigeration control functions in one stainless steel housing — for this configuration: Stop valve (ICFS-SS 25), Blank top cover (ICFB-SS 25), Flow turn (ICFG 25-25), Stop valve (ICFS-SS 25). Connection size 25 mm, connection standard EN 10220 (butt weld). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF SS 25-4 with ICFG Flexline valve station
- Code number
- 027L3288
- Connection size
- 25 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS-SS 25), Blank top cover (ICFB-SS 25), Flow turn (ICFG 25-25), Stop valve (ICFS-SS 25)
- Body material
- Stainless steel
- Surface coating
- uncoated
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 13.97 kg, gross weight 19.688 kg
- Approvals
- EAC, UL
- EAN
- 5715255002086
- Net weight
- 13.97 Kilogram
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Stainless steel
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 450 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS-SS 25
- Module 2
- Blank top cover
- Module 2 type
- ICFB-SS 25
- Module 3
- Flow turn
- Module 3 type
- ICFG 25-25
- Module 4
- Stop valve
- Module 4 type
- ICFS-SS 25
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1233zd(E)
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P3-P5-P6
- Side port quantity [pc]
- 4 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- UL approval file name
- REFRIGERANT VALVE 53R0
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 25 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF SS 25-4 with ICFG (Stop valve (ICFS-SS 25), Blank top cover (ICFB-SS 25), Flow turn (ICFG 25-25), Stop valve (ICFS-SS 25)). The station bolts into a 25 mm line to EN 10220 (butt weld); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 20-4-108D1 Flexline valve station, 32 mm, ASME B 16.11
027L3560
Danfoss
Danfoss ICF 20-4-18 Flexline valve station, 20 mm, EN 10220
027L3379
Danfoss
Danfoss ICF 20-4-11 Flexline valve station, 20 mm, EN 10220
027L4580
Danfoss
Danfoss ICF 20-4-14MB66 Flexline valve station, 25 mm, EN 10220
027L3356
Danfoss
Danfoss ICF 20-4-10RA Flexline valve station, 20 mm, EN 10220
027L3073
Danfoss

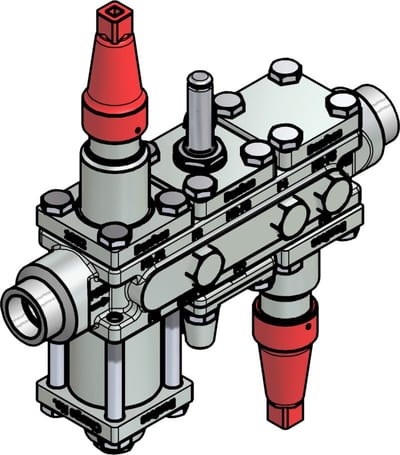

Danfoss ICF 20-6-4 Flexline valve station, 20 mm, ASME B 16.11
