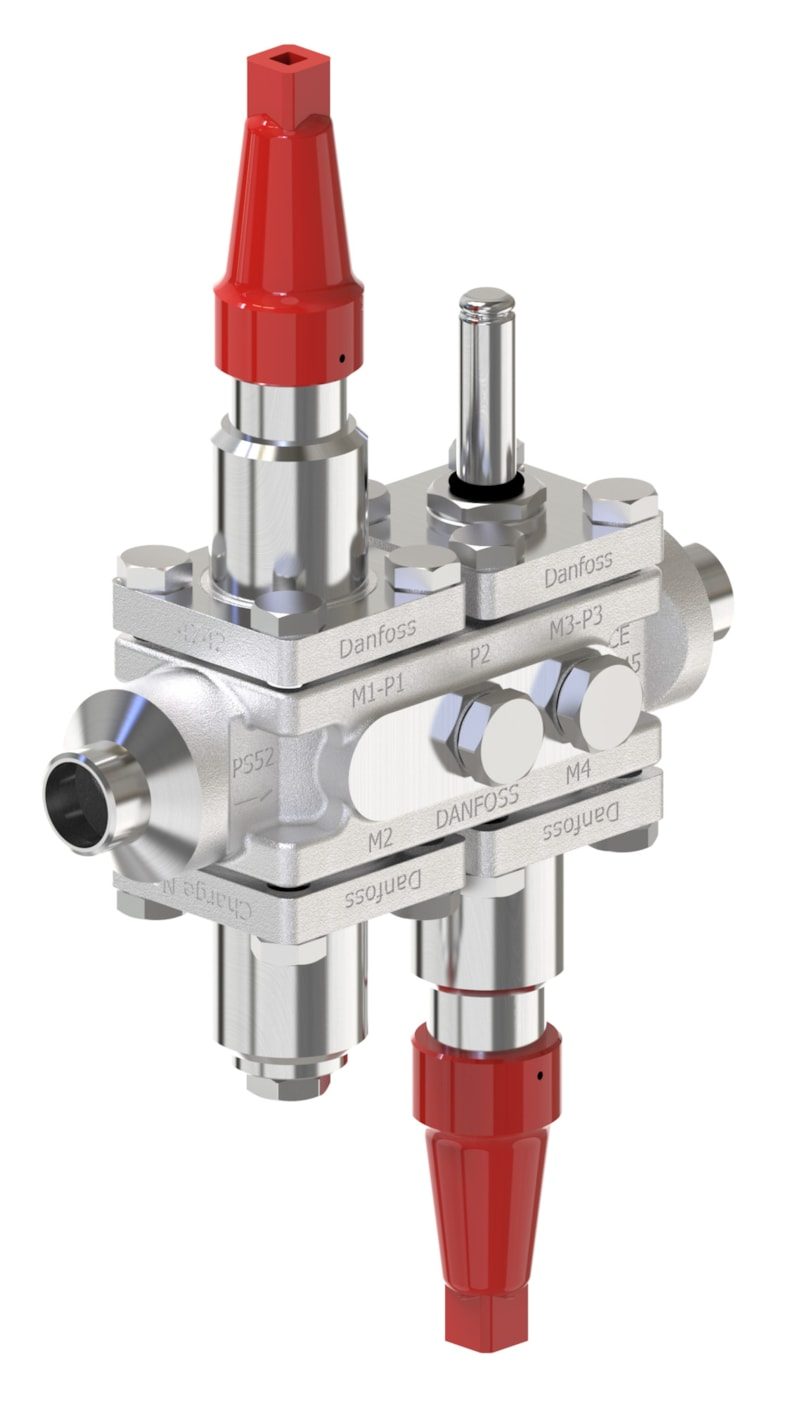

Danfoss ICF SS 20-4-9H stainless steel valve station, 25 mm, ASME B 36.19M Schedule 40S
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF SS 20-4-9H Flexline stainless steel valve station (code 027L3553). The ICF SS valve station combines several refrigeration control functions in a single stainless steel housing, replacing a string of separately-mounted stop, filter, solenoid, regulating and motor-operated valves with one welded-in station. This is a 4-function-module (ICF SS 20-4) configuration with 25 mm butt weld end connections to ASME B 36.19M Schedule 40S. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. Applicable to HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) in pumped-liquid, liquid-injection and hot-gas lines. The stainless steel housing and modules suit corrosive and hygienic-duty plant where the carbon-steel ICF line is unsuitable. Supplied as a complete factory-assembled and pressure-tested station.
Technical Specifications
- Type
- ICF SS 20-4-9H Flexline stainless steel valve station
- Code number
- 027L3553
- Module count
- 4 function modules (ICF SS 20-4)
- Connection size
- 25 mm
- Connection type
- Butt weld
- Connection standard
- ASME B 36.19M Schedule 40S
- Housing and module material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Applicable refrigerants
- HCFC, non-flammable HFC, R717 (ammonia), R744 (CO2)
- Weight
- net weight 7.167 kg, gross weight 8.346 kg
- Approvals
- CE, EAC, TUV, UL
- EAN
- 5715162144114
- Net weight
- 7.167 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- Body material
- Stainless steel
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS SS 20
- Module 2
- Filter
- Module 2 type
- ICFF SS 20E
- Module 3
- Solenoid valve
- Module 3 type
- ICFE SS 20H
- Module 4
- Stop valve
- Module 4 type
- ICFS SS 20
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port connection size [in]
- 3/8 in
- Side port connection type
- NPT
- Side port placement
- P2-P3-P5-P6
- Side port quantity [pc]
- 4 pc
- Surface coating
- uncoated
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-20-4-25LSXFEEHSXXXXX49XX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
4-module ICF SS stainless steel valve station, 25 mm butt weld connection to ASME B 36.19M Schedule 40S. Confirm the configuration designation (ICF SS 20-4-9H) and connection size/standard before ordering; the carbon-steel ICF line and the alternative connection-standard variants are separate code numbers.
