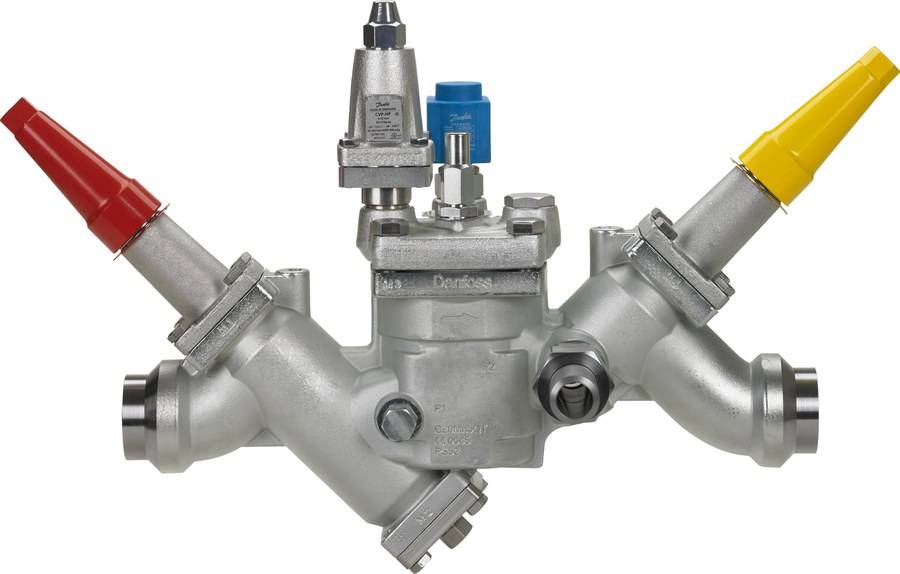

Danfoss ICF 50-4-45S40 Flexline valve station, 50 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 50-4-45S40 Flexline valve station (code 027L5036). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (SVA-S 50), Filter cover without FIA filter (ICFB 50), Control valve (ICS 50-40), Regulation valve (REG-SB 50). Connection size 50 mm, connection standard ASME B 16.11 (socket weld). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 50-4-45S40 Flexline valve station
- Code number
- 027L5036
- Connection size
- 50 mm
- Connection standard
- ASME B 16.11
- Connection type
- Socket weld
- Module configuration
- Stop valve (SVA-S 50), Filter cover without FIA filter (ICFB 50), Control valve (ICS 50-40), Regulation valve (REG-SB 50)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 26.01 kg, gross weight 40 kg
- Approvals
- C-UL-US Listed, CE, EAC, TÜV
- EAN
- 5702428917629
- Net weight
- 26.01 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection size [in]
- 2 in
- Connection size [mm]
- 50 mm
- Defrost port placement
- P2-P4
- Defrost port quantity [pc]
- 2 pc
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Module 1
- Stop valve
- Module 1 type
- SVA-S 50
- Module 2
- Filter Cover (no FIA Filter)
- Module 2 type
- ICFB 50
- Module 3
- Control valve
- Module 3 type
- ICS 50-40
- Module 4
- Regulation valve
- Module 4 type
- REG-SB 50
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port placement
- P1-P3
- Side port quantity [pc]
- 2 pc
- Surface coating
- ZnCr04
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-50-4-50SSXBXG2RBXXXX2NXX
- UL mark
- Yes
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 50 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 50-4-45S40 (Stop valve (SVA-S 50), Filter cover without FIA filter (ICFB 50), Control valve (ICS 50-40), Regulation valve (REG-SB 50)). The station bolts into a 50 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 50-4-46MA Flexline valve station, 40 mm, EN 10220
027L5037
Danfoss
Danfoss ICF 50-4-46MB Flexline valve station, 40 mm, EN 10220
027L5041
Danfoss
Danfoss ICF 50-4-44 Flexline valve station, 40 mm, EN 10220
027L5045
Danfoss
Danfoss ICF 50-4-47H32 Flexline valve station, 40 mm, EN 10220 (code 027L5083)
Danfoss
Danfoss ICF 50-4-47H40 Flexline valve station, 40 mm, EN 10220 (code 027L5084)
Danfoss
Danfoss ICF 50-4-47H40 Flexline valve station, 50 mm, EN 10220
027L5085
Danfoss

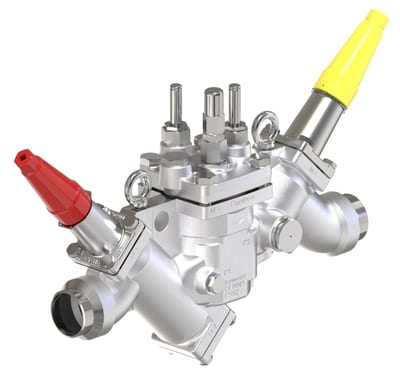

Danfoss ICF 50-4-48H40 Flexline valve station, 50 mm, EN 10220
027L5089
Danfoss

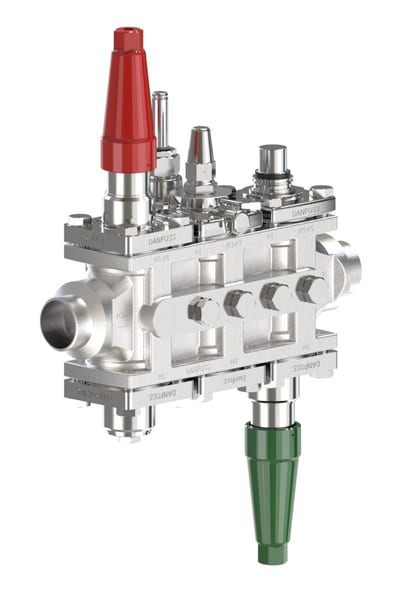

Danfoss ICF 25-6-90 Flexline valve station, 40 mm, EN 10220 (code 027L5088)
