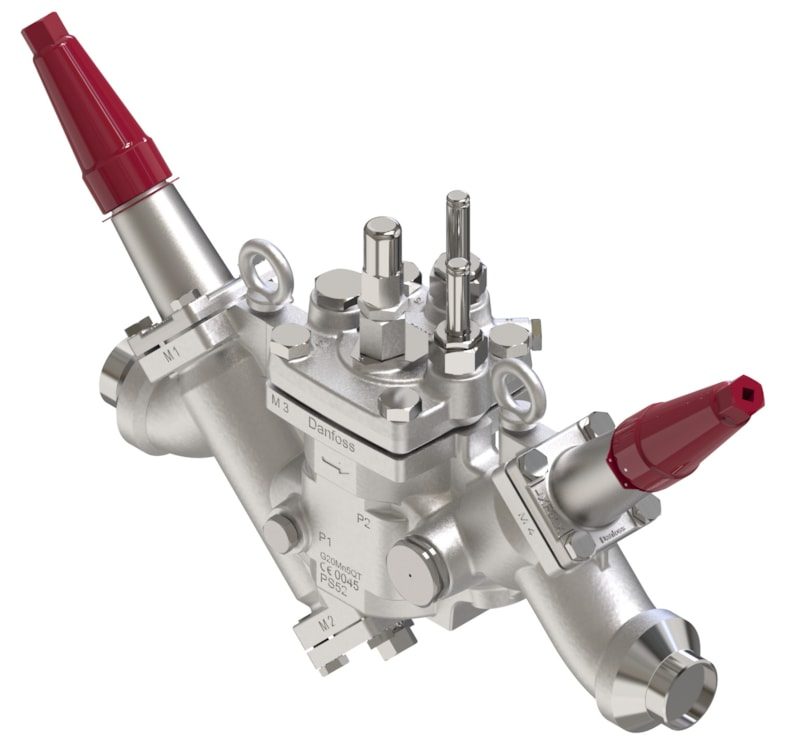

Danfoss ICF 50-4-47H40 Flexline valve station, 40 mm, EN 10220 (code 027L5084)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 50-4-47H40 Flexline valve station (code 027L5084). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (SVA-S 50), FIA 50 filter (FIA 50-150P), Servo valve (ICSH 50), Stop valve (SVA-S 50). Connection size 40 mm, connection standard EN 10220 (butt weld). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 50-4-47H40 Flexline valve station
- Code number
- 027L5084
- Connection size
- 40 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Module configuration
- Stop valve (SVA-S 50), FIA 50 filter (FIA 50-150P), Servo valve (ICSH 50), Stop valve (SVA-S 50)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 29 kg, gross weight 39.25 kg
- Approvals
- C-UL-US Listed, CE, EAC, TÜV
- EAN
- 5715162144541
- Net weight
- 29 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 1½ in
- Connection size [mm]
- 40 mm
- Defrost port connection size
- 33 X 1.5
- Defrost port connection type
- M
- Defrost port placement
- P2-P4
- Defrost port quantity [pc]
- 2 pc
- Direction
- Straightway
- Equipment
- Cap/2 x Lifting hooks
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Module 1
- Stop valve
- Module 1 type
- SVA-S 50
- Module 2
- Filter Cover (no FIA Filter)
- Module 2 type
- FIA 50-150P
- Module 3
- Solenoid valve
- Module 3 type
- ICSH 50 40-2
- Module 4
- Stop valve
- Module 4 type
- SVA-S 50
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P1-P3
- Side port quantity [pc]
- 2 pc
- Surface coating
- Zn (TLP)
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-50-4-40DSXF5H2SXXXXX2PXX
- UL mark
- Yes
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 40 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 50-4-47H40 (Stop valve (SVA-S 50), FIA 50 filter (FIA 50-150P), Servo valve (ICSH 50), Stop valve (SVA-S 50)). The station bolts into a 40 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 50-4-47H40 Flexline valve station, 50 mm, EN 10220
027L5085
Danfoss
Danfoss ICF 50-4-48H40 Flexline valve station, 50 mm, EN 10220
027L5089
Danfoss
Danfoss ICF 25-6-90 Flexline valve station, 40 mm, EN 10220 (code 027L5088)
Danfoss
Danfoss ICF 65-3-42S40 Flexline valve station, 65 mm, EN 10220
027L6505
Danfoss
Danfoss ICF 65-3-42S40 Flexline valve station, 65 mm, ASME B 36.10M Schedule 80
027L6506
Danfoss

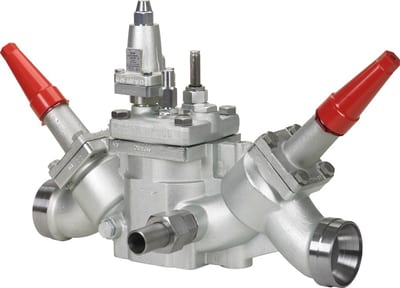

Danfoss ICF 65-3-42S40 Flexline valve station, 80 mm, EN 10220
027L6507
Danfoss
Danfoss ICF 65-3-42S40 Flexline valve station, 80 mm, ASME B 36.10M Schedule 80
027L6508
Danfoss

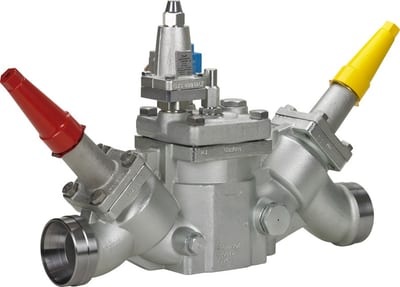

Danfoss ICF 65-3-45S65 Flexline valve station, 65 mm, EN 10220
