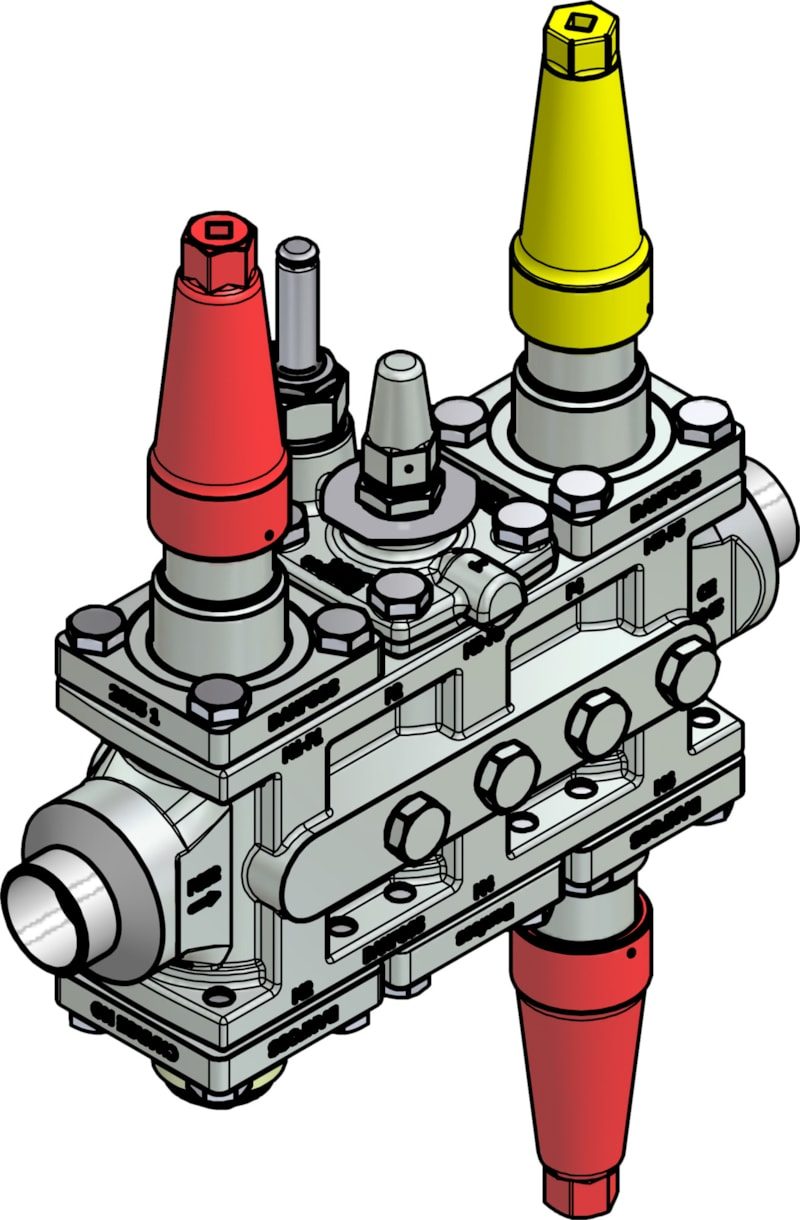

Danfoss ICF 25-6-1RA Flexline valve station, 32 mm, EN 10220 (code 027L4006)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 25-6-1RA Flexline valve station (code 027L4006). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: ICFS 25 stop valve, ICFF 25 filter, ICFE 25 solenoid valve, ICFB 25 blank top cover, ICFR 25A manual regulating valve, ICFS 25 stop valve. Connection size 32 mm, connection standard EN 10220. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L4006
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 C
- Standard
- EN 10220
- Standard size
- 32 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-6-1RA (ICFS 25 stop valve, ICFF 25 filter, ICFE 25 solenoid valve, ICFB 25 blank top cover, ICFR 25A manual regulating valve, ICFS 25 stop valve). The station bolts into a 32 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Approvals
