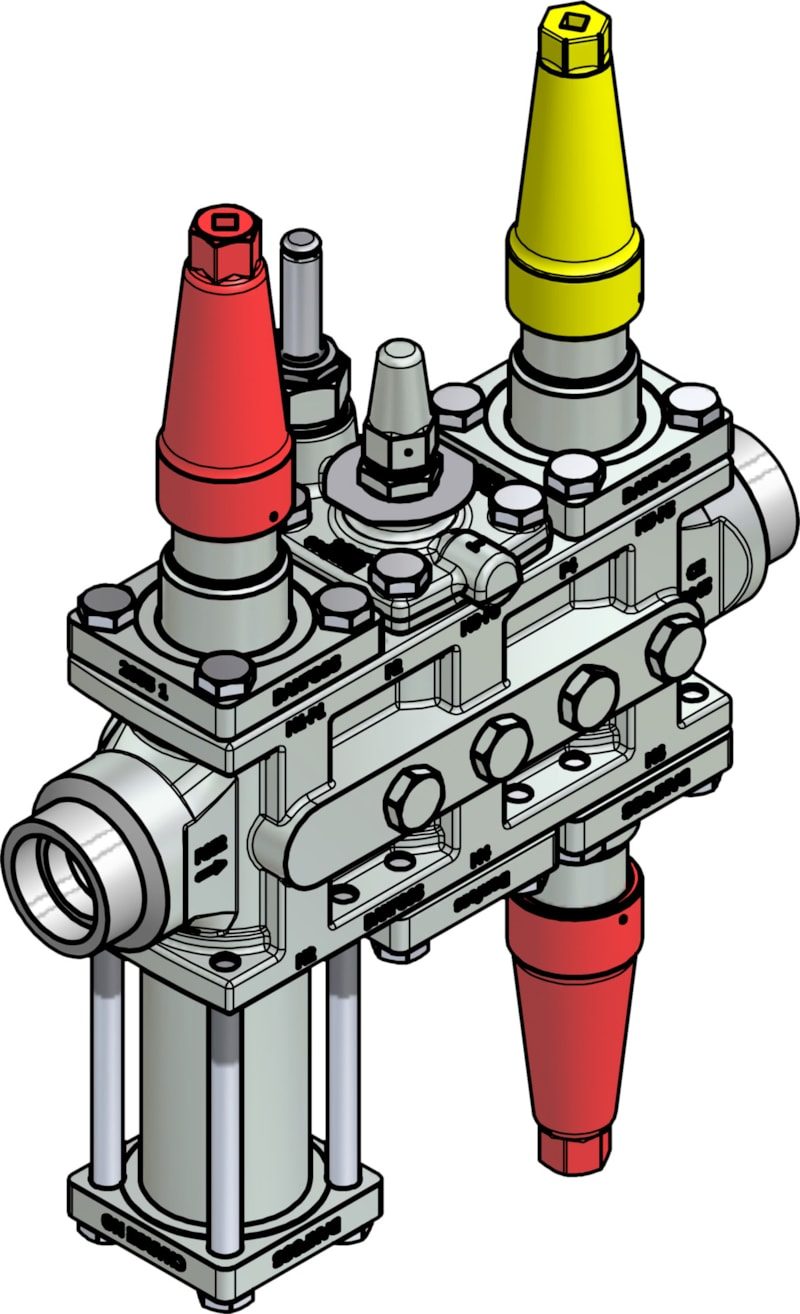

Danfoss ICF 25-6-1RA Flexline valve station, 32 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 25-6-1RA Flexline valve station (code 027L4008). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: ICFS 25 stop valve, ICFF 25E filter, ICFE 25 solenoid valve, ICFB 25 blank top cover, ICFR 25A manual regulating valve, ICFS 25 stop valve. Connection size 32 mm, connection standard ASME B 16.11. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 25-6-1RA Flexline valve station
- Code number
- 027L4008
- Connection size
- 32 mm
- Connection standard
- ASME B 16.11
- Module configuration
- ICFS 25 stop valve, ICFF 25E filter, ICFE 25 solenoid valve, ICFB 25 blank top cover, ICFR 25A manual regulating valve, ICFS 25 stop valve
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 23.845 kg, gross weight 25.2 kg
- Approvals
- CE, EAC, LLC CDC TYSK, TÜV, UL
- EAN
- 5702428239080
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Socket weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- ICFS 25
- Module 2
- Filter
- Module 2 type
- ICFF 25E
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 25
- Module 4
- Blank top cover
- Module 4 type
- ICFB 25
- Module 5
- Manual regulating valve
- Module 5 type
- ICFR 25A
- Module 6
- Stop valve
- Module 6 type
- ICFS 25
- Side port placement
- P2-P4-P5-P7-P9-P10
- Side port quantity
- 6 pc
- Surface coating
- ZnCr04
- Type code ICF
- ICF-25-6-32SSXFEEHBXRASX61XX
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 32 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-6-1RA (ICFS 25 stop valve, ICFF 25E filter, ICFE 25 solenoid valve, ICFB 25 blank top cover, ICFR 25A manual regulating valve, ICFS 25 stop valve). The station bolts into a 32 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
