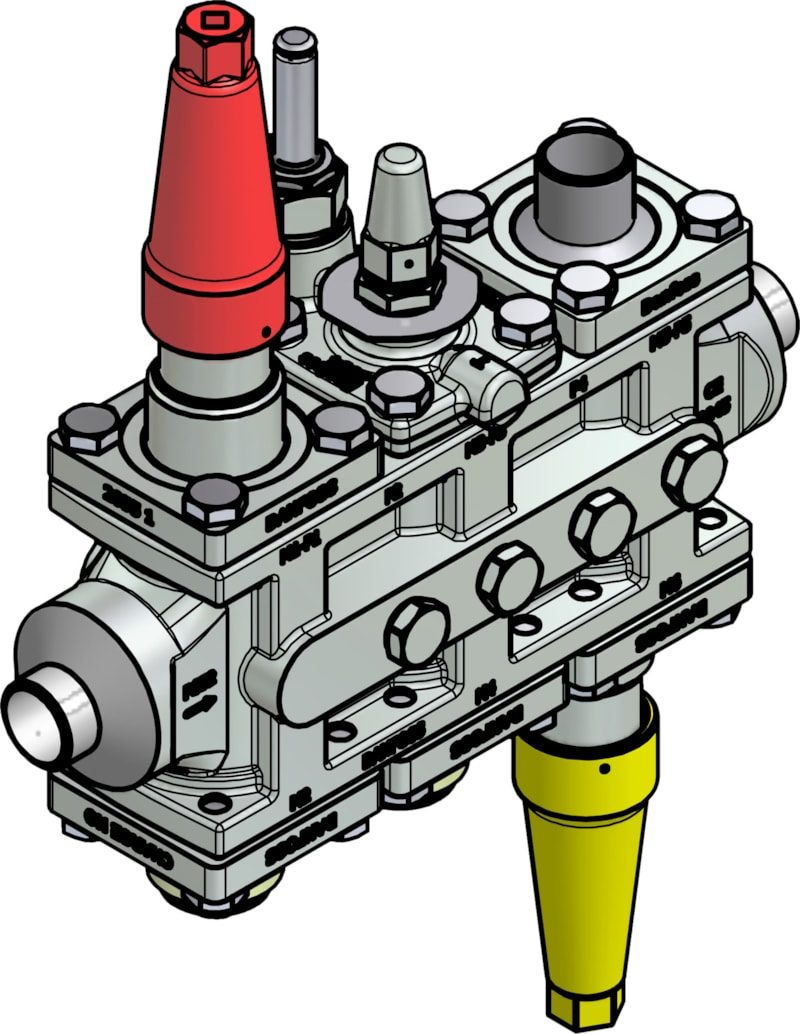

Danfoss ICF 25-6-15RA Flexline valve station, 25 mm, EN 10220 (code 027L4121)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 25-6-15RA Flexline valve station (code 027L4121). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Check valve (ICFC 25), Welding 25 DIN (ICFW 25D), Manual regulating valve (ICFR 25A). Connection size 25 mm, connection standard EN 10220. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L4121
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 C
- Standard
- EN 10220
- Standard size
- 25 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-6-15RA (Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Check valve (ICFC 25), Welding 25 DIN (ICFW 25D), Manual regulating valve (ICFR 25A)). The station bolts into a 25 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Approvals
