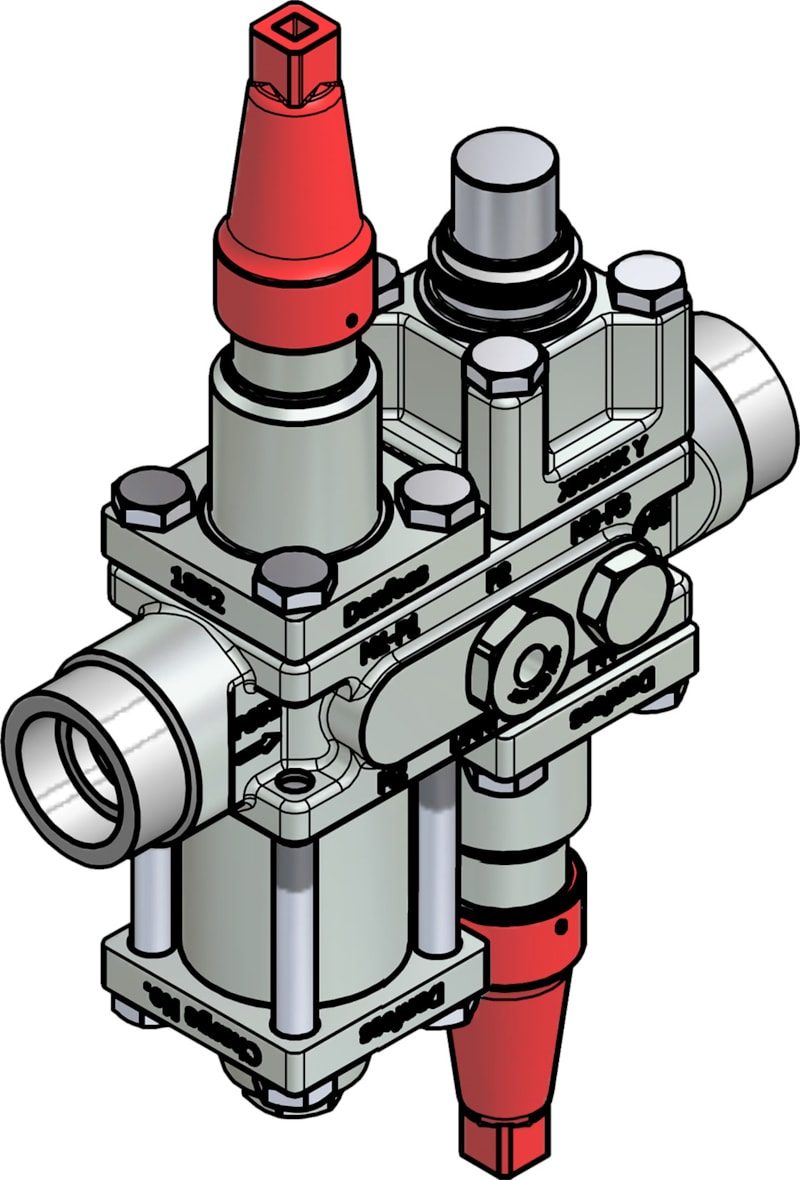

Danfoss ICF 20-4-14MA Flexline valve station, 25 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-4-14MA Flexline valve station (code 027L3101). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Filter (ICFF 20E), Motor valve (ICM 20-A), Stop valve (ICFS 20). Connection size 25 mm, connection standard ASME B 16.11. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 20-4-14MA Flexline valve station
- Code number
- 027L3101
- Connection size
- 25 mm
- Connection standard
- ASME B 16.11
- Module configuration
- Stop valve (ICFS 20), Filter (ICFF 20E), Motor valve (ICM 20-A), Stop valve (ICFS 20)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 6.721 kg, gross weight 8.16 kg
- Approvals
- CE, EAC, LLC CDC TYSK, TÜV, UL
- EAN
- 5702428184489
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Socket weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- ICFS 20
- Module 2
- Filter
- Module 2 type
- ICFF 20E
- Module 3
- Motor valve
- Module 3 type
- ICM 20-A
- Module 4
- Stop valve
- Module 4 type
- ICFS 20
- Side port placement
- P2-P3-P5-P6
- Side port quantity
- 4 pc
- Surface coating
- ZnCr04
- Type code ICF
- ICF-20-4-25SSXFEMASXXXXX4EXX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 25 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-4-14MA (Stop valve (ICFS 20), Filter (ICFF 20E), Motor valve (ICM 20-A), Stop valve (ICFS 20)). The station bolts into a 25 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 20-4-14MC Flexline valve station, 32 mm, EN 10220
027L3109
Danfoss
Danfoss ICF 20-4-14MC Flexline valve station, 25 mm, ASME B 16.11
027L3112
Danfoss
Danfoss ICF 20-4-14MC Flexline valve station, 32 mm, ASME B 16.11
027L3113
Danfoss
Danfoss ICF 20-6-99 Flexline valve station, 20 mm, EN 10220
027L3121
Danfoss
Danfoss ICF 20-4-99 Flexline valve station, 20 mm, EN 10220 (code 027L3122)
Danfoss
Danfoss ICF 20-6-90 Flexline valve station, 25 mm, EN 10220 (code 027L3123)
Danfoss
Danfoss ICF 20-6-90 Flexline valve station, 20 mm, EN 10220 (code 027L3133)
Danfoss

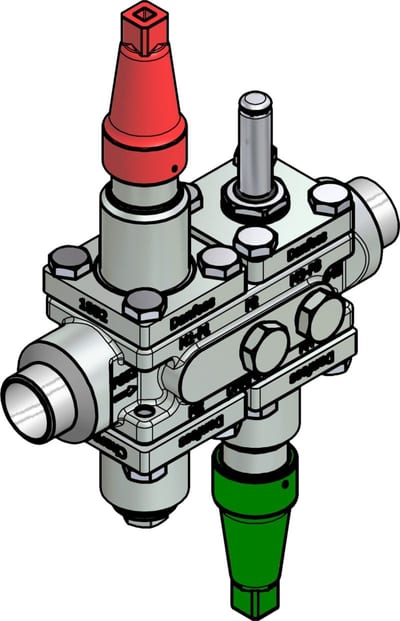

Danfoss ICF 20-4-18 Flexline valve station, 25 mm, EN 10220 (code 027L3134)
