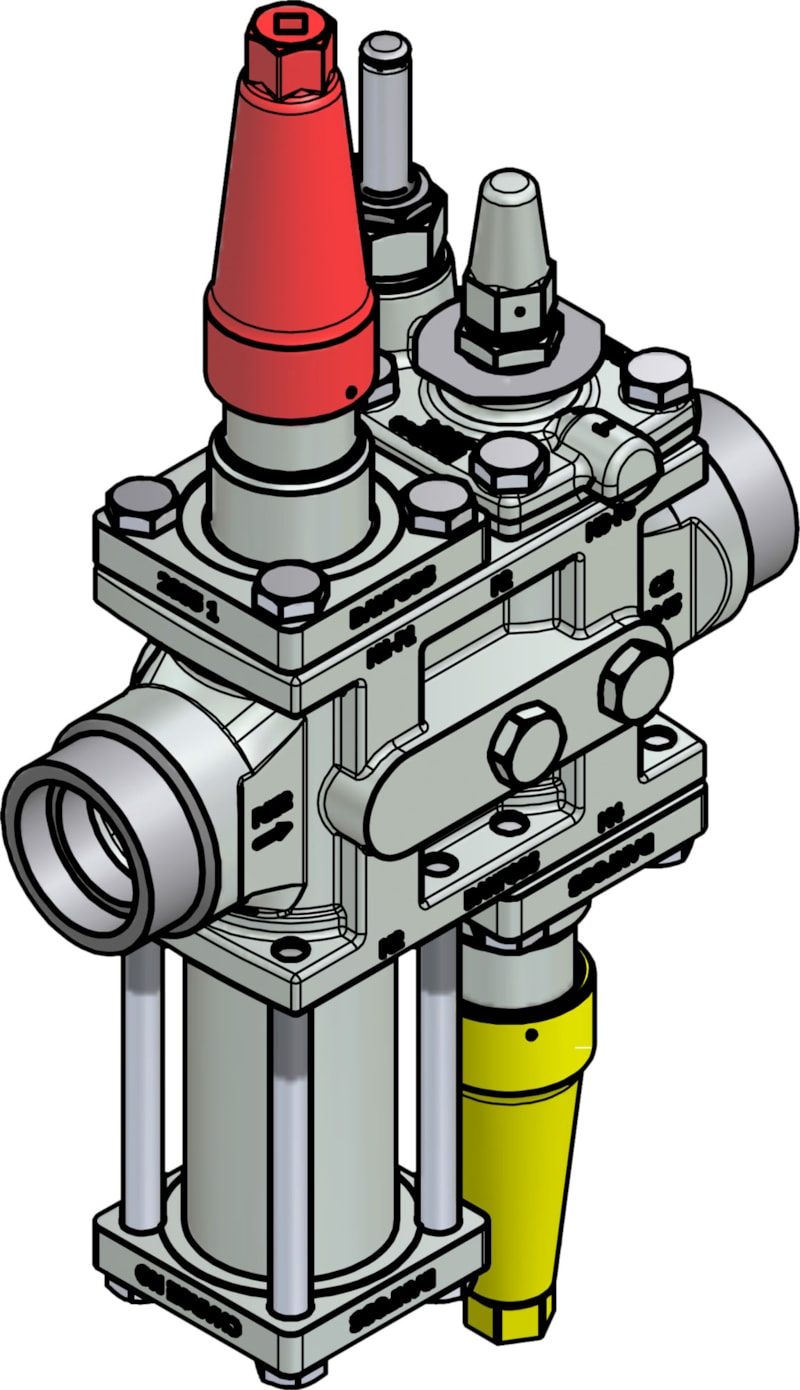

Danfoss ICF 25-4-10RB Flexline valve station, 40 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 25-4-10RB Flexline valve station (code 027L4091). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 25), Filter (ICFF 25E), Solenoid valve (ICFE 25), Manual regulating valve (ICFR 25B). Connection size 40 mm, connection standard ASME B 16.11 (socket weld). Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 25-4-10RB Flexline valve station
- Code number
- 027L4091
- Connection size
- 40 mm
- Connection standard
- ASME B 16.11
- Connection type
- Socket weld
- Module configuration
- Stop valve (ICFS 25), Filter (ICFF 25E), Solenoid valve (ICFE 25), Manual regulating valve (ICFR 25B)
- Body material
- Steel
- Surface coating
- ZnCr04
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 16.19 kg, gross weight 17.124 kg
- Approvals
- CE, EAC, TÜV, UL
- EAN
- 5702428238267
- Net weight
- 16.19 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection size [in]
- 1 1/2 in
- Connection size [mm]
- 40 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 25
- Module 2
- Filter
- Module 2 type
- ICFF 25E
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 25
- Module 4
- Manual regulating valve
- Module 4 type
- ICFR 25B
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port placement
- P2-P3-P5-P6
- Side port quantity [pc]
- 4 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-25-4-40SSXFEEHRBXXXX4AXX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 40 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-4-10RB (Stop valve (ICFS 25), Filter (ICFF 25E), Solenoid valve (ICFE 25), Manual regulating valve (ICFR 25B)). The station bolts into a 40 mm line to ASME B 16.11 (socket weld); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
