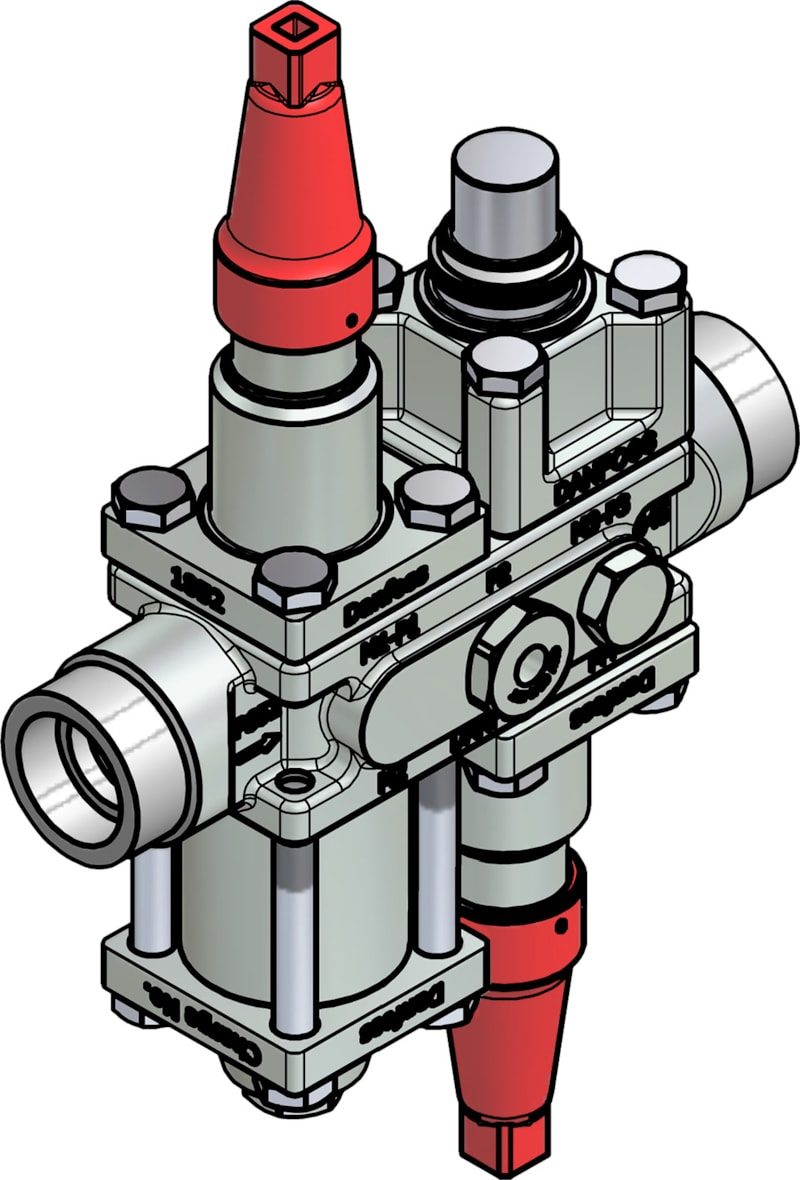

Danfoss ICF 20-4-14MB Flexline valve station, 25 mm, ASME B 16.11 (code 027L3106)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 20-4-14MB Flexline valve station (code 027L3106). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Filter (ICFF 20E), Motor valve (ICM 20-B), Stop valve (ICFS 20). Connection size 25 mm, connection standard ASME B 16.11 (socket weld). Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L3106
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 C
- Standard
- ASME B 16.11
- Standard size
- 25 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-4-14MB (Stop valve (ICFS 20), Filter (ICFF 20E), Motor valve (ICM 20-B), Stop valve (ICFS 20)). The station bolts into a 25 mm line to ASME B 16.11 (socket weld); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Approvals
