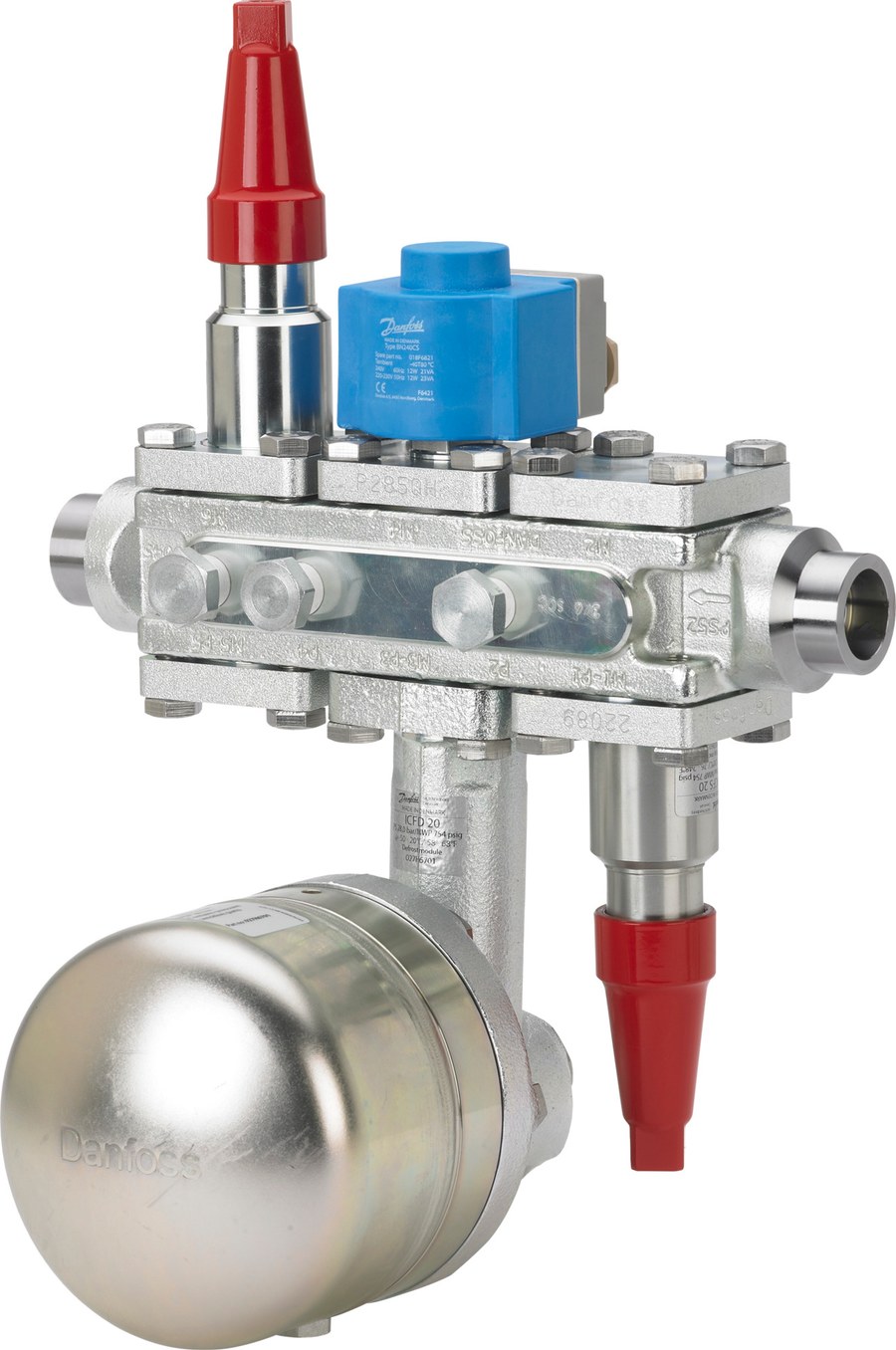

Danfoss ICF 20-6-90 Flexline valve station, 20 mm, ASME B 16.11 (code 027L3463)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-6-90 Flexline valve station (code 027L3463). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Blank top cover (ICFB 20), Solenoid valve (ICFE 20), Defrost module (ICFD 20), Blank top cover (ICFB 20), Stop valve (ICFS 20). Connection size 20 mm, connection standard ASME B 16.11. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 20-6-90 Flexline valve station
- Code number
- 027L3463
- Connection size
- 20 mm
- Connection standard
- ASME B 16.11
- Module configuration
- Stop valve (ICFS 20), Blank top cover (ICFB 20), Solenoid valve (ICFE 20), Defrost module (ICFD 20), Blank top cover (ICFB 20), Stop valve (ICFS 20)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 15.04 kg, gross weight 17.992 kg
- Approvals
- CE, EAC, LLC CDC TYSK, TÜV, UL
- EAN
- 5702428999656
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Socket weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- ICFS 20
- Module 2
- Blank top cover
- Module 2 type
- ICFB 20
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 20
- Module 4
- Defrost module
- Module 4 type
- ICFD 20
- Module 5
- Blank top cover
- Module 5 type
- ICFB 20
- Module 6
- Stop valve
- Module 6 type
- ICFS 20
- Side port placement
- P2-P4-P5-P7-P9-P10
- Side port quantity
- 6 pc
- Surface coating
- ZnCr04
- Type code ICF
- ICF-20-6-20SSXBXEXD1BXSX6XXX
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-6-90 (Stop valve (ICFS 20), Blank top cover (ICFB 20), Solenoid valve (ICFE 20), Defrost module (ICFD 20), Blank top cover (ICFB 20), Stop valve (ICFS 20)). The station bolts into a 20 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
