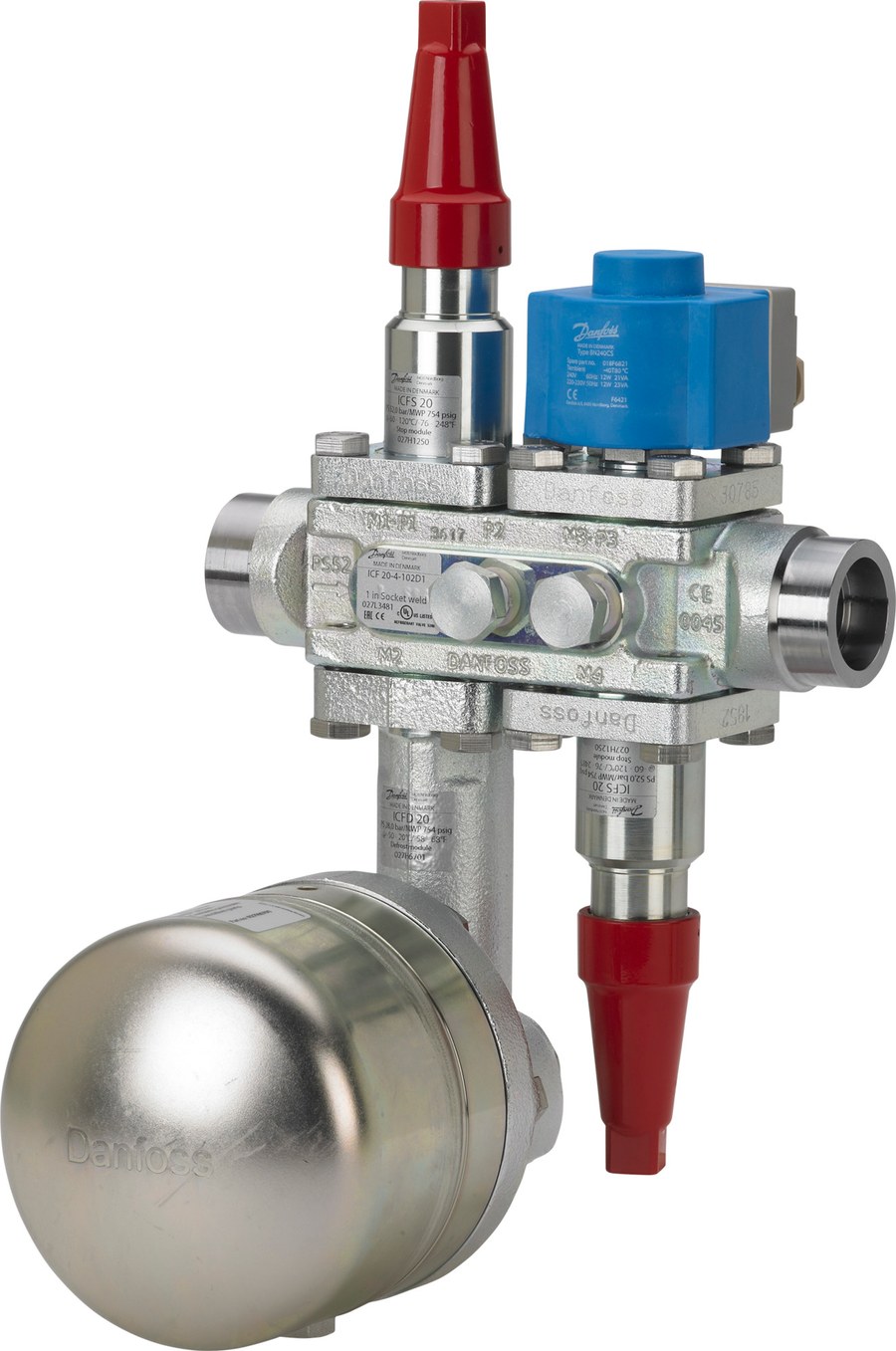

Danfoss ICF 20-4-102D1 Flexline valve station, 32 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-4 industrial refrigeration valve station, code 027L3482. Modular 4-function valve station for ammonia (NH3) and CO2 industrial refrigeration systems: shut-off, filter, solenoid and check-valve functions in one compact body. DN20 connection. Applications: cold storage, food processing, marine reefer, industrial process cooling. Part of the Danfoss ICF industrial refrigeration valve station family (see Danfoss product decoder for full 027L / 027H / 027B family).
Technical Specifications
- Type
- ICF 20-4-102D1 Flexline valve station
- Code number
- 027L3482
- Connection size
- 32 mm
- Connection standard
- ASME B 16.11
- Module configuration
- Stop valve (ICFS 20), Defrost module (ICFD 20), Solenoid valve (ICFE 20H), Stop valve (ICFS 20)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 12.47 kg, gross weight 15.924 kg
- Approvals
- CE, EAC, LLC CDC TYSK, TÜV, UL
- EAN
- 5702428989633
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Socket weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- ICFS 20
- Module 2
- Defrost module
- Module 2 type
- ICFD 20
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 20H
- Module 4
- Stop valve
- Module 4 type
- ICFS 20
- Side port placement
- P2-P3-P5-P6
- Side port quantity
- 4 pc
- Surface coating
- ZnCr04
- Type code ICF
- ICF-20-4-32SSXD1EXSXXXXX42AX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 32 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-4-102D1 (Stop valve (ICFS 20), Defrost module (ICFD 20), Solenoid valve (ICFE 20H), Stop valve (ICFS 20)). The station bolts into a 32 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss

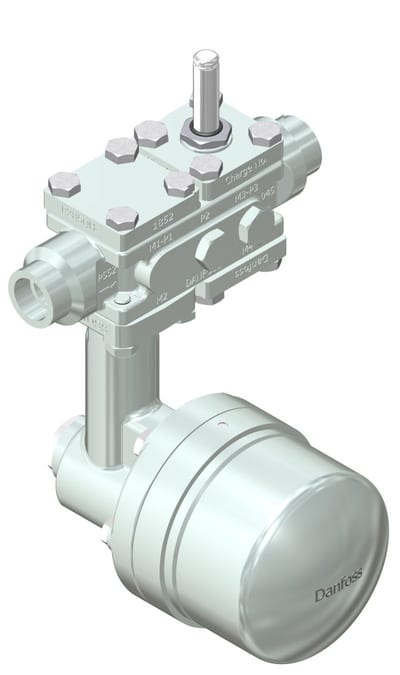

Danfoss ICF 20-4-90 Flexline valve station, 20 mm, EN 10220 (code 027L3483)
Danfoss
Danfoss ICF 20-4-90 Flexline valve station, 25 mm, EN 10220 (code 027L3484)
Danfoss
Danfoss ICF 20-4-90 Flexline valve station, 32 mm, EN 10220
027L3485
Danfoss

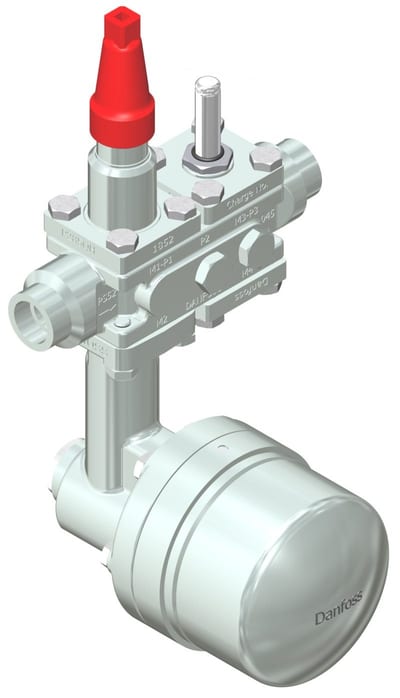

Danfoss ICF 20-4-105D1 Flexline valve station, 20 mm, EN 10220
027L3486
Danfoss
Danfoss ICF 20-4-105D1 Flexline valve station, 25 mm, EN 10220
027L3487
Danfoss
Danfoss ICF 20-4-102D1 Flexline valve station, 25 mm, EN 10220
027L3490
Danfoss
Danfoss ICF 20-4-102D1 Flexline valve station, 32 mm, EN 10220
027L3491
Danfoss

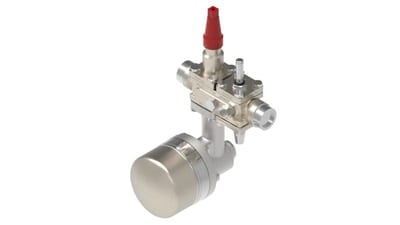

Danfoss ICF 20-4-106D1 Flexline valve station, 25 mm, ASME B 16.11
