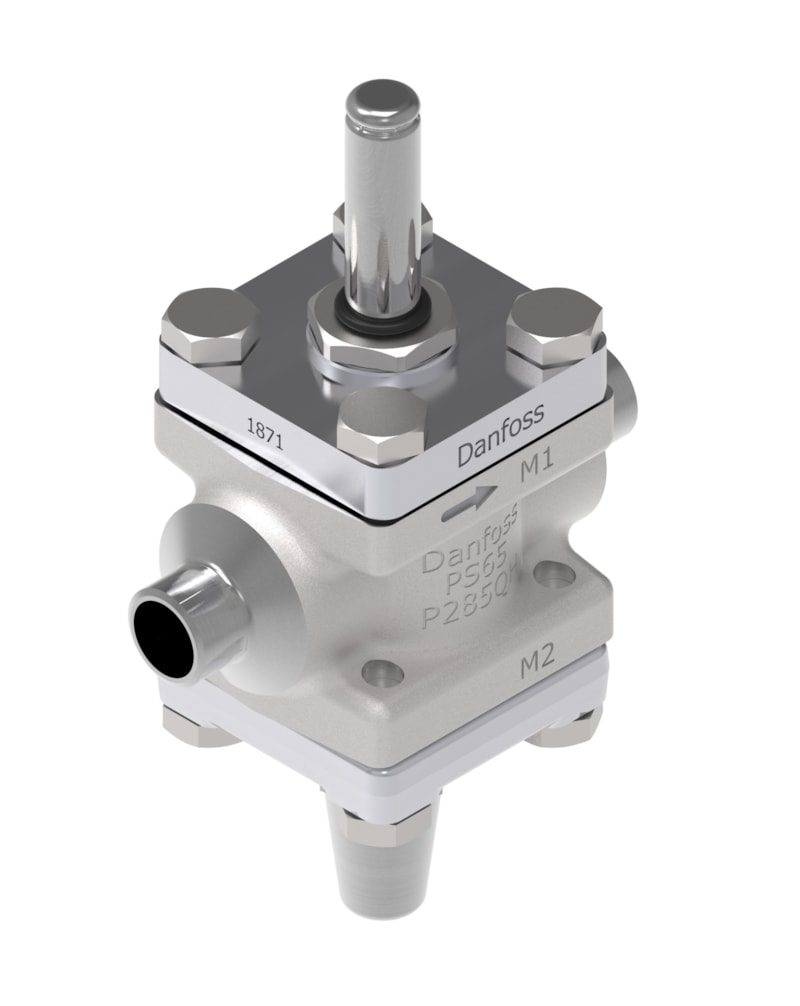

Danfoss ICF 20-2-121 carbon steel valve station, 22 mm, EN 1254-5
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-2-121 Flexline carbon steel valve station (code 027L3811). The ICF Flexline valve station combines several refrigeration control functions in a single carbon steel housing, replacing a string of separately-mounted stop, filter, solenoid, regulating and motor-operated valves with one welded-in station. This is a 2-function-module (ICF 20-2) configuration with 22 mm brazing end connections to EN 1254-5. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. Applicable to HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) in pumped-liquid, liquid-injection and hot-gas lines. Supplied as a complete factory-assembled and pressure-tested station.
Technical Specifications
- Type
- ICF 20-2-121 Flexline carbon steel valve station
- Code number
- 027L3811
- Module count
- 2 function modules (ICF 20-2)
- Connection size
- 22 mm
- Connection type
- Brazing
- Connection standard
- EN 1254-5
- Housing and module material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Applicable refrigerants
- HCFC, non-flammable HFC, R717 (ammonia), R744 (CO2)
- Weight
- net weight 2.58 kg, gross weight 3.051 kg
- Approvals
- EAC, TUV, UL
- EAN
- 5702424545031
- Net weight
- 2.58 Kilogram
- Product group
- Multifunction valves
- Approval
- EAC
- Body material
- Steel
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection Code
- (3001:X:22)
- Connection material
- Steel
- Connection size [in]
- 7/8 in
- Connection size [mm]
- 22 mm
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Solenoid valve
- Module 1 type
- ICFE 20
- Module 2
- Manual opening
- Module 2 type
- ICFO 20
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1234yf
- Surface coating
- Zn (TLP)
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-20-2-22ZEXOXXXXXXXXX0LAX
- UL mark
- Yes
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
2-module ICF carbon steel valve station, 22 mm brazing connection to EN 1254-5. Confirm the configuration designation (ICF 20-2-121) and connection size/standard before ordering; the stainless-steel ICF SS line and the other connection-standard variants are separate code numbers.
