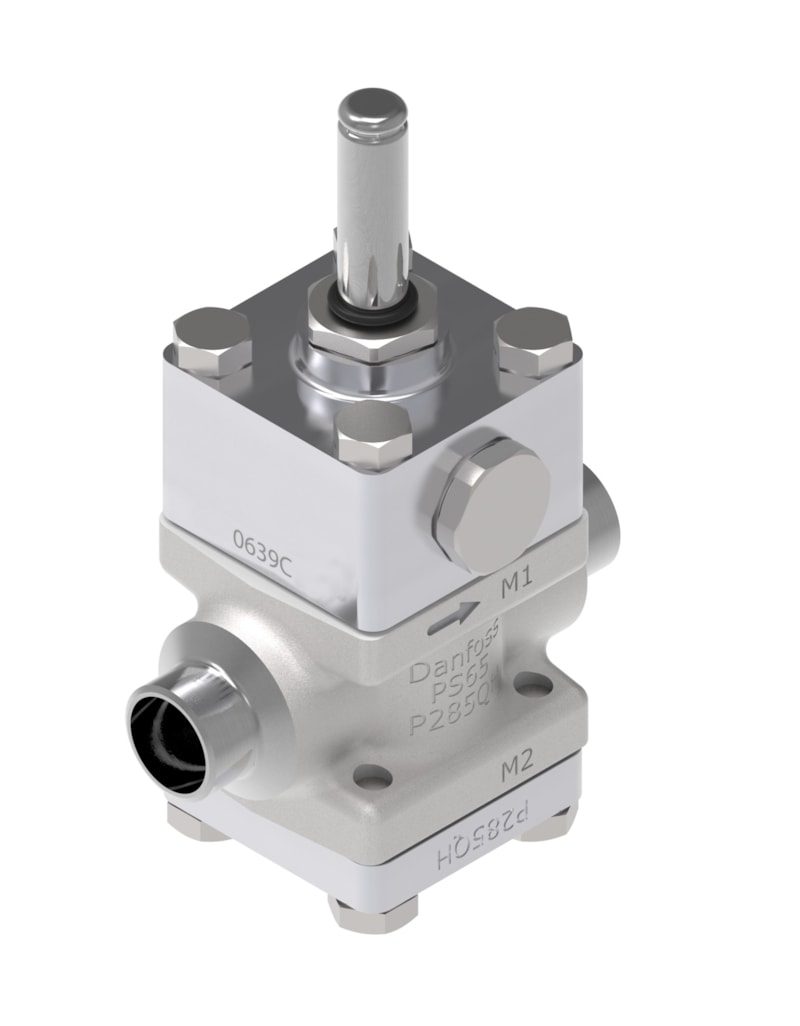

Danfoss ICF 20-2-121H carbon steel valve station, 22 mm, EN 1254-5 (code 027L3812)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 20-2-121H Flexline carbon steel valve station (code 027L3812). The ICF Flexline valve station combines several refrigeration control functions in a single carbon steel housing, replacing a string of separately-mounted stop, filter, solenoid, regulating and motor-operated valves with one welded-in station. This is a 2-function-module (ICF 20-2) configuration with 22 mm brazing end connections to EN 1254-5. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. Applicable to HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) in pumped-liquid, liquid-injection and hot-gas lines. Supplied as a complete factory-assembled and pressure-tested station.
Specifications
- Part number
- 027L3812
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 C
Compatibility
2-module ICF carbon steel valve station, 22 mm brazing connection to EN 1254-5. Confirm the configuration designation (ICF 20-2-121H) and connection size/standard before ordering; the stainless-steel ICF SS line and the other connection-standard variants are separate code numbers.
Approvals
