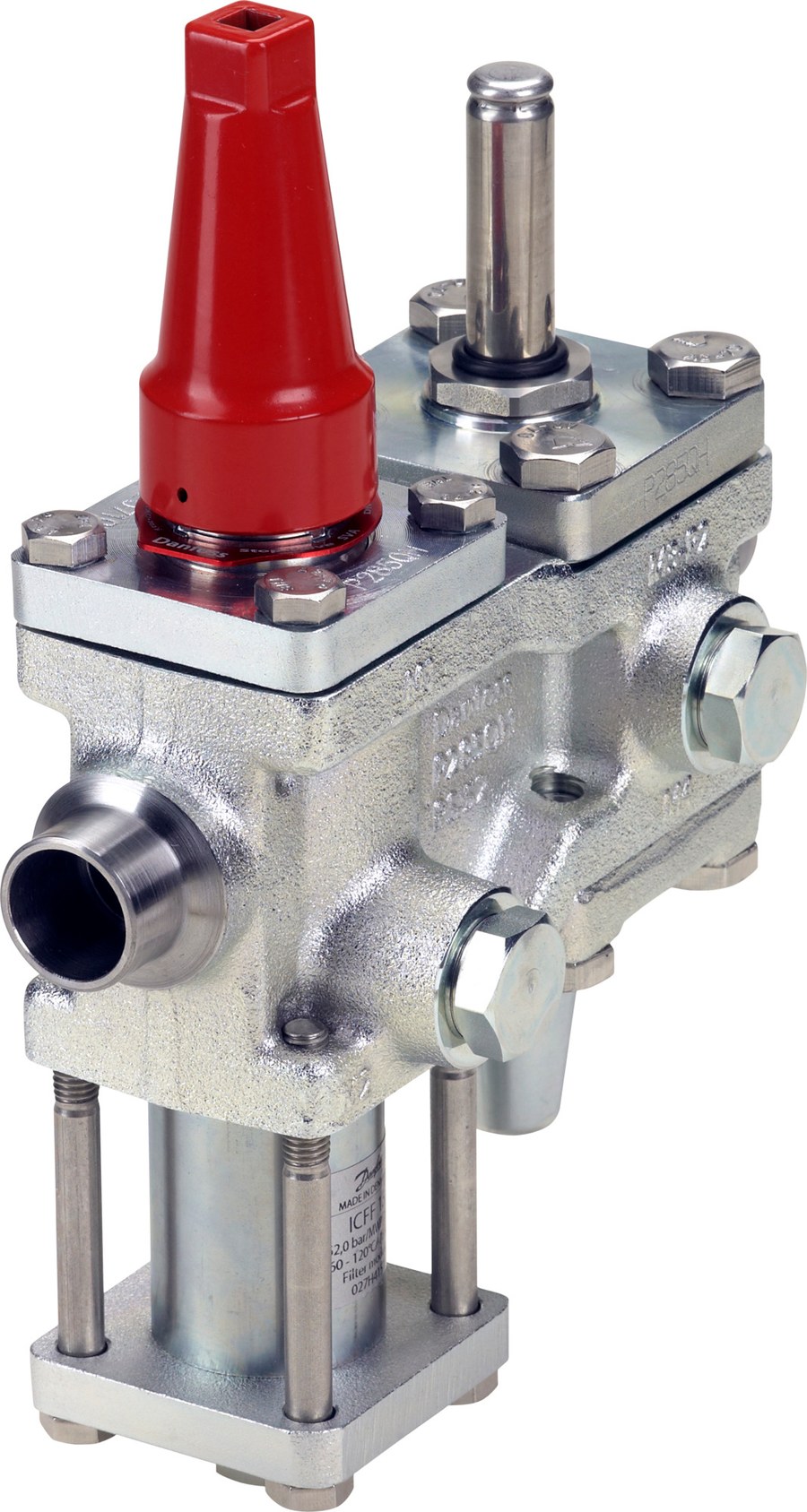

Danfoss ICF 15-4-8 Flexline valve station, 22 mm, ANSI B 16.22
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 15-4-8 Flexline valve station (code 027L4536). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20), Manual opening (ICFO 20). Connection size 22 mm, connection standard ANSI B 16.22 (soldering). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 15-4-8 Flexline valve station
- Code number
- 027L4536
- Connection size
- 22 mm
- Connection standard
- ANSI B 16.22
- Connection type
- Soldering
- Module configuration
- Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20), Manual opening (ICFO 20)
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 6.123 kg, gross weight 6.323 kg
- Approvals
- EAC, UL
- EAN
- 5702428887380
- Net weight
- 6.123 Kilogram
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 7/8 in
- Connection size [mm]
- 22 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 450 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 15
- Module 2
- Filter
- Module 2 type
- ICFF 15
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 20
- Module 4
- Manual opening
- Module 4 type
- ICFO 20
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port placement
- P1-P2
- Side port quantity [pc]
- 2 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-15-4-22XSYFYEXOXXXXX28XX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Standard
- ANSI B 16.22
- Size / Series
- 22 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15-4-8 (Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20), Manual opening (ICFO 20)). The station bolts into a 22 mm line to ANSI B 16.22 (soldering); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
