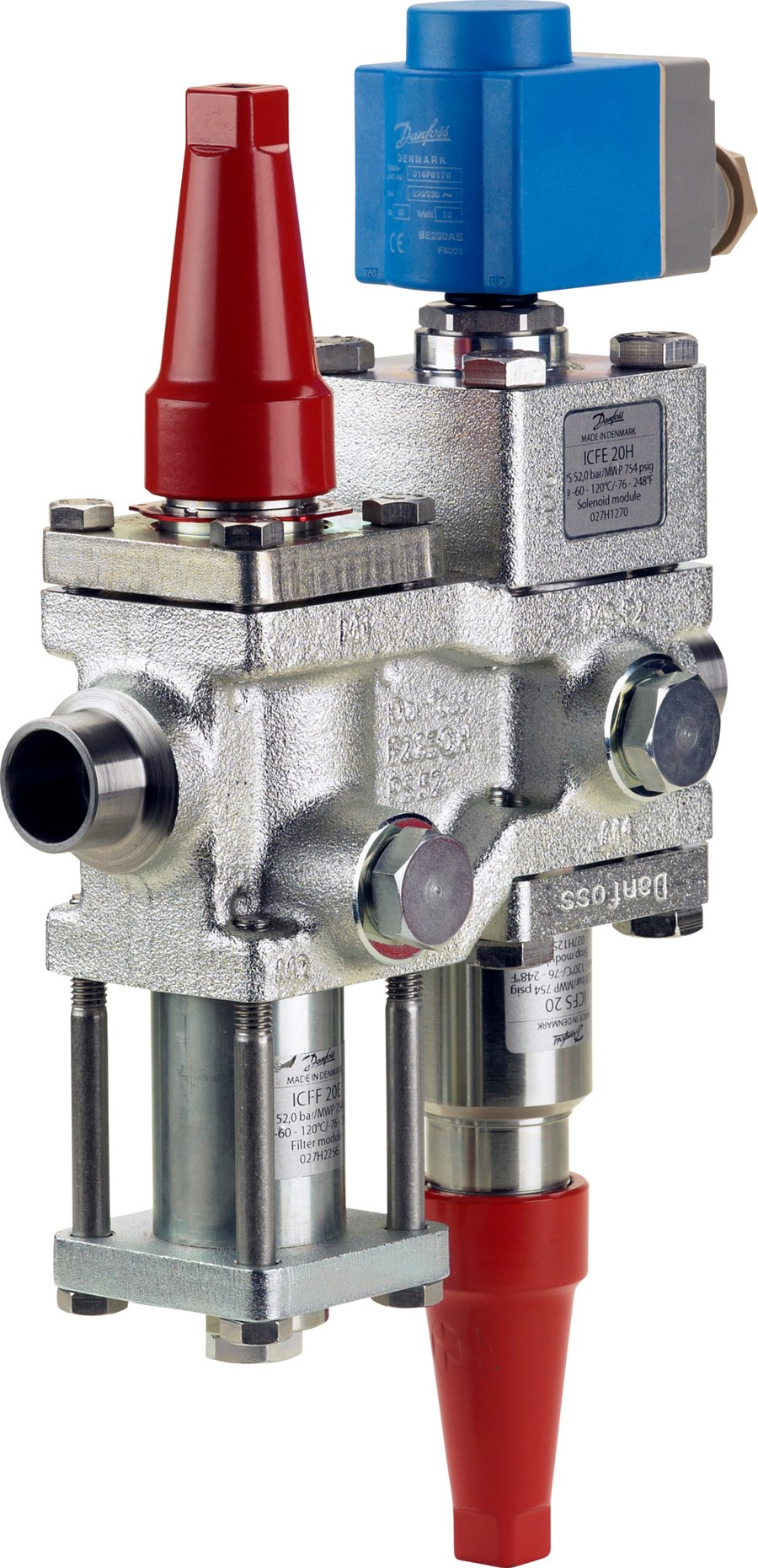

Danfoss ICF 15-4-10HRB Flexline valve station, 15 mm, ANSI B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 15-4-10HRB Flexline valve station (code 027L4530). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20H), Manual regulating valve (ICFR 20B). Connection size 15 mm, connection standard ANSI B 16.11 (socket weld). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 15-4-10HRB Flexline valve station
- Code number
- 027L4530
- Connection size
- 15 mm
- Connection standard
- ANSI B 16.11
- Connection type
- Socket weld
- Module configuration
- Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20H), Manual regulating valve (ICFR 20B)
- Body material
- Steel
- Surface coating
- Zn 12TLP
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 7.164 kg, gross weight 7.784 kg
- Approvals
- EAC, UL
- EAN
- 5702428887434
- Net weight
- 7.164 Kilogram
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection size [in]
- 1/2 in
- Connection size [mm]
- 15 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 450 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 15
- Module 2
- Filter
- Module 2 type
- ICFF 15
- Module 3
- Solenoid valve
- Module 3 type
- ICFE20H
- Module 4
- Manual regulating valve
- Module 4 type
- ICFR20B
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port placement
- P1-P2
- Side port quantity [pc]
- 2 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-15-4-15SSYFYEHRBXXXX2AXX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Standard
- ANSI B 16.11
- Size / Series
- 15 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15-4-10HRB (Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20H), Manual regulating valve (ICFR 20B)). The station bolts into a 15 mm line to ANSI B 16.11 (socket weld); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 15-4-8 Flexline valve station, 20 mm, ASME B 36.10M SCHEDULE 80
027L4535
Danfoss

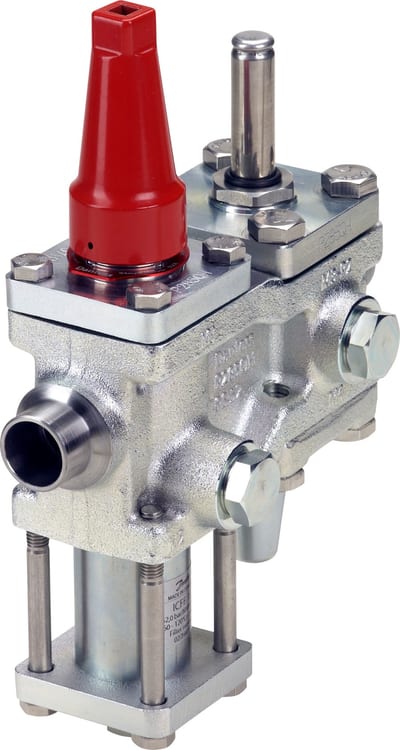

Danfoss ICF 15-4-8 Flexline valve station, 22 mm, ANSI B 16.22
027L4536
Danfoss
Danfoss ICF 15-4-8 Flexline valve station, 22 mm, EN 10220
027L4537
Danfoss

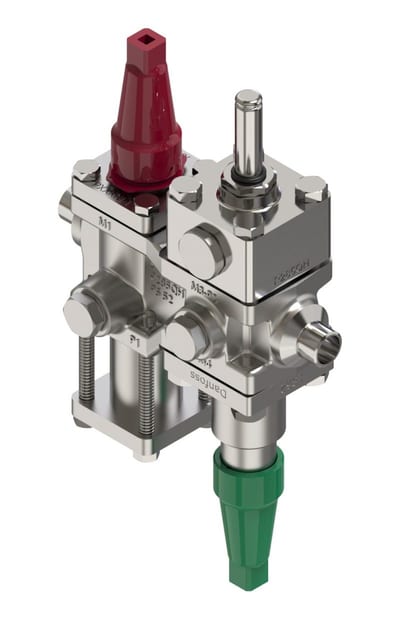

Danfoss ICF 15-4-18H Flexline valve station, 15 mm, EN 10220
027L4542
Danfoss

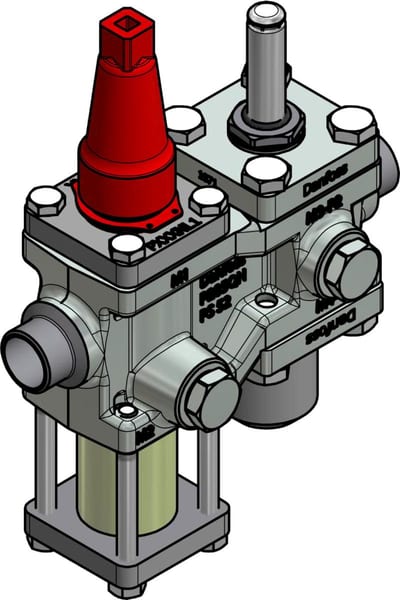

Danfoss ICF 15-4-11 Flexline valve station, 20 mm, EN 10220
027L4547
Danfoss

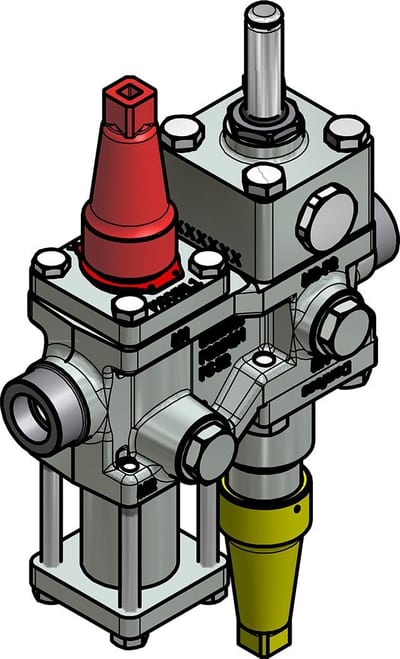

Danfoss ICF 15-4-10HRB Flexline valve station, 15 mm, EN 10220
027L4549
Danfoss

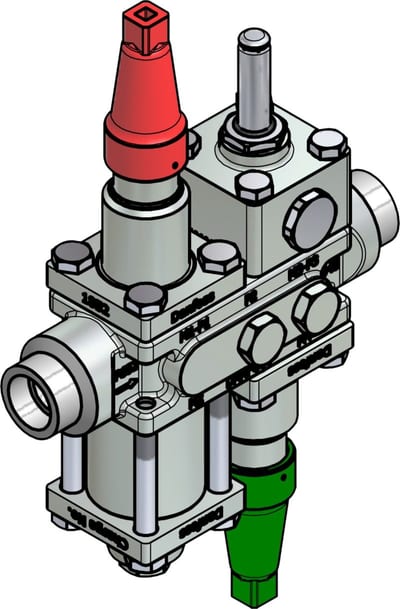

Danfoss ICF 15-4-18H Flexline valve station, 20 mm, EN 10220
027L4550
Danfoss

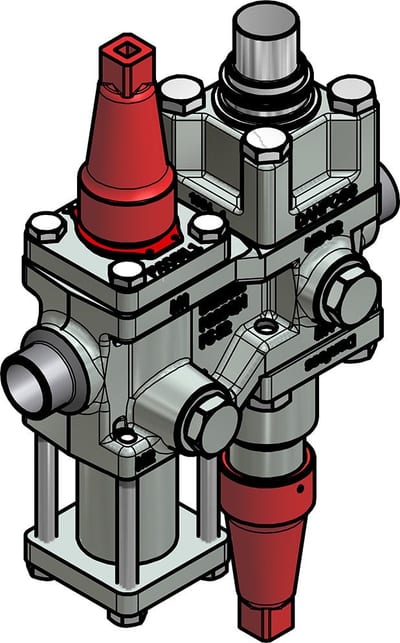

Danfoss ICF 15-4-14MA Flexline valve station, 15 mm, EN 10220
