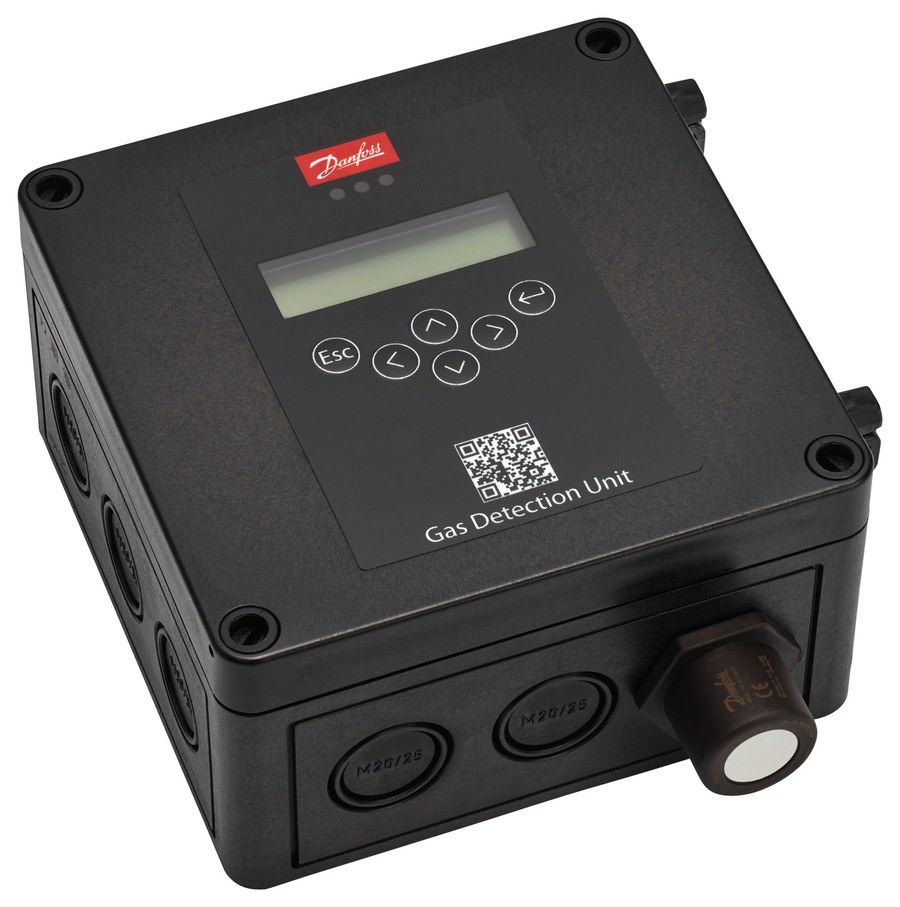

Danfoss GDA gas detection unit, ammonia (R717) electrochemical, 0–1000 ppm, LCD, wall-mount
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GDA fixed gas detection unit, code 148H6020, a factory-calibrated wall-mount detector for ammonia (R717) in refrigeration machinery rooms, cold stores and process plant. Electrochemical sensing element with a 0–1000 ppm measuring range and two-level alarm relays (pre-alarm 500 ppm, main alarm 900 ppm). On-board LCD display, flexible/remote-capable sensor for local annunciation. Supplied as a complete unit with mounting kit, cable gland and a factory calibration certificate. Supply 19–29 V DC. Integrates with Danfoss AK-SM system managers and standard alarm panels. HS 9027.10. OEM P/N 148H6020.
Technical Specifications
- Type
- Gas detection unit — GDA
- Code number
- 148H6020
- Detected gas
- ammonia (R717)
- Sensor technology
- electrochemical
- Measuring range
- 0–1000 ppm
- Pre-alarm (low) set point
- 500 ppm
- Main alarm (high) set point
- 900 ppm
- Local annunciation
- LCD display, flexible/remote-capable sensor
- Supply voltage
- 19–29 V DC
- Operating temperature
- -20 to +50 °C
- Enclosure
- wall-mount, includes mounting kit and cable gland
- Supplied with
- factory calibration certificate
- Approvals
- EU RoHS; China RoHS
- EAN
- 5714279919837
- Net weight
- 0.485 Kilogram
- Product group
- Sensors
- Alarmlimits high [ppm] sensor1
- 900 ppm
- Alarmlimits low [ppm] sensor1
- 500 ppm
- China RoHS compliance
- Yes
- Division
- 40
- Equipment
- LCD Display
- EU RoHS compliance
- Yes
- Gas detecting sensor version
- Premium Flex
- Parts included
- Cable gland
- PFAS content [Yes/No]
- No
- Power consumption [A]
- 0.21 A
- REACH Candidate List substances
- No
- Refrig. range [ppm] sensor1 [max]
- 1000 ppm
- Refrig. range [ppm] sensor1 [min]
- 0 ppm
- Refrigerants
- R717
- Relative humidity (RH) [%] [max]
- 90 %
- Relative humidity (RH) [%] [min]
- 15 %
- Response delay [s]
- 0 s
- Sensor 1 type
- Electrochemical
- Supply voltage [V] DC [max]
- 29 V
- Supply voltage [V] DC [min]
- 19 V
- Temperature range [°C] [max]
- 50 °C
- Temperature range [°C] [min]
- -20 °C
- Temperature range [°F] [max]
- 122 °F
- Temperature range [°F] [min]
- -4 °F
Standards & Compliance
- Temperature Range
- -20 to +50 °C
- HS Code
- 9027.10
Compatibility & Fitment
Confirm the target gas (ammonia (R717)), detection range (0–1000 ppm) and supply voltage (19–29 V DC) match the installation before ordering; sensor element is gas-specific and factory-calibrated. Alarm set points 500/900 ppm are the Danfoss defaults; display-equipped GD versions allow the thresholds to be reconfigured.
