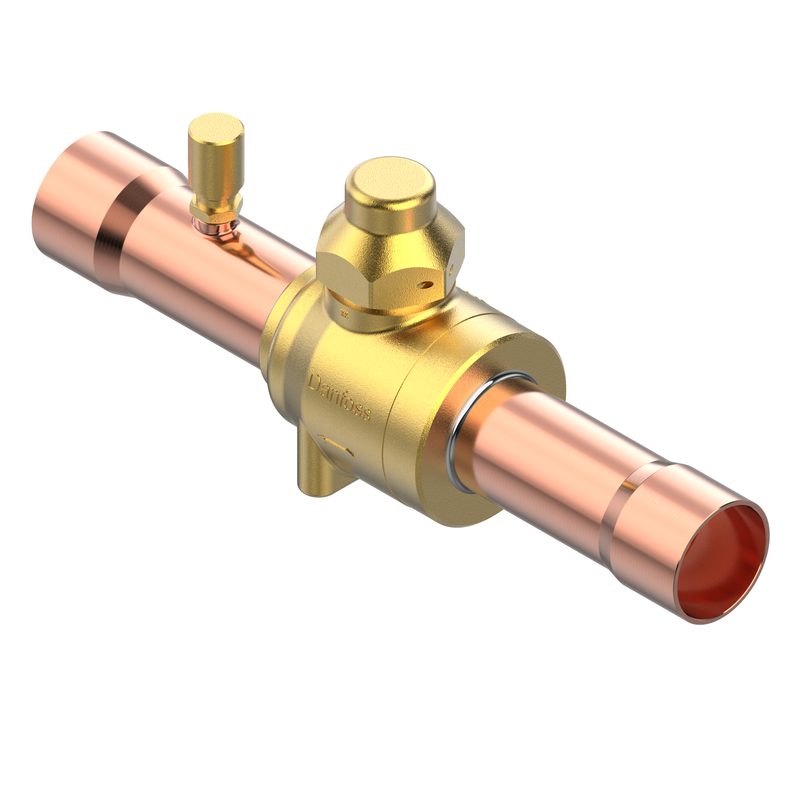

Danfoss GBC E 28S Shut-off Ball Valve 28 mm Solder ODF with Access Port
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC E 28s shut-off (stop) ball valve, code 009L7063: a straightway two-way brass ball valve for commercial air-conditioning and refrigeration lines. Bi-directional flow, solder, ODF, 28 mm, inlet and outlet. Integral access (charging) port. Maximum working pressure 45 bar (650 psig); media temperature -40 °C to 100 °C. Brass body with copper tube connections and a wire-seal cap. Approved C UL US Listed, CE, EAC. Technical data quoted verbatim from store.danfoss.com (code 009L7063).
Technical Specifications
- Brand
- Danfoss
- Part number
- 009L7063
- Model
- GBC E 28s shut-off (stop) ball valve, with access (charging) port
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-directional (valve orientation is unimportant)
- Connection
- Solder, ODF, 28 mm, inlet and outlet
- Access port
- Yes
- Max working pressure (PS/MWP)
- 45 bar (650 psig)
- Media temperature range
- -40 °C to 100 °C (-40 °F to 212 °F)
- Kv
- 62.25 m³/h
- Cv
- 71.96 gal/min
- Net weight
- 0.897 kg
- Gross weight
- 1.064 kg
- Materials
- Brass body; copper tube connections; one-piece wire-seal cap
- PED category
- Art. 4, par. 3 (fluid groups 1 and 2)
- Approvals
- C UL US Listed, CE, EAC
- Packing
- 5 pc per multi-pack
- EAN
- 5702428007849
- Refrigerant compatibility
- R1234yf R1234ze(E) R134a R22/R407C R290 R32 R404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R515B R516A R600 R600a R1270
Standards & Compliance
- Standard
- EN 12284
- Size / Series
- 28 mm
- Material
- Brass body; copper tube connections
- Pressure Rating
- 45 bar (650 psig) max working pressure
- Temperature Range
- -40 °C to 100 °C
- Classification / Approval
- C UL US Listed, CE, EAC
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss GBC E 28s fits 28 mm ODF solder (copper) connections. Verify the tube dimension (metric mm copper, EN 12735), the connection form (ODF cup / ODM spigot) and whether an access port is required before ordering.
