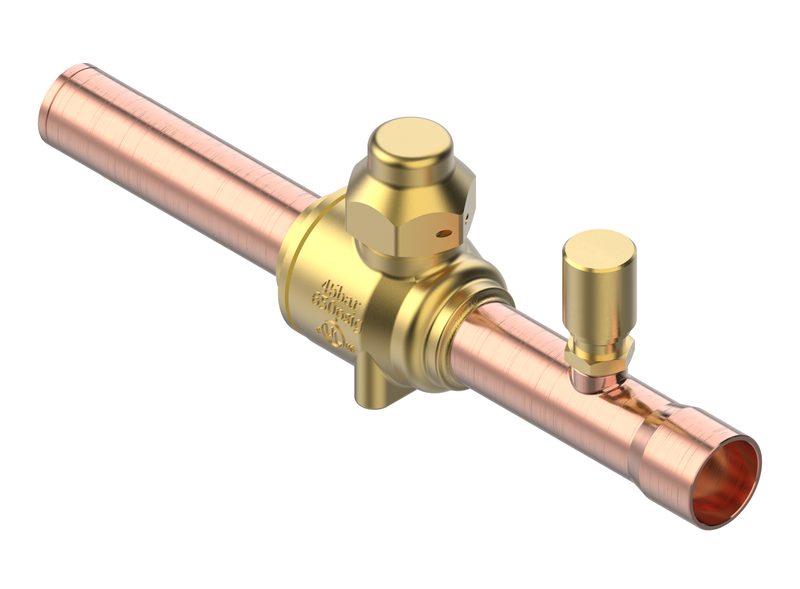

Danfoss GBC 16S Shut-off Ball Valve 5/8 in (16 mm) Solder ODM/ODF with Access Port
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC 16s shut-off (stop) ball valve, code 009L7084: a straightway two-way brass ball valve for commercial air-conditioning and refrigeration lines. Bi-directional flow, solder, inlet ODM / outlet ODF, 5/8 in (16 mm). Integral access (charging) port. Maximum working pressure 45 bar (650 psig); media temperature -40 °C to 100 °C. Brass body with copper tube connections and a wire-seal cap. Approved C UL US Listed, CE, EAC. Technical data quoted verbatim from store.danfoss.com (code 009L7084).
Technical Specifications
- Brand
- Danfoss
- Part number
- 009L7084
- Model
- GBC 16s shut-off (stop) ball valve, with access (charging) port
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-directional (valve orientation is unimportant)
- Connection
- Solder, inlet ODM / outlet ODF, 5/8 in (16 mm)
- Access port
- Yes
- Max working pressure (PS/MWP)
- 45 bar (650 psig)
- Media temperature range
- -40 °C to 100 °C (-40 °F to 212 °F)
- Max media temperature, oil-free
- 80 °C
- Kv
- 15.66 m³/h
- Cv
- 18.1 gal/min
- Net weight
- 0.244 kg
- Gross weight
- 0.319 kg
- Body material
- Brass; connection material: copper
- Equipment
- Cap w. wire seal
- Parts included
- Schrader valve
- Panel mounting option
- M4 × 0.7 (2 PC)
- Fluid group
- 1 2
- PED category
- Art. 4, par. 3
- Approvals
- C UL US Listed, CE, EAC
- Packing
- 25 pc per multi-pack
- EAN
- 5702424502942
- Refrigerant compatibility
- R1234yf R1234ze(E) R134a R22/R407C R290 R32 R404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R515B R516A R600 R600a R1270
- Oil-free refrigerants
- R1234ze(E) R134a R513A R515B R516A
Standards & Compliance
- Standard
- EN 12284
- Size / Series
- 5/8 in
- Material
- Brass body; copper tube connections
- Pressure Rating
- 45 bar (650 psig) max working pressure
- Temperature Range
- -40 °C to 100 °C
- Classification / Approval
- C UL US Listed, CE, EAC
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss GBC 16s fits 5/8 in ODM/ODF solder (copper) connections. Verify the tube dimension (inch copper, ANSI B16.22), the connection form (ODF cup / ODM spigot) and whether an access port is required before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss GBC 28S Shut-off Ball Valve 1 1/8 in Solder ODF/ODM with Access Port
009L7097
Danfoss
Danfoss GBC 28S Shut-off Ball Valve 1 1/8 in Solder ODM with Access Port
009L7100
Danfoss

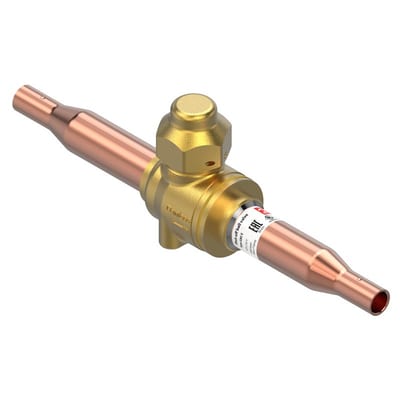

Danfoss GBC 6S E Shut-off Ball Valve 1/4 in Solder ODF
009L9020
Danfoss

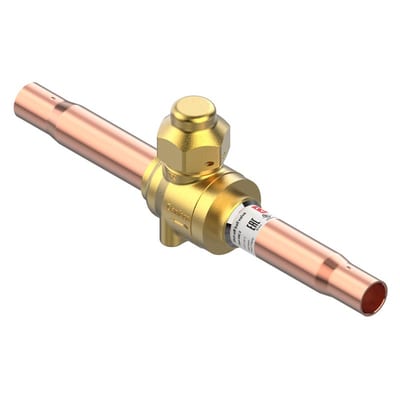

Danfoss GBC 10S E Shut-off Ball Valve 3/8 in Solder ODF
009L9021
Danfoss

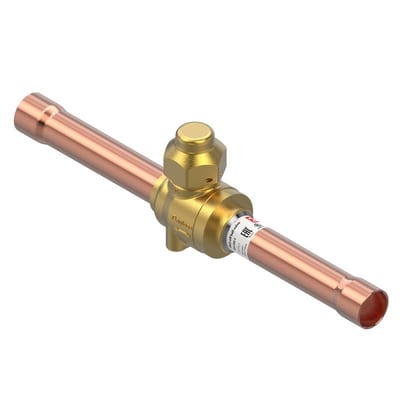

Danfoss GBC 12S E Shut-off Ball Valve 1/2 in Solder ODF
009L9022
Danfoss

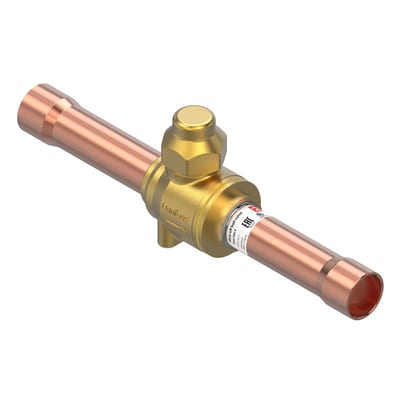

Danfoss GBC 16S E Shut-off Ball Valve 5/8 in (16 mm) Solder ODF
009L9023
Danfoss

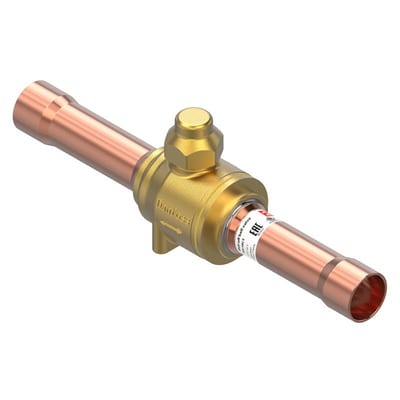

Danfoss GBC 18S E Shut-off Ball Valve 3/4 in Solder ODF
009L9024
Danfoss

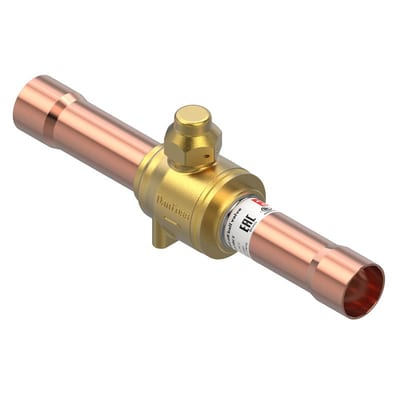

Danfoss GBC 22S E Shut-off Ball Valve 7/8 in (22 mm) Solder ODF
