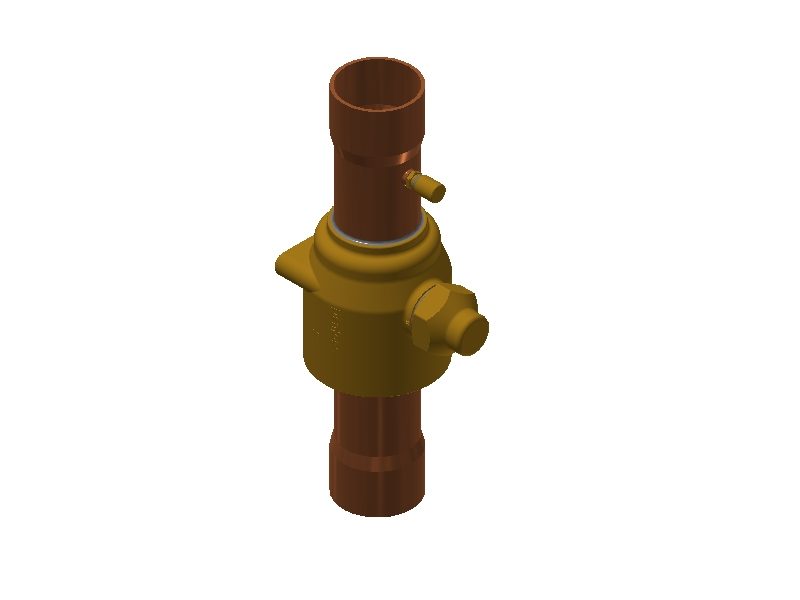

Danfoss GBC 54S Shut-off Ball Valve 2 1/8 in (54 mm) Solder ODF with Access Port
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC 54s shut-off (stop) ball valve, order code 009G7059: a straightway two-way brass ball valve with an integral access (charging) port for commercial air-conditioning and refrigeration lines. Bi-directional flow, solder, ODF, 2 1/8 in (54 mm), inlet and outlet. Maximum working pressure 45 bar (650 psig); media temperature -40 °C to 121 °C. Brass body with copper tube connections, Schrader access valve and a wire-seal cap. 009G is the legacy Danfoss order-code series for the GBC range. Approved C UL US Listed, CE, EAC. Technical data quoted verbatim from store.danfoss.com (code 009G7059).
Technical Specifications
- Brand
- Danfoss
- Part number
- 009G7059 (legacy order code; current-series equivalent under 009L)
- Model
- GBC 54s shut-off (stop) ball valve, with access (charging) port
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-directional (valve orientation is unimportant)
- Connection
- Solder, ODF, 2 1/8 in (54 mm), inlet and outlet
- Access port
- Yes (Schrader valve)
- Max working pressure (PS/MWP)
- 45 bar (650 psig)
- Media temperature range
- -40 °C to 121 °C (-40 °F to 250 °F)
- Kv
- 240.11 m³/h
- Cv
- 277.57 gal/min
- Net weight
- 4.225 kg
- Gross weight
- 4.747 kg
- Body material
- Brass; connection material: copper
- Equipment
- Cap w. wire seal
- Parts included
- Schrader valve
- Fluid group
- 1 2
- PED category
- Art. 4, par. 3
- Approvals
- C UL US Listed, CE, EAC
- Packing
- 2 pc per multi-pack
- EAN
- 5702428065887
- Refrigerant compatibility
- R1234ze(E) R134a R22/R407C R404A/R507A R407A R407F R410A R448A R449A R450A R452A R513A
Standards & Compliance
- Standard
- EN 12284
- Size / Series
- 2 1/8 in
- Material
- Brass body; copper tube connections
- Pressure Rating
- 45 bar (650 psig) max working pressure
- Temperature Range
- -40 °C to 121 °C
- Classification / Approval
- C UL US Listed, CE, EAC
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss GBC 54s fits 2 1/8 in ODF solder (copper) connections (inch copper, ANSI B16.22). Verify the tube dimension, the connection form (ODF cup) and that an access port is required before ordering. Legacy 009G code — the equivalent current valve is listed under the 009L series.
Product Documentation
More from Danfoss
Danfoss
Danfoss GBC 6S Shut-off Ball Valve 6 mm Solder ODF with Access Port
009G7060
Danfoss
Danfoss GBC 10S Shut-off Ball Valve 10 mm Solder ODF with Access Port
009G7061
Danfoss

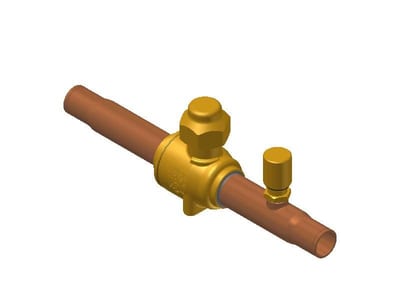

Danfoss GBC 12S Shut-off Ball Valve 12 mm Solder ODF with Access Port
009G7062
Danfoss

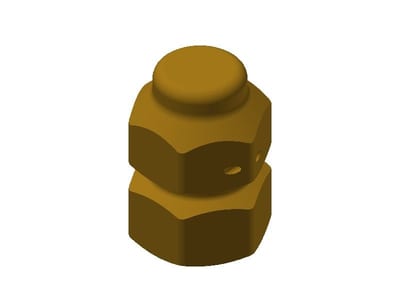

Danfoss GBC Ball-Valve Repair Kit — Allen Key for GBC 6S–22S (21 mm A/F)
009G7011
Danfoss

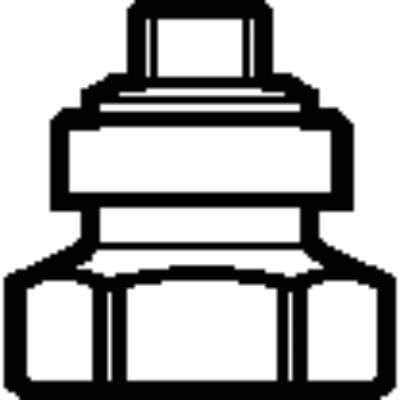

Danfoss GBC Ball-Valve Repair Kit — Wrench for GBC 6S–22S (21 mm A/F)
009G7012
Danfoss

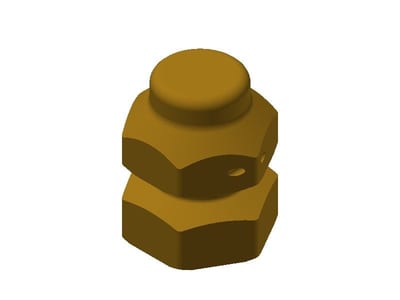

Danfoss GBC Ball-Valve Repair Kit — Allen Key for GBC 25S–35S (31 mm A/F)
