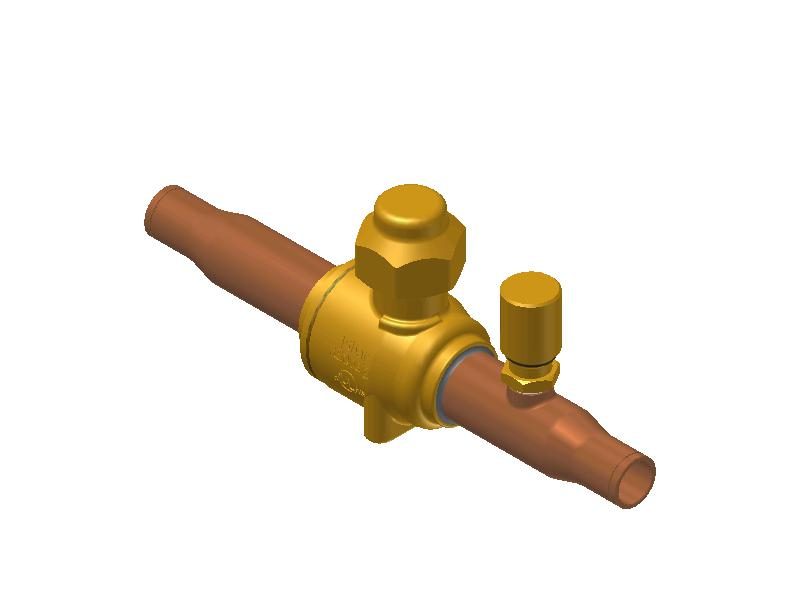

Danfoss GBC 10S Shut-off Ball Valve 10 mm Solder ODF with Access Port
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC 10s shut-off (stop) ball valve, order code 009G7061: a straightway two-way brass ball valve with an integral access (charging) port for commercial air-conditioning and refrigeration lines. Bi-directional flow, solder, ODF, 10 mm, inlet and outlet. Maximum working pressure 45 bar (650 psig); media temperature -40 °C to 150 °C. Brass body with copper tube connections, Schrader access valve and a wire-seal cap. 009G is the legacy Danfoss order-code series for the GBC range. Approved C UL US Listed, CE, EAC. Technical data quoted verbatim from store.danfoss.com (code 009G7061).
Technical Specifications
- Brand
- Danfoss
- Part number
- 009G7061 (legacy order code; current-series equivalent under 009L)
- Model
- GBC 10s shut-off (stop) ball valve, with access (charging) port
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-directional (valve orientation is unimportant)
- Connection
- Solder, ODF, 10 mm, inlet and outlet
- Access port
- Yes (Schrader valve)
- Max working pressure (PS/MWP)
- 45 bar (650 psig)
- Media temperature range
- -40 °C to 150 °C (-40 °F to 300 °F)
- Kv
- 7.52 m³/h
- Cv
- 8.69 gal/min
- Net weight
- 0.235 kg
- Gross weight
- 0.292 kg
- Body material
- Brass; connection material: copper
- Equipment
- Cap w. wire seal
- Parts included
- Schrader valve
- Fluid group
- 1 2
- PED category
- Art. 4, par. 3
- Approvals
- C UL US Listed, CE, EAC
- Packing
- 25 pc per multi-pack
- EAN
- 5702428065764
- Refrigerant compatibility
- R1234ze(E) R134a R22/R407C R32 R404A/R507A R407A R407F R410A R448A R449A R450A R452A R513A
Standards & Compliance
- Standard
- EN 12284
- Size / Series
- 10 mm
- Material
- Brass body; copper tube connections
- Pressure Rating
- 45 bar (650 psig) max working pressure
- Temperature Range
- -40 °C to 150 °C
- Classification / Approval
- C UL US Listed, CE, EAC
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss GBC 10s fits 10 mm ODF solder (copper) connections (metric mm copper, EN 12735). Verify the tube dimension, the connection form (ODF cup) and that an access port is required before ordering. Legacy 009G code — the equivalent current valve is listed under the 009L series.
