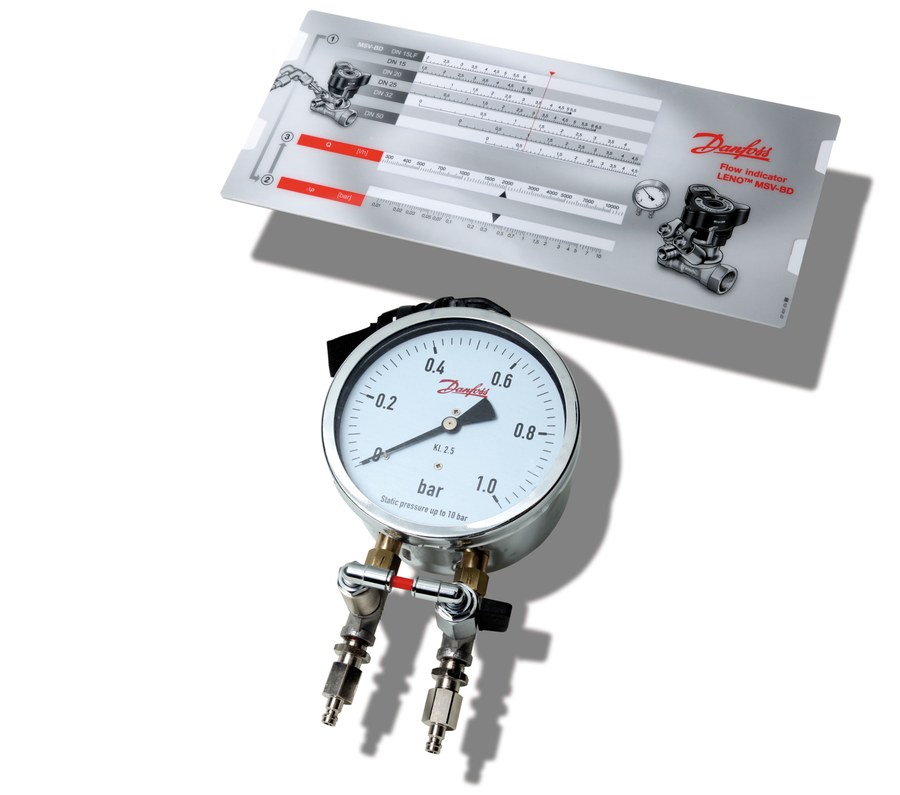

Danfoss Flow Indicator 0–1 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Flow Indicator (pressure test equipment), OEM order code 003L8310. Flow and pressure measuring device for heating, cooling and domestic-hot-water balancing measurements. Manufacturer description: Flow indicator, 0-1 bar, measuring device for flow and pressure measurements in heating, cooling and domestic hot water systems. max. differential pressure 1 bar, media/setting temperature -5 °C to 150 °C. EAN 5702420113456. HS 9026.20. Specifications quoted verbatim from store.danfoss.com (code 003L8310).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L8310
- Code number
- 003L8310
- Type
- Flow Indicator
- Product group
- Manual balancing
- Description
- Flow indicator, 0-1 bar, measuring device for flow and pressure measurements in heating, cooling and domestic hot water systems
- Product description
- Flow indicator 0-1 bar
- Gross weight
- 4.814 Kilogram
- Net weight
- 4.814 Kilogram
- Calibration
- When pointer is in wrong position
- Differential pressure range [bar] [Max]
- 1 bar
- Differential pressure range [bar] [Min]
- 0 bar
- Hysteresis (+/-) [%]
- 2.5 %
- Media temperature [°C] [Max]
- 150 °C
- Media temperature [°C] [Min]
- -5 °C
- Packing format
- Single pack
- Static pressure [bar]
- 10 KPa
- Weight [kg]
- 4.48 kg
- EAN
- 5702420113456
- HS code
- 9026.20 (instruments for measuring pressure)
Standards & Compliance
- Pressure Rating
- max. differential pressure 1 bar
- Temperature Range
- -5 °C to 150 °C
- HS Code
- 9026.20
Compatibility & Fitment
Genuine Danfoss part, order code 003L8310 (Manual balancing). Confirm the code and matching valve/actuator family against your Danfoss datasheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss AVDO Self-Acting Constant-Flow (Automatic Bypass) Valve DN 15, Angle, Threaded (003L6002)
Danfoss
Danfoss AVDO Self-Acting Constant-Flow (Automatic Bypass) Valve DN 15, Angle, Threaded (003L6003)
Danfoss
Danfoss AVDO Self-Acting Constant-Flow (Automatic Bypass) Valve DN 20, Angle, Threaded (003L6007)
Danfoss

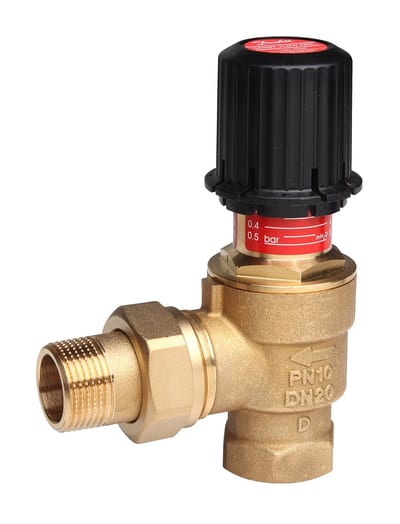

Danfoss AVDO Self-Acting Constant-Flow (Automatic Bypass) Valve DN 20, Angle, Threaded (003L6008)
Danfoss

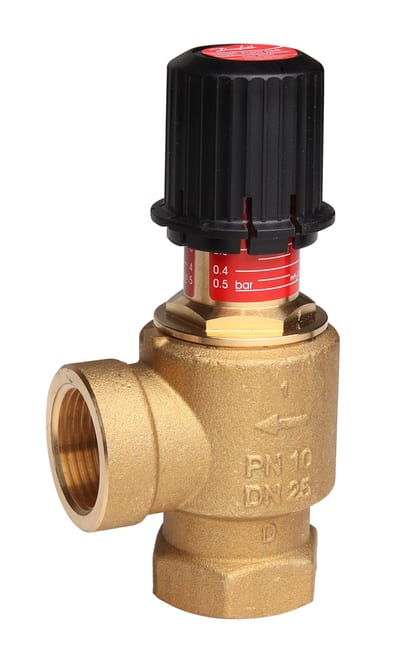

Danfoss AVDO Self-Acting Constant-Flow (Automatic Bypass) Valve DN 25, Angle, Threaded (003L6012)
Danfoss

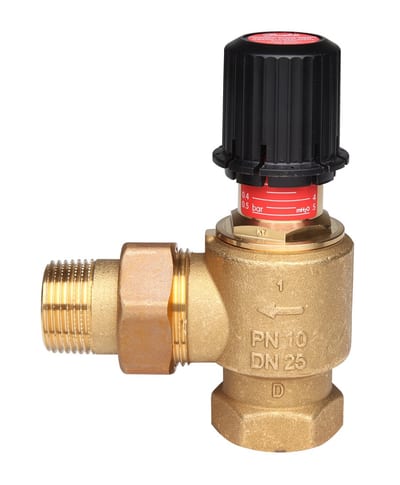

Danfoss AVDO Self-Acting Constant-Flow (Automatic Bypass) Valve DN 25, Angle, Threaded (003L6013)
Danfoss

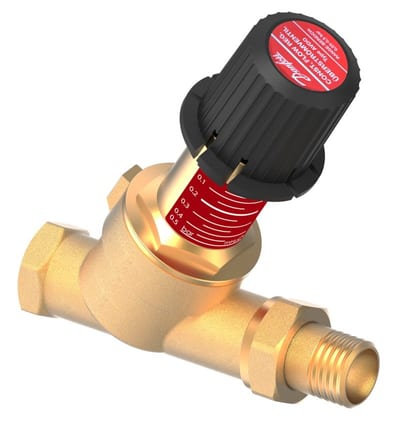

Danfoss AVDO Self-Acting Constant-Flow (Automatic Bypass) Valve DN 15, Straight, Threaded (003L6018)
Danfoss

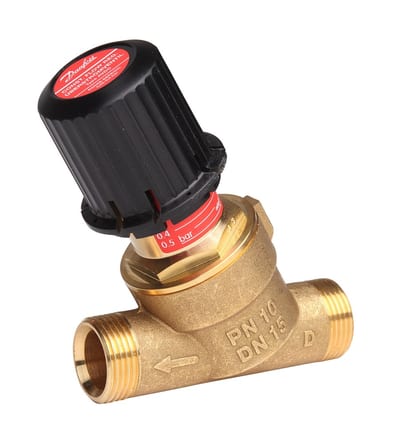

Danfoss AVDO Self-Acting Constant-Flow (Automatic Bypass) Valve DN 15, Straight, Threaded (003L6020)
