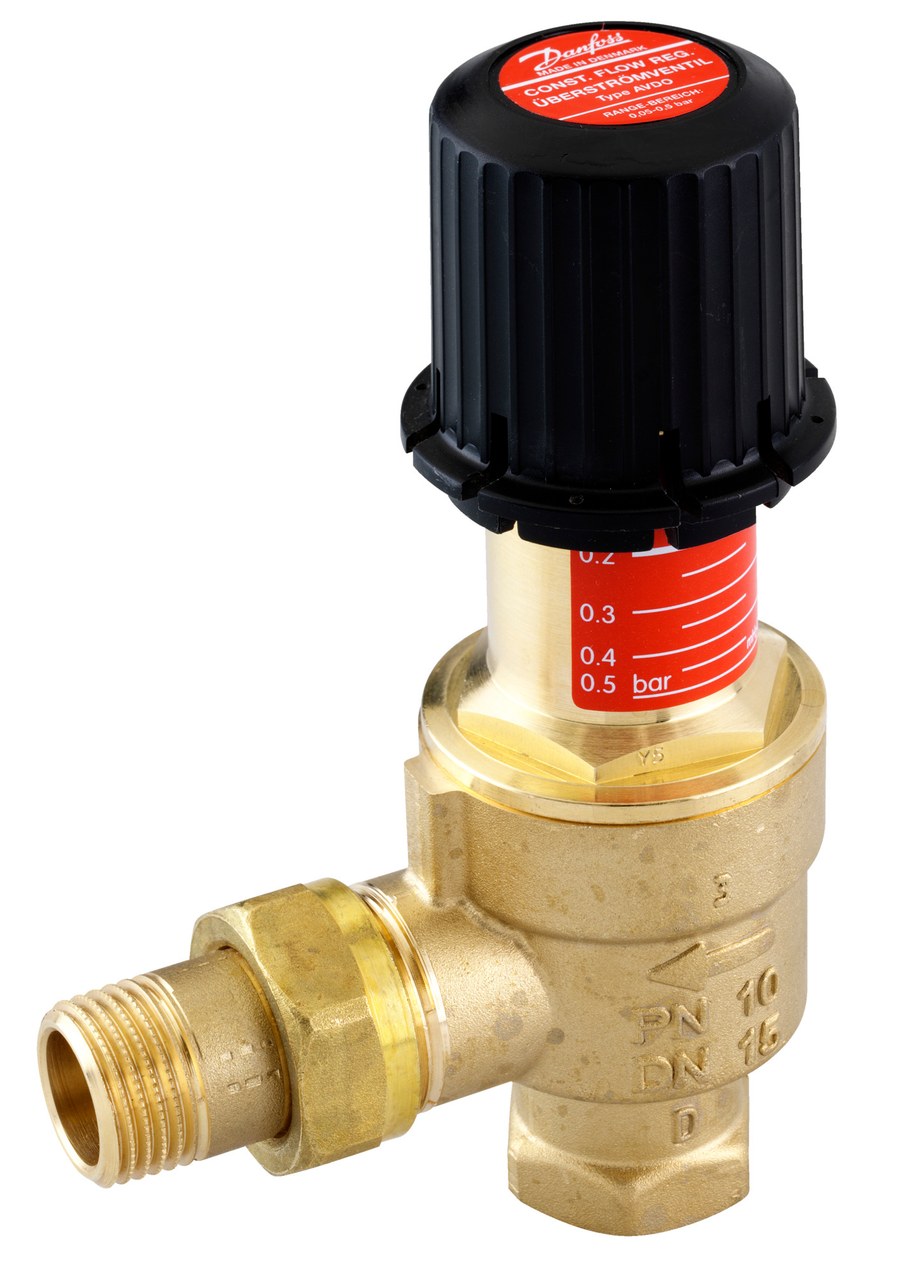

Danfoss AVDO Self-Acting Constant-Flow (Automatic Bypass) Valve DN 15, Angle, Threaded (003L6003)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVDO (balancing valves), OEM order code 003L6003. Self-acting constant-flow / automatic-bypass valve that holds a constant differential pressure across a bypass, protecting circulation pumps and maintaining minimum flow in heating systems without auxiliary power. Manufacturer description: Self-acting constant flow valve. connection/size DN 15, max. working pressure 10 bar; max. differential pressure 0.5 bar, media/setting temperature up to 120 °C. EAN 5702420017082. HS 8481.80. Specifications quoted verbatim from store.danfoss.com (code 003L6003).
Technical Specifications
- Brand
- Danfoss Part number: 003L6003 Code number: 003L6003 Type: AVDO Product group: Automatic Bypass Control Description: Self-acting constant flow valve Gross weight: 0.706 Kilogram Net weight: 0.706 Kilogram Connection size in: Rp 1/2 Connection size out: R 1/2 Connection types: Threaded Connections: 1/2" Design: Angle Differential pressure range [bar] [Max]: 0.5 bar Flow temperature [°C] [Max]: 120 °C Inlet connection type: Internal thread Outlet connection type: External thread Setting [bar] [Max]: 0.5 bar Setting [bar] [Min]: 0.05 bar Valve size: DN 15 Working pressure [bar] [Max]: 10 bar EAN: 5702420017082 HS code: 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 15
- Pressure Rating
- max. working pressure 10 bar; max. differential pressure 0.5 bar
- Temperature Range
- up to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Genuine Danfoss part, order code 003L6003 (Automatic Bypass Control). Confirm the code, size (DN 15) and matching valve/actuator family against your Danfoss datasheet before ordering.
Product Documentation
