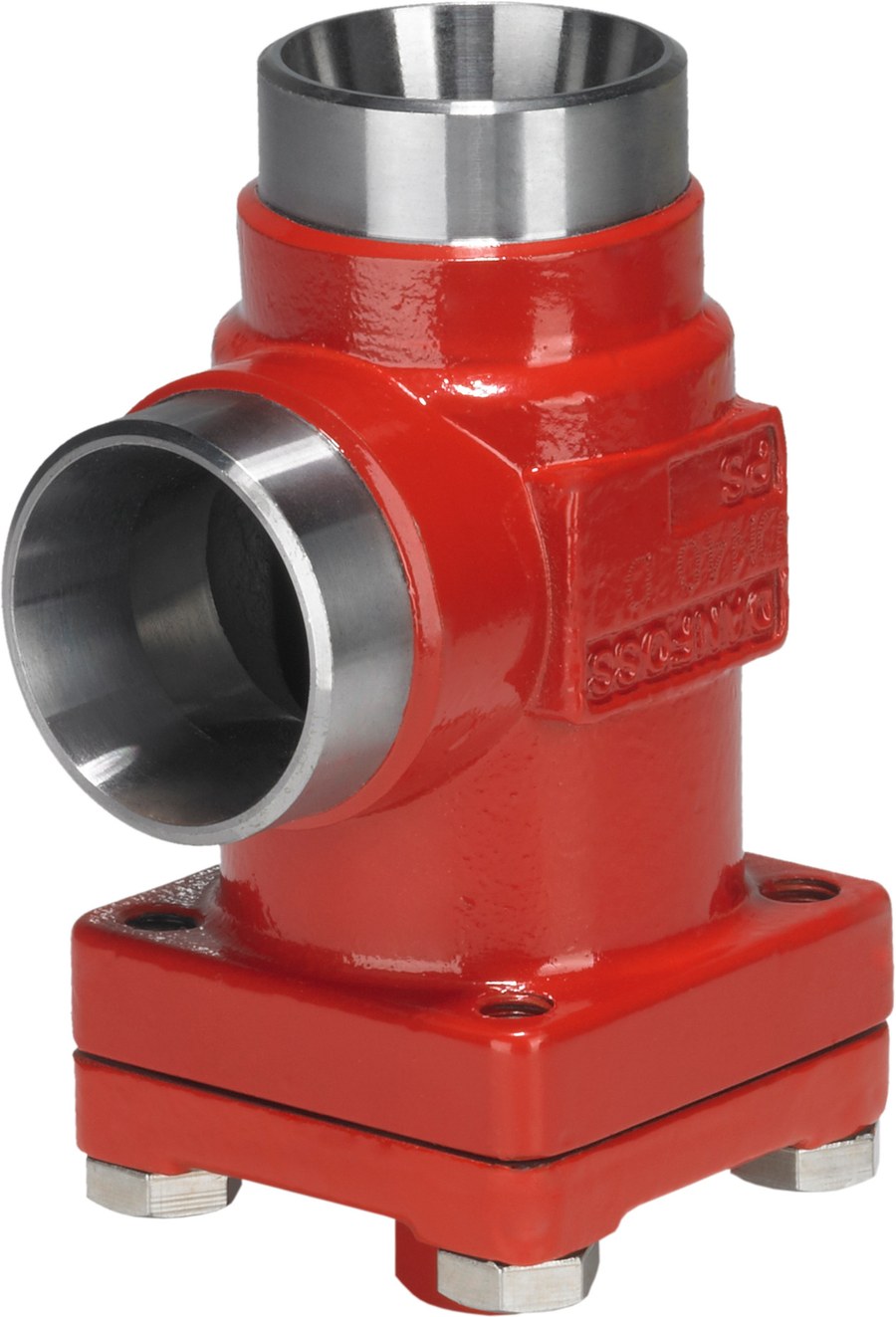

Danfoss FIA 32 angleway strainer housing, 32 mm (1 1/4 in) NPT thread ANSI/ASME B1.20.1, 52 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 32 strainer (filter) housing for the SVL Flexline industrial-refrigeration range, store code 148B5547, angleway body. The FIA holds a replaceable strainer insert that protects downstream components from dirt and weld slag during commissioning and operation; the insert is exchanged through a bolted cover. This code is nominal size 32 mm (1 1/4 in) with NPT thread connections to ANSI/ASME B1.20.1. Steel housing for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). With the µ100 plain insert the flow coefficient Kv is about 23 m3/h. The FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) is ordered separately. Specifications per Danfoss store code 148B5547. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- Strainer housing, FIA 32 (SVL Flexline)
- Code number
- 148B5547
- Series
- FIA (SVL Flexline)
- Nominal size
- 32 mm (1 1/4 in)
- Flow pattern
- Angleway
- Connection
- NPT thread (ANSI/ASME B1.20.1)
- Housing material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Flow coefficient Kv (with µ100 plain insert)
- ~23 m3/h
- Filter element
- separate FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) — not included
- Equipment
- bolted cover
- Conformity assessment
- PED 2014/68/EU, Category II (DN 32)
- Approvals
- CE
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428475891
- Net weight
- 1.915 Kilogram
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2020:P115:32)
- Connection material
- Steel
- Connection standard
- ANSI/ASME B1.20.1
- Cv value [gal/min] 100 plain
- 104.79 gal/min
- Cv value [gal/min] 100 pleated
- 128.56 gal/min
- Cv value [gal/min] 150 plain
- 101.27 gal/min
- Cv value [gal/min] 38 plain
- 112.27 gal/min
- Cv value [gal/min] 72 plain
- 108.75 gal/min
- Cv value [gal/min] 72 pleated
- 134.29 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- NPT
- Inlet Internal/External
- Internal
- Kv value [m3/h] µ100 plain
- 23 m³/h
- Kv value [m3/h] µ150 plain
- 23.8 m³/h
- Kv value [m3/h] µ150 pleated
- 29.2 m³/h
- Kv value [m3/h] µ250 plain
- 24.7 m³/h
- Kv value [m3/h] µ250 pleated
- 30.5 m³/h
- Kv value [m3/h] µ500 plain
- 25.5 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 1 1/4
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- NPT
- Outlet Internal/External
- Internal
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ANSI/ASME B1.20.1
- Size / Series
- 32 mm
- Material
- Steel
- Thread Standard
- ANSI/ASME B1.20.1
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA 32 strainer housing. Pair with a FIA INS strainer insert in the required micron rating (38/72/100/150/250/500, plain or pleated). EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off valves and REG regulating valves of the same nominal size.
