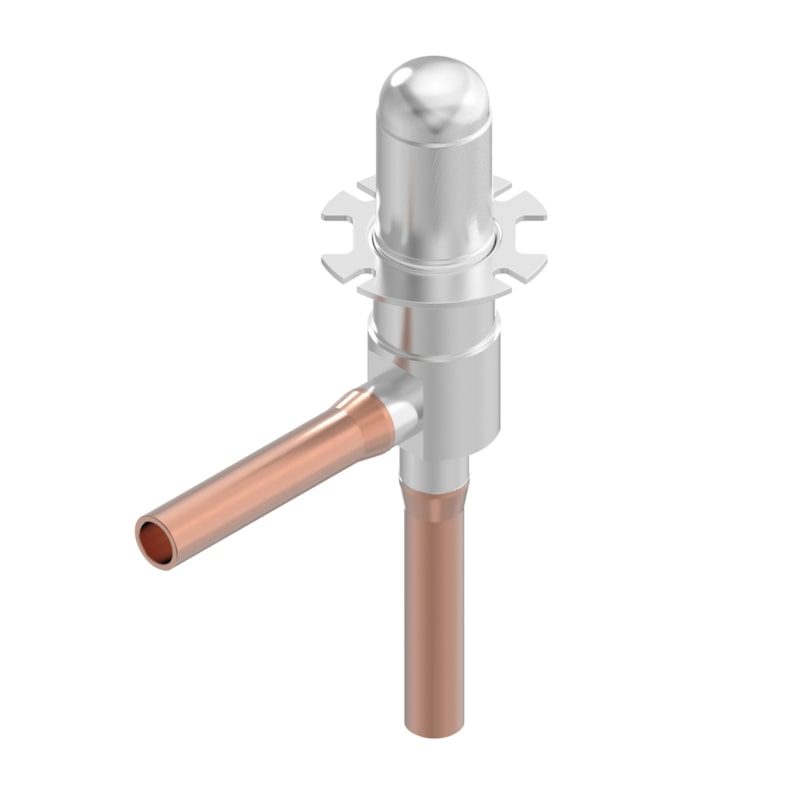

Danfoss ETS 5T14L electric expansion valve, R744 CO2, 1/4 in (6.35 mm) ODM solder, stepper, 140 bar MWP
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ETS 5T14L electric (stepper-motor) expansion valve for transcritical R744 (CO2) systems, code 034G6804. In-line valve with 1/4 in (6.35 mm) solder ODM inlet and outlet in Cu-plated stainless steel, 1.4 mm orifice, bi-flow with a linear flow characteristic. Permanent-magnet stepper motor (480 half steps) gives precise CO2 liquid/gas injection control for booster racks, ejector systems and CO2 heat pumps. Rated capacity 13.73 kW (3.9 TR) at R744 conditions. Max. working pressure 140 bar (2030 psig), MaxOPD 120 bar (1740 psig) forward and reverse. Refrigerant and ambient -40 to 80 °C. Driven by a Danfoss EKE-series driver (EKE 1A/1B/1C/100) or EIM 336, ordered separately. OEM P/N 034G6804.
Technical Specifications
- Type
- Electric expansion valve, ETS 5T14L (ETS 5T)
- Code number
- 034G6804
- Function
- stepper-motor expansion valve for R744 (CO2) liquid/gas injection control
- Refrigerant
- R744 (CO2), transcritical
- Inlet connection
- 1/4 in (6.35 mm), Solder ODM
- Outlet connection
- 1/4 in (6.35 mm), Solder ODM
- Connection material
- Cu-plated stainless steel
- Max. working pressure (PS/MWP)
- 140 bar (2030 psig)
- MaxOPD (max. operating pressure differential)
- 120 bar (1740 psig), forward and reverse
- Rated capacity R744
- 13.73 kW (3.9 TR)
- Orifice size
- 1.4 mm
- Flow characteristic
- Linear
- Flow direction
- Bi-flow
- Max. leakage
- 150 cm³/min
- Motor
- permanent-magnet stepper motor
- Total steps
- 480 (half steps)
- Excitation modes
- 1-2 (half step), 2-2 (full step)
- Refrigerant temperature range
- -40 to 80 °C (-40 to 176 °F)
- Ambient temperature range
- -40 to 80 °C (-40 to 176 °F)
- Storage temperature range
- -30 to 65 °C
- Lubricant compatibility
- PAG, POE
- Compatible drivers/controllers
- Danfoss EKE 1A / EKE 1B / EKE 1C / EKE 100, EIM 336 (ordered separately)
- EAN
- 5715255035879
Standards & Compliance
- Size / Series
- 1/4 in (6.35 mm) ODM
- Material
- Cu-plated stainless steel
- Thread Standard
- Solder ODM
- Pressure Rating
- 140 bar (2030 psig) MWP; MaxOPD 120 bar (1740 psig)
- Temperature Range
- -40 to 80 °C refrigerant and ambient
- HS Code
- 8481.80
Compatibility & Fitment
ETS 5T is a driver-controlled stepper valve for transcritical CO2 (R744) — it does not operate stand-alone. Drive with a Danfoss EKE 1A/1B/1C/100 or EIM 336 controller. Verify orifice class (1.4 mm), inlet/outlet ODM size and MaxOPD (120 bar (1740 psig)) against your CO2 application before ordering.
