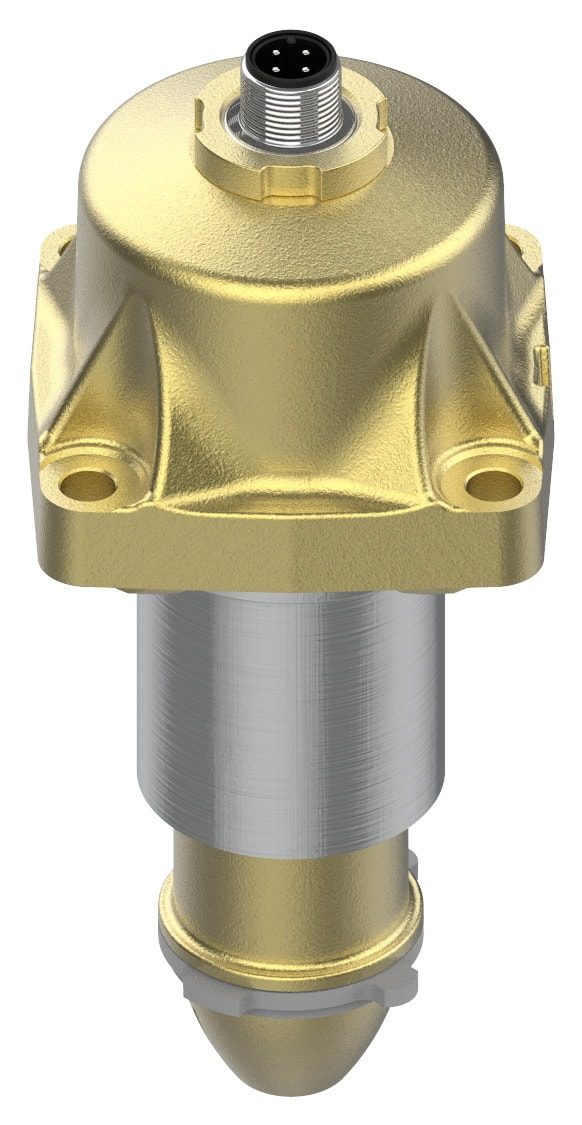

Danfoss ETS 250L actuator kit, linear flow, spare part for Colibri electric expansion valve, M12, 37 bar MWP
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss actuator kit spare part, code 034G3614, for the ETS 250L Colibri electric (stepper-motor) expansion valve. The kit is the replaceable stepper-actuator head that mounts onto the ETS 250L valve body; linear-flow characteristic version. M12 electrical connection, max. working pressure 37 bar (536 psig). Supplied as a single pack (1 pc). Used to service ETS 250L valves without replacing the complete valve. Net weight 0.752 kg. OEM P/N 034G3614, EAN 5715162288757. Note: under REACH the article contains lead (CAS 7439-92-1). Order the matching Danfoss driver (EKE / EKF / MCX / AK-XM 208C) and M12 cable separately.
Technical Specifications
- Type
- Spare part — ETS 250L actuator kit (Colibri)
- Code number
- 034G3614
- Used for product
- ETS 250L electric expansion valve
- Function
- replaceable stepper-motor actuator head for the ETS 250L valve body
- Flow characteristic
- Linear
- Valve Kv value (host valve)
- 13.9 m³/h
- Electrical connection
- M12
- Max. working pressure (MWP)
- 37 bar (536 psig)
- Motor
- 2-phase bi-polar permanent-magnet stepper
- Packing format
- Single pack; quantity per packing format: 1 pc
- Net weight
- 0.752 kg
- Gross weight
- 1.077 kg
- Product group
- Electric valve spare parts
- Compatible Danfoss drivers/controllers
- EKE, EKF, MCX, AK-XM 208C (ordered separately)
- REACH Candidate List
- contains Lead (CAS no. 7439-92-1)
- Approvals
- CE, UKCA, EAC, CMIM, CRN, UL Recognized
- EAN
- 5715162288757
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EU RoHS compliance
- Out of scope
- Max. Working Pressure [bar]
- 37 bar
- Max. Working Pressure [psig]
- 536 psig
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Type designation
- Actuator kit
- UL mark
- Yes
Standards & Compliance
- Size / Series
- ETS 250L
- Material
- Brass valve body interface; stepper-motor actuator
- Pressure Rating
- 37 bar (536 psig) MWP
- HS Code
- 8481.90
Compatibility & Fitment
Fits the Danfoss ETS 250L Colibri electric expansion valve body only. Match the flow characteristic (Linear) to the original valve. The ETS Colibri is a driver-controlled stepper valve — it does not operate stand-alone; drive with a Danfoss EKE, EKF, MCX or AK-XM 208C (ordered separately). Replace worn O-rings (034G3640 / 034G3643) when refitting.
