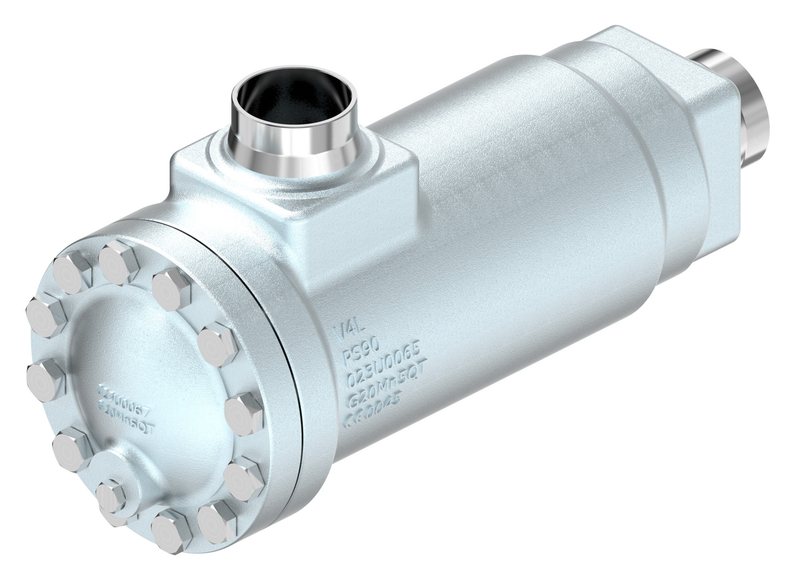

Danfoss ELIMINATOR DCR CO2 filter drier shell, DCR 09617DB, DN 50 butt weld, 2-Core (96 cu.in.), 90 bar R744, code
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ELIMINATOR DCR replaceable-core filter drier shell for transcritical CO2 (R744), code 023U1005 (type DCR 09617dB), with a DN 50 butt weld steel connection (ANSI B 36.10 SCH 80) and a 1/4 in NPT access port. Holds 2 solid cores of core-size code 96 cu.in.; shell volume 4 L, net volume 2.9 L; rated liquid capacity 595 kW / 169.19 TR. The Danfoss ELIMINATOR DCR is a semi-hermetic (bolted, serviceable) filter drier shell for the liquid and/or suction line of transcritical CO2 (R744) refrigeration systems. The steel housing and top cover form a pressure vessel that holds one or more replaceable solid cores; the cover unbolts so the spent core can be exchanged without cutting the shell out of the line. Solid cores are ordered separately by function: 48-DM / 96-DM (100% molecular sieve, moisture adsorption), 48-DC (80% molecular sieve + 20% activated alumina, moisture and acid), 48-DA (post-burnout cleanup) and 48-F (strainer). This high-pressure variant is rated 90 bar (1305 psig) for CO2 duty. Maximum working pressure 90 bar (1305 psig); media temperature -55 to 100 C (-67 to 212 F); PED category II. Supplied as a single-pack shell assembly (housing, top cover and one flat gasket); solid cores ordered separately.
Technical Specifications
- Type designation
- DCR 09617dB
- Product group
- Filter driers (ELIMINATOR DCR, replaceable solid core, high-pressure CO2)
- Function
- Serviceable filter drier shell for the liquid / suction line — holds replaceable solid cores (48-DM / 96-DM / 48-DC / 48-DA / 48-F, ordered separately)
- Number of cores
- 2
- Core size code
- 96 cu.in.
- Connection type
- Butt weld (steel)
- Connection size
- DN 50
- Connection standard
- ANSI B 36.10 SCH 80
- Access port
- 1/4 in NPT
- Body material
- Steel
- Shell volume
- 4 L
- Net volume
- 2.9 L
- Liquid capacity
- 595 kW / 169.19 TR
- Maximum working pressure
- 90 bar (1305 psig)
- Media temperature range
- -55 to 100 C (-67 to 212 F)
- Compatible refrigerant
- R744 (CO2)
- PED category
- II
- Packing format
- Single pack (1 pc, incl. 1 flat gasket)
- Net weight
- 19.86 kg
- Gross weight
- 23.2 kg
- EU RoHS compliance
- Yes
- China RoHS compliance
- Yes
- Approvals
- CE, CMIM, CRN, UL
- EAN
- 5715162791608
- MPN
- 023U1005
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 90 bar
- Temperature Range
- -55 to 100 C
- HS Code
- 8421.39
Compatibility & Fitment
High-pressure CO2 (R744) shell only (housing + top cover + flat gasket); solid cores ordered separately. Match the core function (48-DM / 96-DM moisture, 48-DC moisture + acid, 48-DA post-burnout, 48-F strainer) and the number of cores this shell holds. Confirm the connection (steel ODF solder size vs butt-weld DN) matches the line and that the system is rated for 90 bar CO2 duty before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ELIMINATOR DCR CO2 filter drier shell, DCR 04811B, 1 3/8 in ODF solder, 1-Core (48 cu.in.), 90 bar R744, code
023U1008
Danfoss
Danfoss ELIMINATOR DCR CO2 filter drier shell, DCR 04811DB, DN 32 butt weld, 1-Core (48 cu.in.), 90 bar R744, code
023U1011
Danfoss
Danfoss ELIMINATOR DCR CO2 filter drier shell, DCR 04807B, 7/8 in ODF solder, 1-Core (48 cu.in.), 90 bar R744, code
023U1014
Danfoss
Danfoss ELIMINATOR DCR CO2 filter drier shell, DCR 04807DB, DN 20 butt weld, 1-Core (48 cu.in.), 90 bar R744, code
023U1017
Danfoss

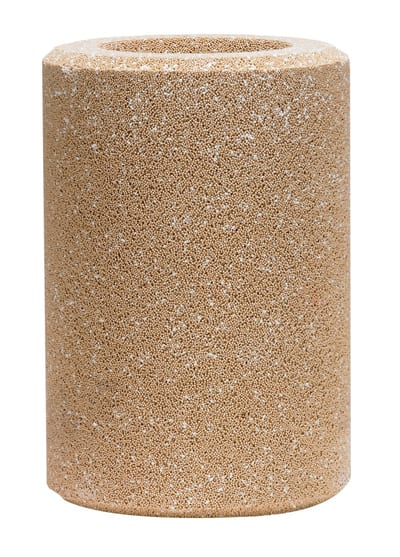

Danfoss ELIMINATOR DCR filter drier core, 48-Dm, 48 cu.in. 100% molecular sieve (moisture), code
023U1391
Danfoss
Danfoss ELIMINATOR DCRE filter drier core, 48-Dm, 48 cu.in. 100% molecular sieve (moisture), code
023U1399
Danfoss

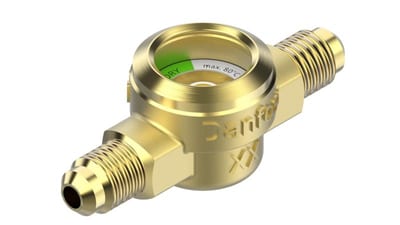

Danfoss SGP 6 N moisture-indicating sight glass, flare 1/4 in (6 mm), code
014L0161
Danfoss

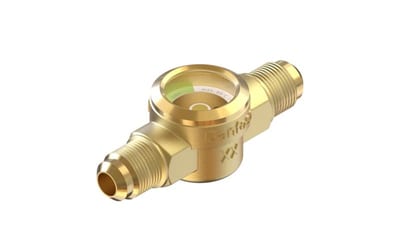

Danfoss SGP 10 N moisture-indicating sight glass, flare 3/8 in (10 mm), code
