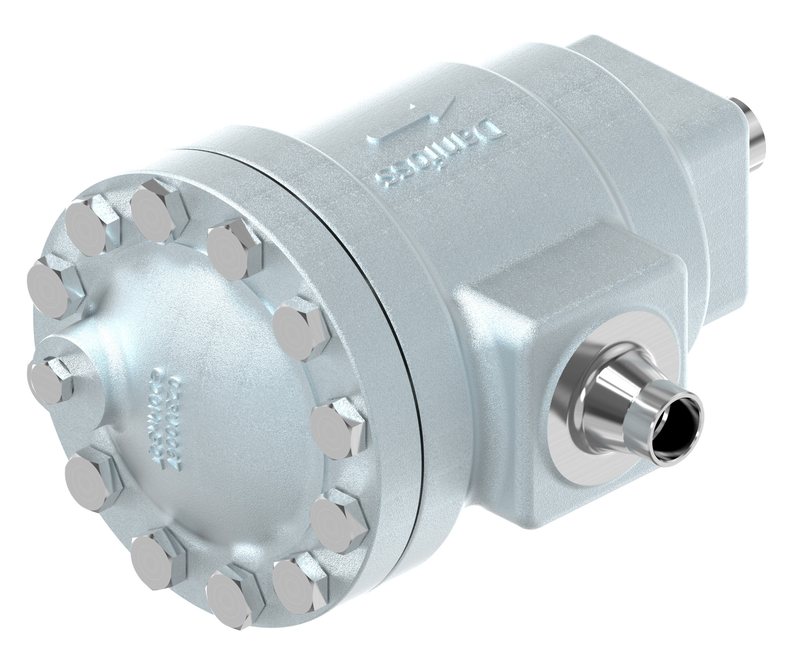

Danfoss ELIMINATOR DCR CO2 filter drier shell, DCR 04807B, 7/8 in ODF solder, 1-Core (48 cu.in.), 90 bar R744, code

Danfoss ELIMINATOR DCR replaceable-core filter drier shell for transcritical CO2 (R744), code 023U1014 (type DCR 04807B), with a 7/8 in ODF solder steel connection (EN 1254-1) and a 1/4 in NPT access port. Holds 1 solid core of core-size code 48 cu.in.; shell volume 2 L, net volume 1.6 L; rated liquid capacity 220 kW / 62.56 TR. The Danfoss ELIMINATOR DCR is a semi-hermetic (bolted, serviceable) filter drier shell for the liquid and/or suction line of transcritical CO2 (R744) refrigeration systems. The steel housing and top cover form a pressure vessel that holds one or more replaceable solid cores; the cover unbolts so the spent core can be exchanged without cutting the shell out of the line. Solid cores are ordered separately by function: 48-DM / 96-DM (100% molecular sieve, moisture adsorption), 48-DC (80% molecular sieve + 20% activated alumina, moisture and acid), 48-DA (post-burnout cleanup) and 48-F (strainer). This high-pressure variant is rated 90 bar (1305 psig) for CO2 duty. Maximum working pressure 90 bar (1305 psig); media temperature -55 to 100 C (-67 to 212 F); PED category I. Supplied as a single-pack shell assembly (housing, top cover and one flat gasket); solid cores ordered separately.

Type designation

DCR 04807B

Product group

Filter driers (ELIMINATOR DCR, replaceable solid core, high-pressure CO2)

Function

Serviceable filter drier shell for the liquid / suction line — holds replaceable solid cores (48-DM / 96-DM / 48-DC / 48-DA / 48-F, ordered separately)

Number of cores

1

Core size code

48 cu.in.

Connection type

Solder, ODF (steel)

Connection size

7/8 in

Connection standard

EN 1254-1

Access port

1/4 in NPT

Body material

Steel

Shell volume

2 L

Net volume

1.6 L

Liquid capacity

220 kW / 62.56 TR

Maximum working pressure

90 bar (1305 psig)

Media temperature range

-55 to 100 C (-67 to 212 F)

Compatible refrigerant

R744 (CO2)

PED category

I

Packing format

Single pack (1 pc, incl. 1 flat gasket)

Net weight

14.23 kg

Gross weight

16.64 kg

EU RoHS compliance

Yes

China RoHS compliance

Yes

Approvals

CE, CMIM, CRN, UL

EAN

5715162791431

MPN

023U1014

Material

Steel

Pressure Rating

90 bar

Temperature Range

-55 to 100 C

HS Code

8421.39
