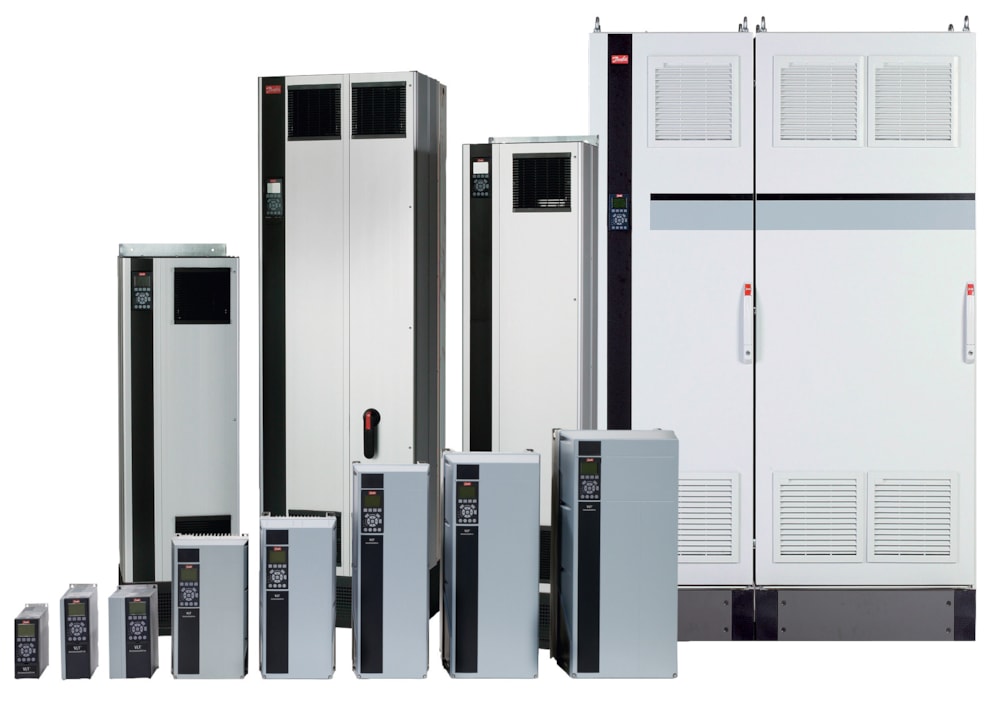

Danfoss VLT Automation Drive FC-301 — 2,2 kW, 380-480 VAC, IP20
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss VLT Automation Drive FC-301 — 2,2 kW, 380-480 VAC, IP20. Reference part number 131B0969.
Technical Specifications
- Type code
- FC-301P2K2T4E20H1XGXXXXSXXXXAXBXCXXXXDX
- Code number
- 131B0969
- Rated shaft output
- 2,2 kW
- Supply voltage
- 380–480 V AC
- Enclosure rating
- IP20
- Series
- VLT Automation Drive FC-301
- Power rating
- 2.2 kW
- IP rating
- IP20
- Product Group
- FC-
- Phase
- T
- Mains Voltage
- 4
- Enclosure
- E20
- RFI Filter
- H1
- Brake - Safe Stop
- X
- LCP
- G
- Coating PCB
- X
- Mains Option
- X
- Adaptation A
- X
- Adaptation B
- X
- Software Release
- SXXX
- Software Language Pack
- X
- A Option
- AX
- B Option
- BX
- C0 Option MCO
- CX
- C1 Option
- X
- C Option Software
- XX
- D Option
- DX
- Frame Size
- A2
- Product Catalog
- NO_VIEW
- Power 160% (HO) [KW]
- 2.2
- Power Loss HO [W]
- 88
- kVA
- 3.88
- Continuous Current (HO) [A]
- 5.6
- Intermittent Current (HO) [A]
- 8.96
- Height [mm]
- 268,0
- Width w/ no C options [mm]
- 90,0
- Width w/ two C options [mm]
- 150,0
- Depth [mm]
- 205,0
- Depth with Option A/B [mm]
- 220,0
- ECCN EU
- Y901
- ECCN US
- 3A999.a
- Product View (Switch)
- GLBL
Standards & Compliance
- HS Code
- 8504.40
Product Documentation
