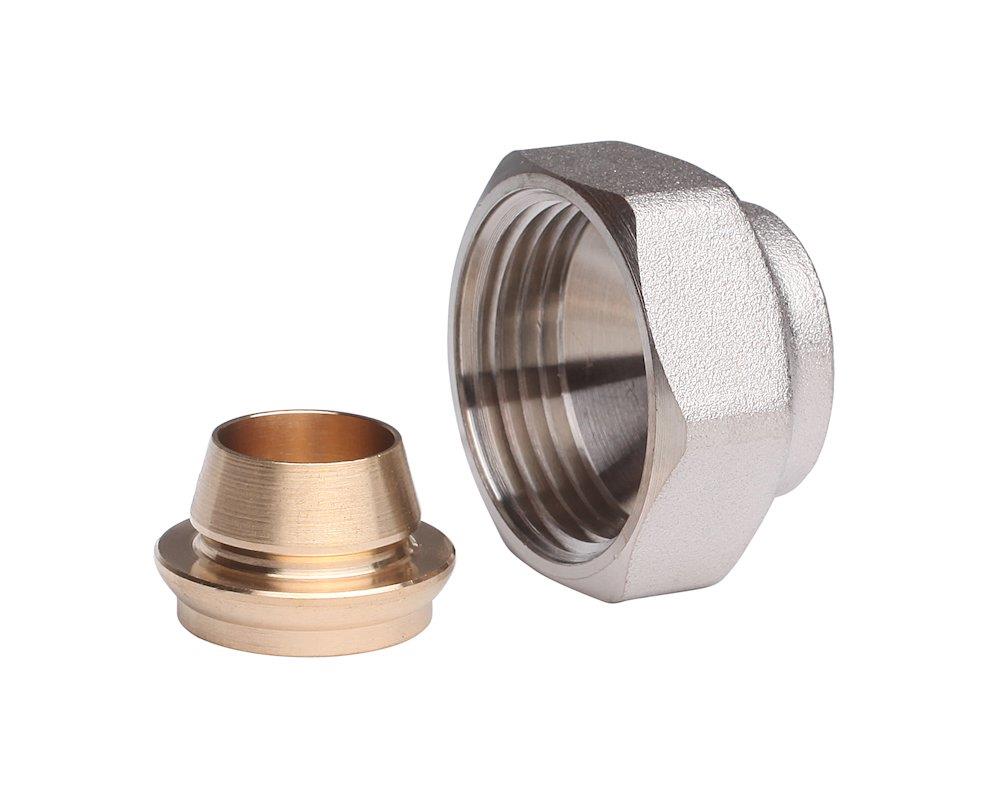

Danfoss Threaded Sleeve - G 3/4" x 12 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Threaded Sleeve. Thermostats and sensor pockets (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection G 3/4" x 12 mm. Supplied under manufacturer part number 013G4122, EAN 5702420033358, HS code 7412.20, country of origin China.
Technical Specifications
- Product type
- Thermostats and sensor pockets
- Product group
- Heat
- Connection
- G 3/4" x 12 mm
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.2398 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
- Manufacturer part number
- 013G4122
- VVS number
- 451271052
- EAN
- 5702420033358
- Net weight
- 0.055 Kilogram
- Type
- Compression fittings for steel and copper tubings
- CE mark
- No
- China RoHS compliance
- Out of scope
- Connections
- G 3/4"
- Description
- Cu/Steel fittings for pipe 12 mm
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Finish
- Nickel plated
- Flow temperature [°C] [Max]
- 120 °C
- For tubings
- Steel and Copper
- For valves
- Couplings
- Label product
- Yes
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Test pressure [bar]
- 16 bar
- Thread
- Internal
- Tube dimension [mm]
- 12
- UL mark
- No
- Usage
- for steel & copper
- Working pressure [bar] [Max]
- 10 bar
Standards & Compliance
- HS Code
- 7412.20
Cross References
- MPN 013G4122
- EAN 5702420033358
- VVS 451271052
