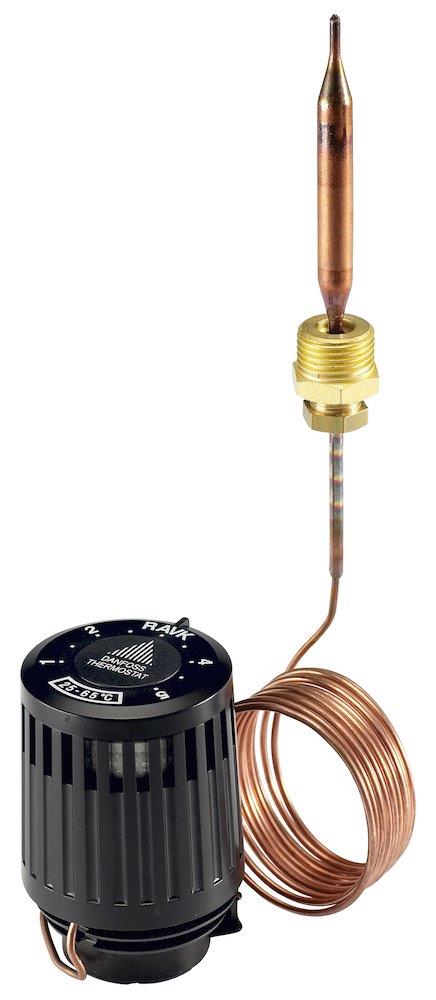

Danfoss RAVK Sensor Element - 25°C, 45°C, 2M
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RAVK Sensor Element. Thermostats and sensing elements (Plumbing / Heat / Radiators, valves & accessories). Principal data: setting temperature min 25 °C, setting temperature max 45 °C, capillary 2 m. Supplied under manufacturer part number 013U8072, EAN 5702421552094, HS code 9032.10, country of origin Slovenia.
Technical Specifications
- Product type
- Thermostats and sensing elements
- Product group
- Heat
- Setting temperature min
- 25 °C
- Setting temperature max
- 45 °C
- Capillary
- 2 m
- Ambient temperature
- 70 °C
- Sensor temperature max
- 120 °C
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 2.2914 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 90321080
- HS code
- 9032.10
- Manufacturer part number
- 013U8072
- VVS number
- 451244072
- EAN
- 5702421552094
- Net weight
- 0.398 Kilogram
- Type
- RAVK
- Ambient temperature [°C] [max]
- 70 °C
- Ambient temperature [°C] [min]
- 0 °C
- Capillary tube length [m]
- 2 m
- China RoHS compliance
- Out of scope
- Description
- RAVK PN16 25-45/2m
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Function
- Temp. controller
- Gain Ks
- 0.1
- Impulse tube material
- Copper mat. No 2.0090
- Media temperature at sensor [°C] [Max]
- 120 °C
- Mounting version
- Free
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Sensor connection
- M14x1 / R1/2 ext thread acc. DIN 2999
- Temperature sensor diameter [mm]
- 9.5 mm
- Temperature sensor length [mm]
- 82 mm
- Temperature sensor material
- Copper mat. No 2.0090
- Temperature setting range [°C] [Max]
- 45 °C
- Temperature setting range [°C] [Min]
- 25 °C
- Time constant [sec]
- 25 "
- Transport temperature [°C] [Max]
- 50 °C
- Transport temperature [°C] [Min]
- -20 °C
Standards & Compliance
- HS Code
- 9032.10
Cross References
- MPN 013U8072
- EAN 5702421552094
- VVS 451244072
Product Documentation
More from Danfoss
Danfoss
Danfoss Sensor Pocket
4006989
Danfoss

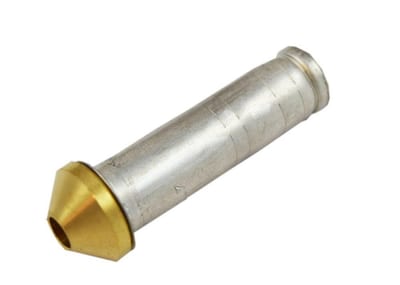

Danfoss T2/TE2 Nozzle insert flare - 6, T2 - serie, Dyse 06 T2
