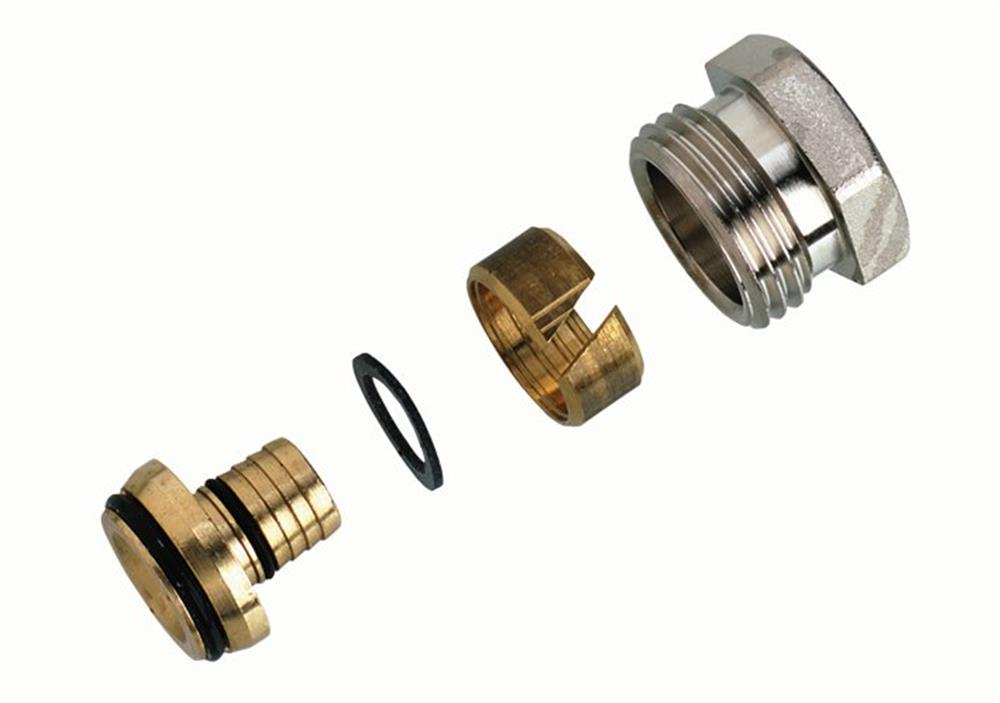

Danfoss Threaded Nipple - 16mm, 1/2", Alupex
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Threaded Nipple. Accessories and spare parts for underfloor heating systems (Plumbing / Heat / Underfloor heating systems). Principal data: pipe dimension 16 mm, thread 1/2", used for Alupex. Supplied under manufacturer part number 013G4176, EAN 5702420036731, HS code 8481.90, country of origin Italy.
Technical Specifications
- Product type
- Accessories and spare parts for underfloor heating systems
- Product group
- Heat
- Pipe dimension
- 16 mm
- Thread
- 1/2"
- Used for
- Alupex
- Temperature max
- 95 °C
- Operating pressure max
- 6 bar
- Thread type
- Male thread
- Connection
- 16 x 2 mm
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Ctn. , Plt.
- Carbon footprint (EPD)
- 0.1683 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 013G4176
- VVS number
- 403119876
- EAN
- 5702420036731
- Net weight
- 0.036 Kilogram
- Type
- Compression fittings for Alupex tubings
- CE mark
- No
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.3
- Connections
- G 1/2" A
- Description
- Alupex fittings for pipe 16 x 2 mm
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Finish
- Nickel plated
- Flow temperature [°C] [Max]
- 95 °C
- For tubings
- Alupex
- For valves
- RA 15/6T
- Label product
- Yes
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Test pressure [bar]
- 10 bar
- Tube dimension [mm]
- 16x2
- UL mark
- No
- Usage
- for AluPex
- Working pressure [bar] [Max]
- 6 bar
Standards & Compliance
- HS Code
- 8481.90
Cross References
- MPN 013G4176
- EAN 5702420036731
- VVS 403119876
Product Documentation
More from Danfoss
Danfoss
Danfoss Universal Sensor - 2,5 m
10229150
Danfoss
Danfoss DEVIreg 850 Thermostat with PSU - white, -10 - +40°C
7224215373
Danfoss

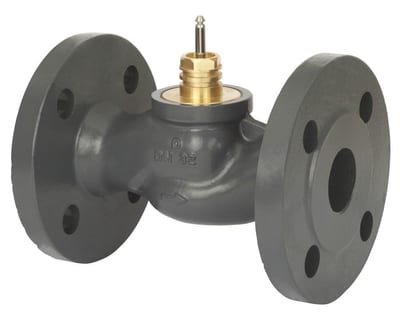

Danfoss VF 2 Seat Valve 2-Way - 32, Flange, 16M³/h
4007162
Danfoss

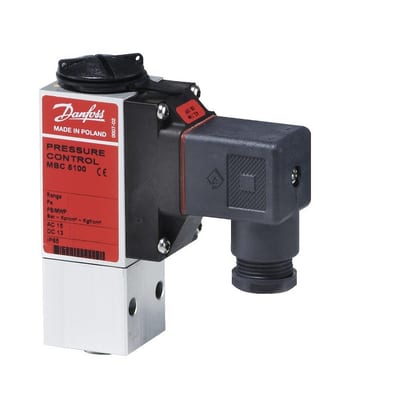

Danfoss MBC 5100 Pressure Switch - 40-400bar
10248379
Danfoss

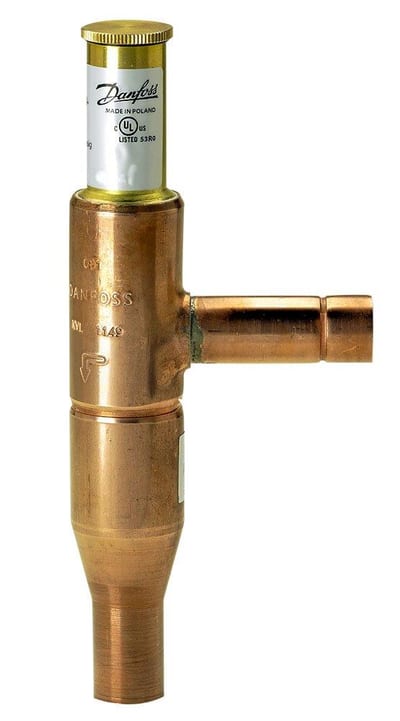

Danfoss KVL Starter regulator - 7/8" solder, R1234YF, R1234ZE(E), R1270, R134A, R22, R290, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600A, KVL 22 solder
5702428411752
Danfoss

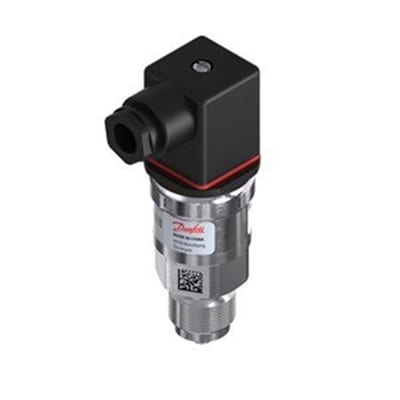

Danfoss MBS 33 Pressure Transmitter - G 1/2", 0-16bar
060G1228
Danfoss

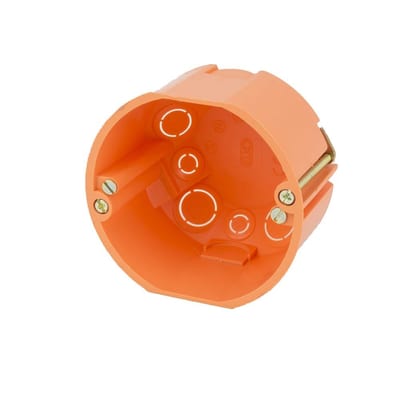

Danfoss DEVI Pre-wall box
19808930
Danfoss

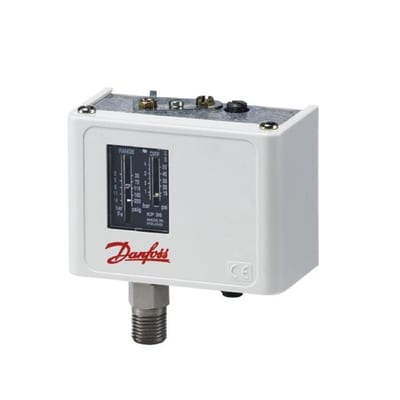

Danfoss Pressure Switch - 10248363
