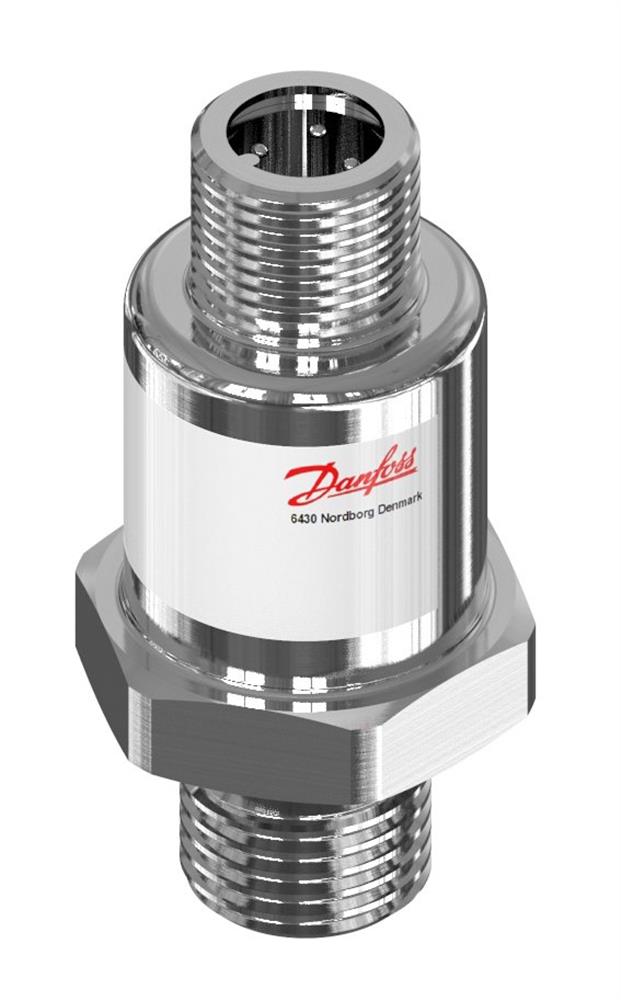

Danfoss MBS 1250 Pressure Transmitter - G 1/4", 0-10bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 1250 Pressure Transmitter. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection G 1/4", setting range 0-10 bar. Supplied under manufacturer part number 063G1133, EAN 5702428966849, HS code 9026.20, country of origin United Kingdom.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Connection
- G 1/4"
- Setting range
- 0-10 bar
- Carbon footprint (EPD)
- 7.5137 kg CO2e per pcs
- Country of origin
- United Kingdom
- Customs tariff code (EU CN)
- 90262020
- HS code
- 9026.20
- Manufacturer part number
- 063G1133
- EAN
- 5702428966849
- Net weight
- 0.05 Kilogram
- Type
- MBS 1250
- + supply
- Pin 1
- - common
- Pin 3
- Accuracy, typical [±FS%]
- 0.5 %
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 212 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- C UL US UL Recognized
- Burst pressure [bar]
- 400 bar
- Burst pressure [psig]
- 5800 psig
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Comments
- PE ON PIN 4
- Compensated temp. range [°C] [max]
- 125 °C
- Compensated temp. range [°C] [min]
- -40 °C
- Compensated temp. range [°F] [max]
- 257 °F
- Compensated temp. range [°F] [min]
- -40 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male
- Electrical connection
- M12 x 1
- Electrical connection size
- 4 pin
- Electrical connection standard
- EN 60947-5-2
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 30 bar
- Overload pressure max. [psig]
- 435 psig
- Pin surface material
- Au
- Pressure connection HEX [mm]
- 22 mm
- Pressure connection notes
- A
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 3852-E
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 10 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 145 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- Yes
- REACH Candidate Strip substances
- No
- Response time max. [ms]
- 1 ms
- Specification key
- MBS 1250-2011-C1GB04
- Supply voltage [V] DC [max]
- 30 V
- Supply voltage [V] DC [min]
- 8 V
- UL mark
- Yes
Standards & Compliance
- HS Code
- 9026.20
Cross References
- EAN 5702428966849
- MPN 063G1133
