Product Description

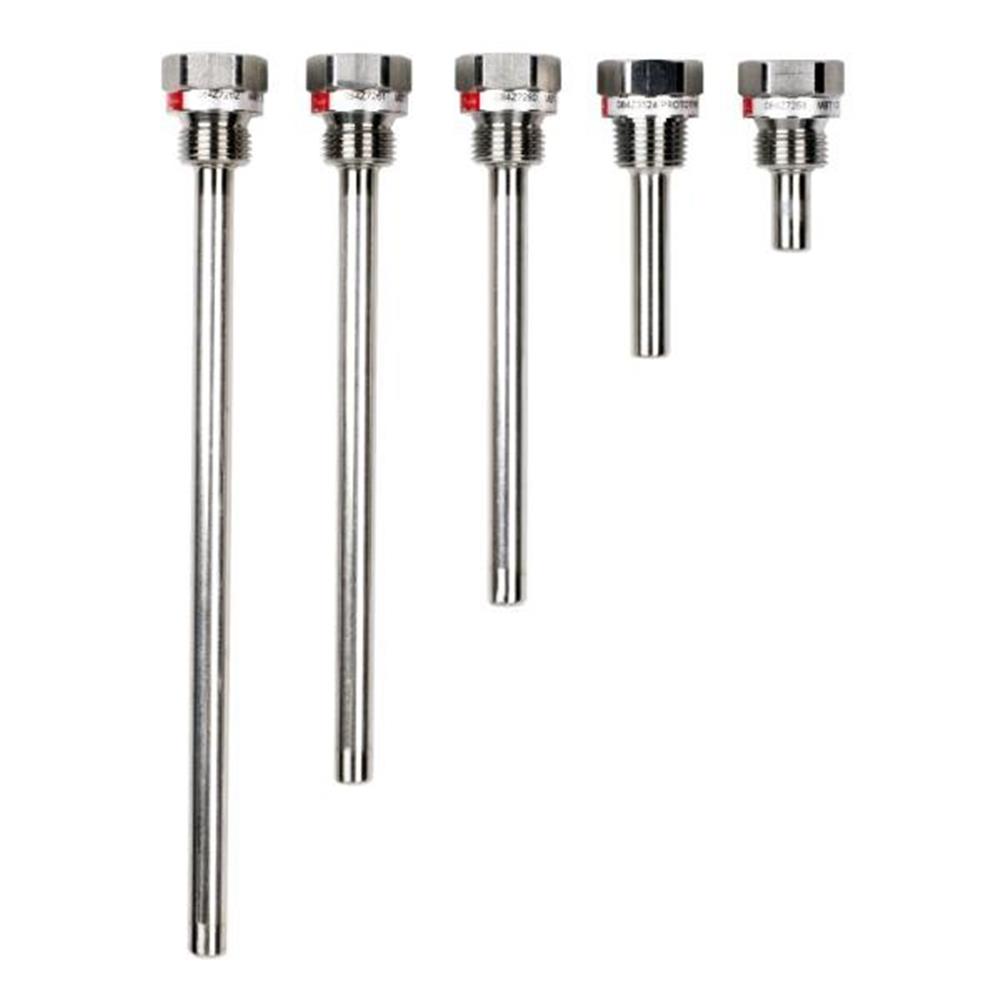

Danfoss Immersion Tube. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 1/2", length 100 mm. Supplied under manufacturer part number 084Z7259, EAN 5702423201396, HS code 9025.90, country of origin China.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Connection
- 1/2"
- Length
- 100 mm
- Carbon footprint (EPD)
- 0.7767 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90259000
- HS code
- 9025.90
- Manufacturer part number
- 084Z7259
- VVS number
- 475177010
- EAN
- 5702423201396
- Net weight
- 0.104 Kilogram
- Type
- MBT 120
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion length [in]
- 3.94 in
- Insertion length [mm]
- 100 mm
- Insertion type
- Fixed
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.433 in
- Protection tube diameter [mm]
- 11 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate Strip substances
- No
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Type designation
- MBT 120-630-100-3
- UL mark
- No
- Used for product
- MBT 3560, MBT 5560
Standards & Compliance
- HS Code
- 9025.90
Cross References
- MPN 084Z7259
- EAN 5702423201396
- VVS 475177010
Product Documentation
