Product Description

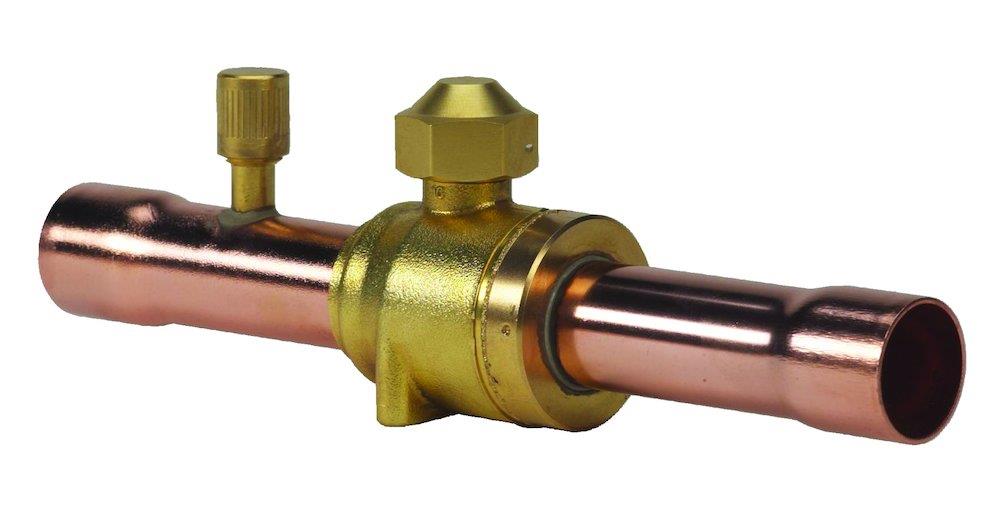

Danfoss GBCH Ball Valve CO2 with service port. Shut-off valves (Refrigeration technology / Cooling technical components / Isolation valves). Principal data: connection 5/8" solder, kv value 11.77 m³/h, working pressure max 90 bar, temperature range -40-100 °C. Supplied under manufacturer part number 009L7586, EAN 5702428514965, HS code 8481.80, country of origin China.
Technical Specifications
- Product type
- Shut-off valves
- Product group
- Cooling technical components
- Connection
- 5/8" solder
- Kv value
- 11.77 m³/h
- Working pressure max
- 90 bar
- Temperature range
- -40-100 °C
- Coolant
- R744
- Type designation
- GBCH 16s
- Sales unit
- Pack
- Carbon footprint (EPD)
- 2.3516 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84818081
- HS code
- 8481.80
- Manufacturer part number
- 009L7586
- EAN
- 5702428514965
- Net weight
- 0.267 Kilogram
- Type
- GBCH 16s
- Access port
- Yes
- Approval
- UKCA
- Body material
- Brass
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- Connection Code
- (3002:X:16)
- Connection material
- Copper
- Cv value [gal/min]
- 13.61 gal/min
- Direction
- Straightway
- Equipment
- Cap w. wire seal
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 2-way arrow
- Fluid Group
- 2
- Ignition source assessment
- Yes
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 5/8 in
- Kv value [m³/h]
- 11.77 m³/h
- Max. Working Pressure [bar]
- 90 bar
- Max. Working Pressure [psig]
- 1305 psig
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 5/8 in
- Panel mounting option
- M4 × 0.7 (2 PC)
- Parts included
- Schrader valve
- PED category
- Art. 4, par. 3
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R744
- Temperature range [°C] [max]
- 100 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 212 °F
- Temperature range [°F] [min]
- -40 °F
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702428514965
- MPN 009L7586
