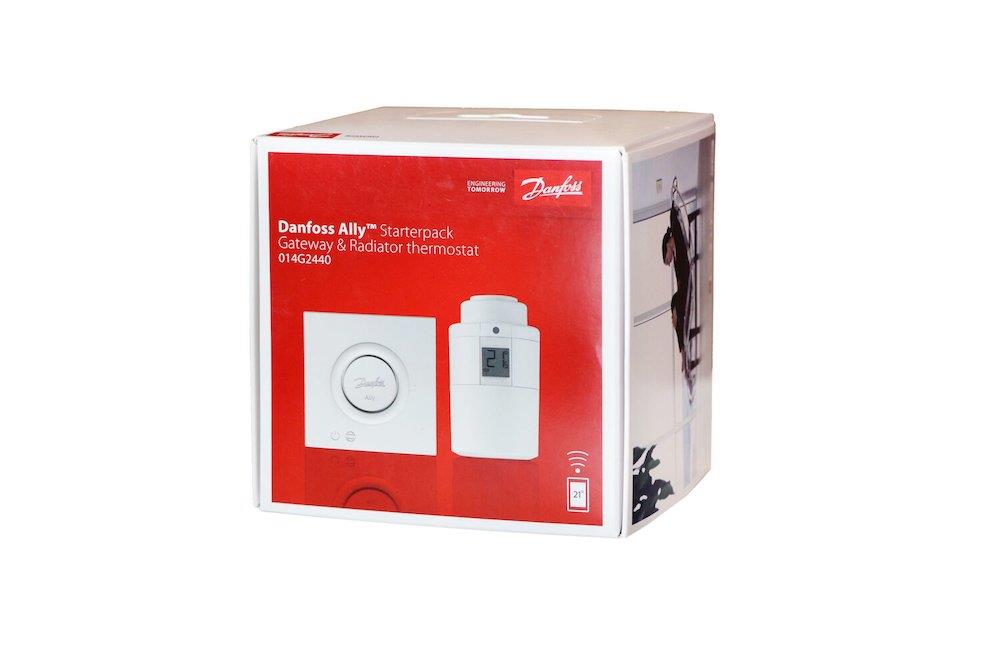

Danfoss Ally Starter Pack with gateway and radiator thermostat - RA+M30+RAV+RAVL
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Ally Starter Pack with gateway and radiator thermostat. Electronic regulation (Plumbing / Heat / Radiators, valves & accessories). Principal data: connection RA+M30+RAV+RAVL. Supplied under manufacturer part number 014G2440, EAN 5702424056551, HS code 9032.10, country of origin China.
Technical Specifications
- Product type
- Electronic regulation
- Product group
- Heat
- Connection
- RA+M30+RAV+RAVL
- Setting temperature min
- 5 °C
- Setting temperature max
- 35 °C
- Supply voltage
- 240 V AC
- Ambient temperature min
- -10 °C
- Ambient temperature max
- 55 °C
- Color
- White
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack
- Carbon footprint (EPD)
- 5.1767 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90321080
- HS code
- 9032.10
- Manufacturer part number
- 014G2440
- VVS number
- 460970980
- EAN
- 5702424056551
- Net weight
- 0.366 Kilogram
- Type
- Danfoss Ally™ Starter Pack
- Actuator type
- Electromechanical
- Adapter type
- M30
- Ambient temperature [°C] [max]
- 55 °C
- Ambient temperature [°C] [min]
- -10 °C
- Application
- Residential (pollution degree 2)
- Approval
- CE
- Battery qty
- 2
- Battery type
- 2 x 1,5 V AA-Alkaline batteries
- Battery type or Name
- Alkaline AA (LR6/ZR6)
- Cable length [m]
- 1 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Colour
- RAL 9016
- Description
- Danfoss Ally™ Starter Pack (Gateway + Radiator Thermostat)
- Display type
- No display
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 7(c)-I
- Function
- Control thermostat
- Height [mm]
- 95 mm
- In scope of WEEE
- Yes
- Number of radiator thermostats (incl.)
- 1 pc
- Output voltage [V] DC
- 5 V
- Pollution degree
- 2
- Power consumption (standby) [W]
- 2 W
- Power consumption [W]
- 5 W
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Software class
- A
- Storage temperature [°C] [Max]
- 60 °C
- Storage temperature [°C] [Min]
- -20 °C
- Supply voltage [V] AC [max]
- 240 V
- Supply voltage [V] AC [min]
- 110 V
- Supply voltage frequency [Hz]
- 50 Hz
- System integration
- Danfoss Ally™
- Temperature setting range [°C] [Max]
- 35 °C
- Temperature setting range [°C] [Min]
- 5 °C
- Thermostat IP Class
- 20
- Transmission [m] [Max]
- 30 m
- Transmission frequency [GHz]
- 2.4 GHz
- Transmission power [mW] [Max]
- 79 mW
- Transport temperature [°C] [Max]
- 60 °C
- Transport temperature [°C] [Min]
- -20 °C
- UNSPSC CODE
- 41112209
- Voice assistant compatibility
- Amazon Alexa
- Wireless standard
- Zigbee
Standards & Compliance
- HS Code
- 9032.10
Cross References
- MPN 014G2440
- EAN 5702424056551
- VVS 460970980
Product Documentation
