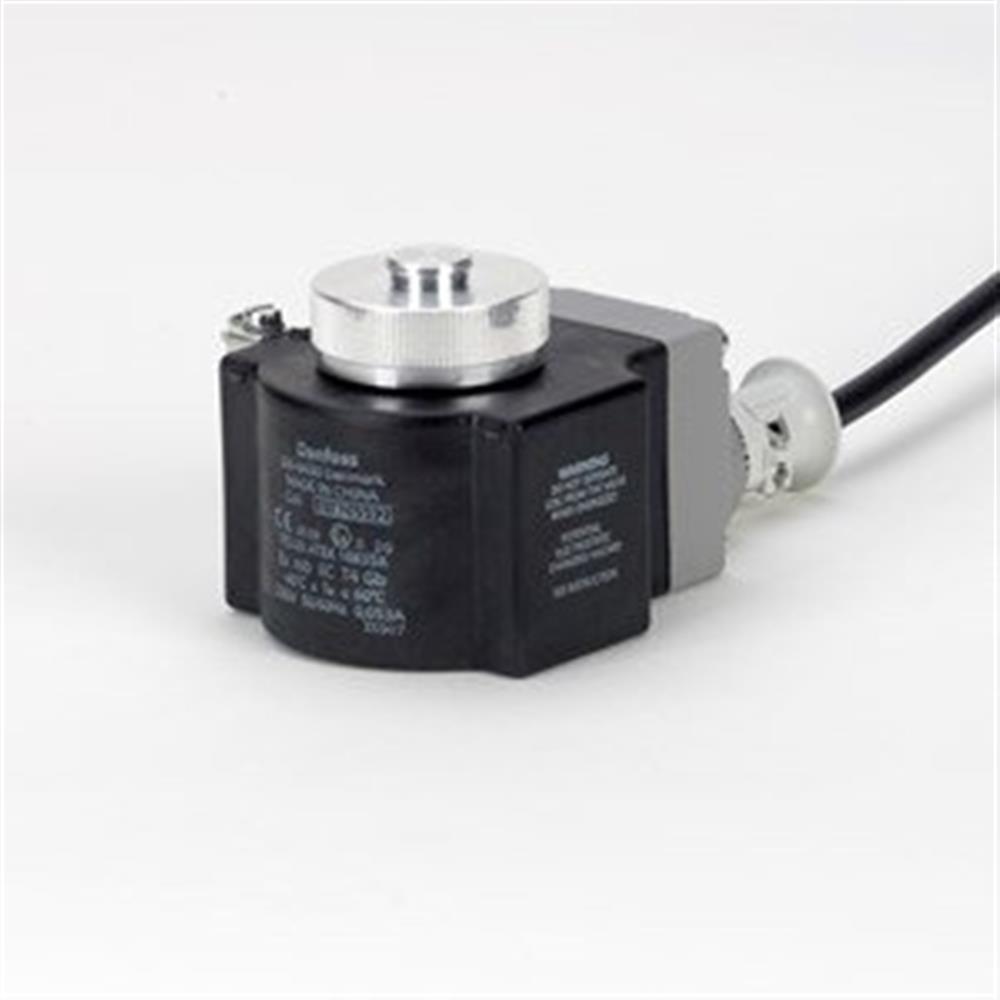

Danfoss BO024D Coil - 24 V DC, 11W
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BO024D Coil. Coils (Plumbing / Heat / Valves for heating and cooling systems). Principal data: voltage 24 V DC, power 11 W. Supplied under manufacturer part number 018Z6596, EAN 5702423061327, HS code 8505.90, country of origin China.
Technical Specifications
- Product type
- Coils
- Product group
- Heat
- Voltage
- 24 V DC
- Power
- 11 W
- Carbon footprint (EPD)
- 6.4036 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 85059029
- HS code
- 8505.90
- Manufacturer part number
- 018Z6596
- EAN
- 5702423061327
- Net weight
- 0.846 Kilogram
- Type
- BO024D
- Actuator size
- 13.5 mm
- Ambient temperature range [°C] [max]
- 60 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 140 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX - Cat. 2 - Zone 1
- Cable length [in]
- 196 in
- Cable length [m]
- 5 m
- China RoHS compliance
- Out of scope
- Coil connection
- Cable
- Coil fastening
- Finger screw
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Black
- Conductor area [mm2]
- 3 x 0.75 mm2
- Duty rating
- Continuous
- Earth connection
- Ext. Terminal
- Electrical conn. comments
- Earth conn. wiring > 4 mm2
- Electrical connection
- Cable
- Electrical connector
- 3 core cable
- Enclosure rating IP
- IP67
- Enclosure rating Nema (~)
- 6
- EU RoHS compliance
- Yes
- EX Sales text
- -40C<ta<+60C
- Parts included
- IP67 seal kit
- Power consumption [W] DC
- 11 W
- REACH Candidate Strip substances
- No
- Rel. Humidity [% RH] [max]
- 100 %
- Rel. Humidity [% RH] [min]
- 0 %
- Supply voltage [V] DC
- 24 V
- Type designation
- BO024D
Standards & Compliance
- HS Code
- 8505.90
Cross References
- EAN 5702423061327
- MPN 018Z6596
