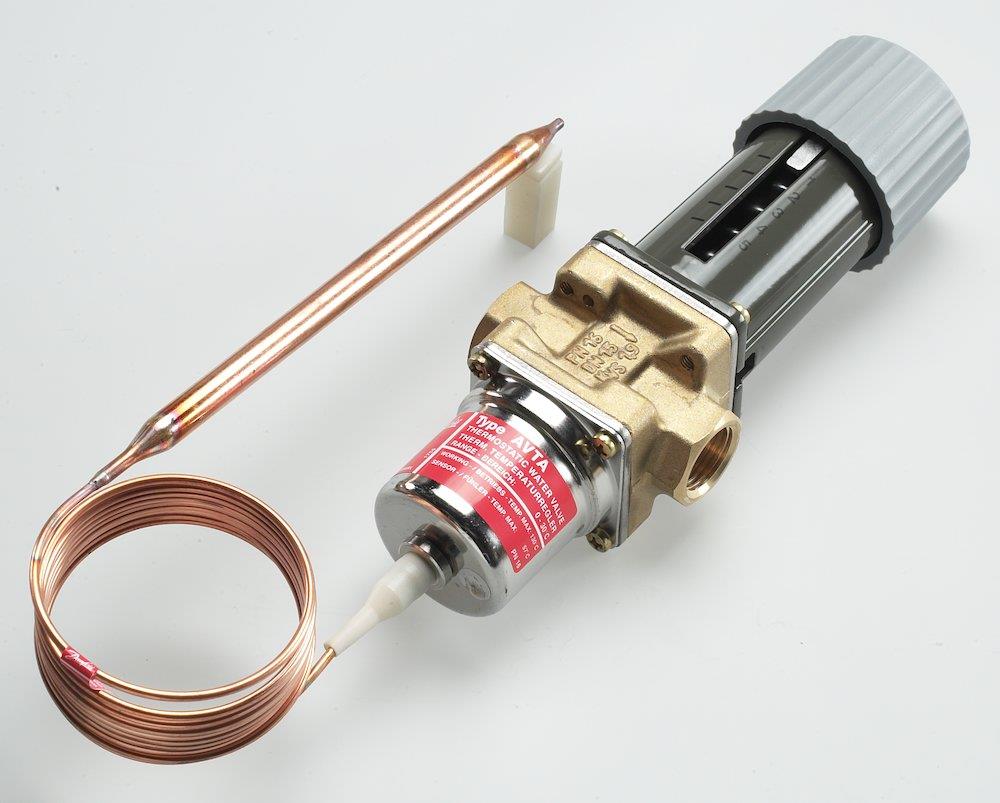

Danfoss AVTB 20 Thermostatic Valve with socket connection - 0°C, 30°C, 3.4M³/h, 20

Danfoss AVTB 20 Thermostatic Valve with socket connection. Regulating valves for water (Plumbing / Heat / Valves for heating and cooling systems). Principal data: setting temperature min 0 °C, setting temperature max 30 °C, kvs value 3.4 m³/h, dn dimension 20. Supplied under manufacturer part number 003N3232, EAN 5702421100189, HS code 8481.80, country of origin Poland.

Product type

Regulating valves for water

Product group

Heat

Setting temperature min

0 °C

Setting temperature max

30 °C

Kvs value

3.4 m³/h

DN dimension

20

Carbon footprint (EPD)

11.7540 kg CO2e per pcs

Country of origin

Poland

Customs tariff code (EU CN)

84818051

HS code

8481.80

Manufacturer part number

003N3232

GTIN (EAN)

5702421100189

VVS number

451010006

EAN

5715255156109

Net weight

1.634 Kilogram

Type

AVTB

Ambient temperature [°C] [max]

70 °C

Ambient temperature [°C] [min]

0 °C

Approval standard

ETA VA 1.54/18952

Capillary tube length [m]

2 m

Cavitation factor

0.4

China RoHS compliance

Out of scope

Cone /seat sealing material

NBR / Brass W. No 2.0402

Connection size

Rp 3/4

Connection standard

ISO 7/1

Connection types

Internal thread

Description

AVTB 20 Thermostatic valve 0-30#C

Diameter [mm]

20 mm

Differential pressure range [bar] [Max]

10 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

Linear

Flow control

No

Function

Temp. controller

Function VSP - P

No

Function VSP - Q

No

Function VSP - T

Yes

Impulse tube material

Copper mat. No 2.0090

Kvs values [m³/h]

3.4 m³/h

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

2 °C

Media temperature at sensor [°C] [Max]

55 °C

Medium alternative

Glycolic water up to 30%

Number of ports

2

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure class

PN 16

Pressure nominal [bar]

16 bar

REACH Candidate Strip substances

Lead (CAS no. 7439-92-1)

Rection time close [sec]

15 "

Rection time open [sec]

3 "

Return limiter function

No

Sensor connection

M22x1 / R3/4 ext thread acc. DIN 2999

Temperature control

Yes

Temperature sensor diameter [mm]

18 mm

Temperature sensor length [mm]

210 mm

Temperature sensor material

Copper mat. No 2.0090

Temperature setting range [°C] [Max]

30 °C

Temperature setting range [°C] [Min]

0 °C

Time constant [sec]

3 "

Transport temperature [°C] [Max]

50 °C

Transport temperature [°C] [Min]

-20 °C

Valve body material

Brass CuZn40Pb2 W. no 2.0402

Valve cone material

NBR rubber

Valve seat material

Cr Ni steel W.no 1.4301

Valve size

DN 20

HS Code

8481.80

• MPN 003N3232
• EAN 5702421100189
• VVS 451010006
