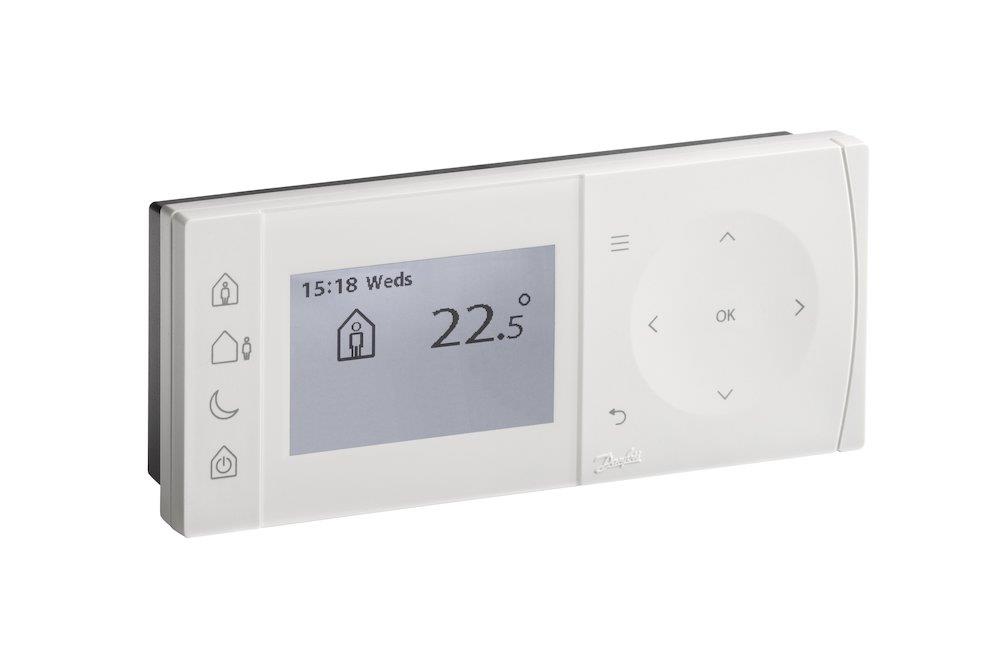

Danfoss TPOne-M Clock Thermostat mains-powered - 5°C, 35°C
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TPOne-M Clock Thermostat mains-powered. Thermostats and sensor pockets (Plumbing / Heat / Valves for heating and cooling systems). Principal data: setting temperature min 5 °C, setting temperature max 35 °C. Supplied under manufacturer part number 087N7852, EAN 5013567423293, HS code 9032.10, country of origin United Kingdom.
Technical Specifications
- Product type
- Thermostats and sensor pockets
- Product group
- Heat
- Setting temperature min
- 5 °C
- Setting temperature max
- 35 °C
- Supply voltage
- 230 V AC
- Depth
- 30 mm
- Height
- 155 mm
- Width
- 66 mm
- Leakage class
- IP20
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 2.4485 kg CO2e per pcs
- Country of origin
- United Kingdom
- Customs tariff code (EU CN)
- 90321020
- HS code
- 9032.10
- Manufacturer part number
- 087N7852
- VVS number
- 472200101
- EAN
- 5013567423293
- Net weight
- 0.22 Kilogram
- Type
- TPOne
- 1 Primary battery SUM weight Kg
- 0.001
- 1 Primary battery weight Kg
- 0.001
- Ambient temperature [°C] [max]
- 45 °C
- Application
- Room heating
- Approval
- CE
- Automatic daylight saving
- Yes
- Back lit display
- Yes
- Backplate
- Custom Backplate
- Ball hardness test [°C]
- 75 °C
- Battery qty
- 1
- Battery type or Name
- Coin battery Manganese Lithium (CR1220)
- Built In sensor
- Yes
- Category name
- Programmable thermostat
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.3
- Clock display
- AM/PM or 24 hour display
- Colour
- White RAL 9010
- Control pollution
- Degree 2
- Control type
- On/Off load compensation
- Delayed start control
- Yes
- Depth [mm]
- 30 mm
- Description
- TPOne-M, Mains powered electronic programmable room thermostat
- Design standard
- EN 60730-2-9
- Displays time or temperature
- Yes
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 7(c)-I
- Factory pre-set programmes
- Yes
- Factory set calendar clock
- No
- Frost protection
- Yes
- Height [mm]
- 66 mm
- Holiday function
- Yes
- In scope of WEEE
- Yes
- Label product
- Yes
- Material
- ABS+PC, non-flammable
- Media
- A
- On/Off control
- Yes
- On/off modulating control
- Yes
- On/Offs Per Day
- 6
- Optimum start control
- Yes
- Output relay rating inductive [A]
- 1 A
- Output relay rating resistive [A]
- 3 A
- Override function
- Yes
- Rated impulse voltage [kV]
- 2.5 kV
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Remote sensor option
- Yes
- Schedule type
- 7 day, 5/2 day, 24 hour
- Selectable °C or °F
- Yes
- Service Interval timer
- Yes
- Supply Type
- 230Vac
- Supply voltage [V] AC
- 230 V
- Switch off
- Yes
- Temperature [°C] [Max]
- 35 °C
- Temperature [°C] [Min]
- 5 °C
- Temperature accuracy
- ±1°C
- Thermostat mode
- Yes
- Tolerance
- ±15%
- UNSPSC CODE
- 41112209
- Warranty [Year]
- 5
- Weight per battery
- 1 g
- Width [mm]
- 155 mm
Standards & Compliance
- HS Code
- 9032.10
Cross References
- MPN 087N7852
- EAN 5013567423293
- VVS 472200101
