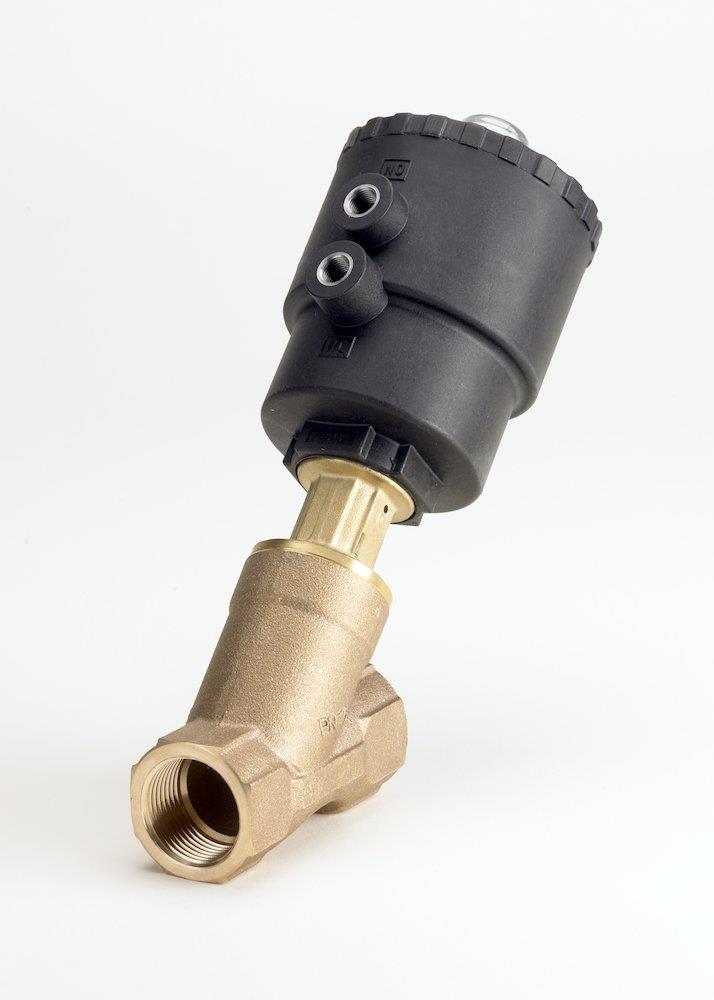

Danfoss AV210D 40B Solenoid Valve PTFE - 1 1/2", NC (Normally closed)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AV210D 40B Solenoid Valve PTFE. EV220B solenoid valve (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 1 1/2", valve position NC (Normally closed). Supplied under manufacturer part number 042N4409, EAN 5702423194308, HS code 8481.80, country of origin Italy.
Technical Specifications
- Product type
- EV220B solenoid valve
- Product group
- Heat
- Connection
- 1 1/2"
- Valve position
- NC (Normally closed)
- Differential pressure
- 0 - 11 bar
- Control
- Piston (angled)
- Connection internal/external
- Internal
- Media temperature
- -30 - 180 °C
- Kv value
- 46
- Housing material
- Bronze
- Head diameter
- 90 mm
- Closure
- Against flow
- Ambient temperature max
- 60 °C
- Orifice size
- 40 mm
- Operating pressure max
- 16 bar
- Test pressure
- 24 bar
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 34.4225 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84818079
- HS code
- 8481.80
- Manufacturer part number
- 042N4409
- VVS number
- 470160311
- EAN
- 5702423194308
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 042N4409
- EAN 5702423194308
- VVS 470160311
Product Documentation
More from Danfoss
Danfoss
Danfoss KVL Starter regulator - 5/8" solder, R290, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R454C (XL20), R507, R513A, R600A, R1234YF, R1234ZE, R1270, R134A, R600, KVL 15 solder
5702428411721
Danfoss
Danfoss TUA Nozzle insert - 0, TUA - serie, Dyse 0 TUA
068U1030
Danfoss
Danfoss AV210C 25B Solenoid Valve PTFE - 1", NC (Normally closed)
042N4406
Danfoss
Danfoss BN024DS Coil - 24 V DC, 20W
018F6968
Danfoss
Danfoss Aveo Sensor Element - RA snapkobling, Built-in 10352391
015G4090
Danfoss

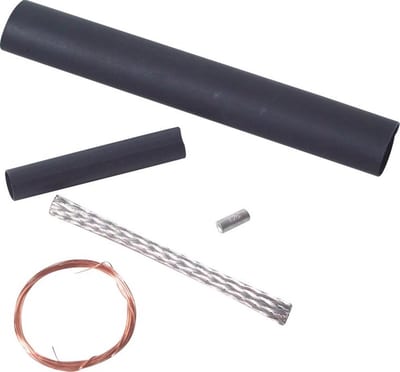

Danfoss DEVIcrimp Repair Kit mounting set 2-Conductor CS2A/CS
7239105698
Danfoss

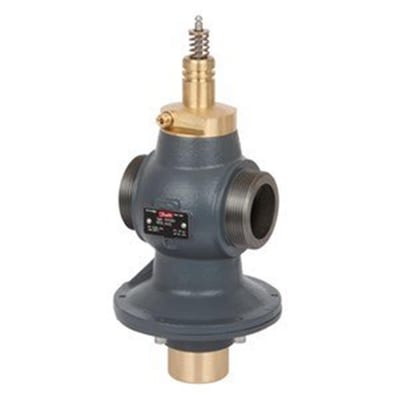

Danfoss AHQM Flow Limiter - 25, Nipple/nipple, 1 1/4", 4M³/h
4006966
Danfoss

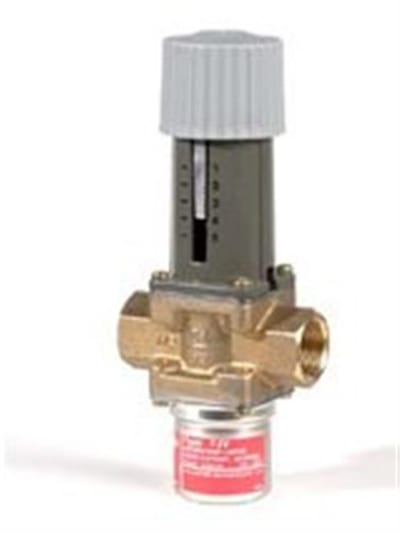

Danfoss FJV 20 Return Flow Thermostat with socket connection - 20°C, 60°C, 3.4M³/h
