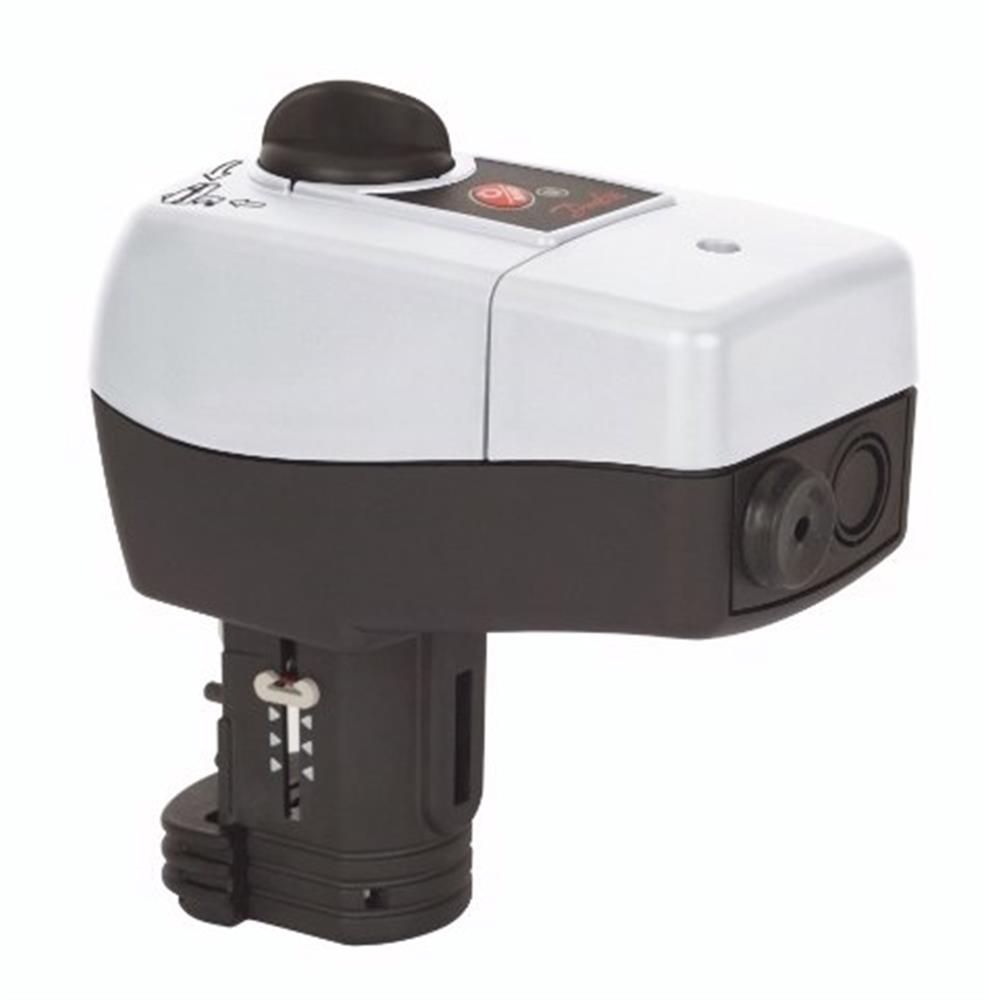

Danfoss AMV 435 Gear Motor 3-Point - 24V AC, 7MM/s
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AMV 435 Gear Motor 3-point. Engines/thermal engines (Plumbing / Heat / Valves for heating and cooling systems). Principal data: supply voltage 24 V AC, speed 7 mm/s. Supplied under manufacturer part number 082H0162, EAN 5710104007007, HS code 9032.89, country of origin Slovenia.
Technical Specifications
- Product type
- Engines/thermal engines
- Product group
- Heat
- Supply voltage
- 24 V AC
- Speed
- 7 mm/s
- Protection class (IP)
- 54
- Power max
- 400 nm
- Ambient temperature
- 0-55 °C
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 6.3181 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 90328900
- HS code
- 9032.89
- Manufacturer part number
- 082H0162
- VVS number
- 460947480
- EAN
- 5710104007007
- Net weight
- 0.582 Kilogram
- Type
- AMV 435
- Actuator speed [s/mm]
- 8 s/mm
- Actuator type
- Electrical
- Ambient temperature [°C] [max]
- 55 °C
- Ambient temperature [°C] [min]
- 0 °C
- Application
- HVAC
- Cable included
- No
- China RoHS compliance
- Out of scope
- Closing force [N]
- 400 N
- Compatibility with valve
- AB-QM DN 40-100
- Control signal type
- 3-point
- Description
- AMV 435 24V 7,5-15s/mm 20mm 400N
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- IP protection class
- IP54
- Manual operation
- Yes
- Position feedback
- no
- Power consumption [W]
- 2 W
- Protection Class of the Coating
- II
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Safety function
- No
- Speed type
- Standard
- Spring down (return)
- No
- Spring up
- No
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Stroke [mm]
- 20 mm
- Supply voltage [V]
- 24 V AC/DC
Standards & Compliance
- HS Code
- 9032.89
Cross References
- MPN 082H0162
- EAN 5710104007007
- VVS 460947480
Product Documentation
More from Danfoss
Danfoss

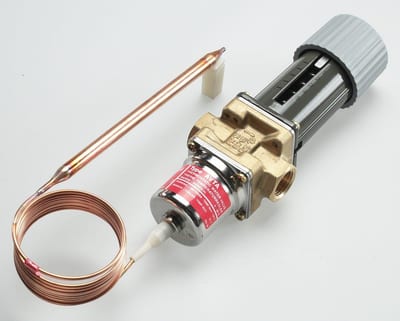

Danfoss AVTA 20 Thermostatic Valve with socket connection - 25°C, 65°C, 3.4M³/h
003N0031
Danfoss

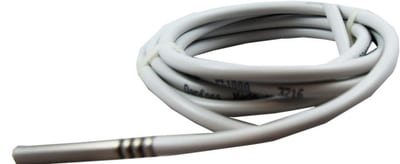

Danfoss AKS Temperature Sensor PT1000 - PT1000, 1.5M, -40 - 100°C, IP67, 1000 Ω, PVC / Stainless steel, AKS 12
084N0036
Danfoss

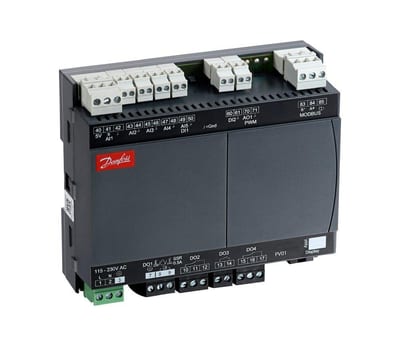

Danfoss ADAP-KOOL Refrigeration Furniture/Room Controller - 230V, 3, 1, AK-CC55 Compact
084B4081
Danfoss

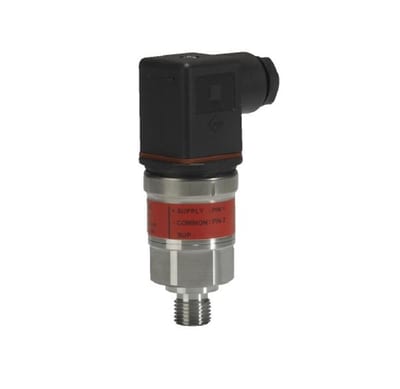

Danfoss MBS 3250 Pressure Transmitter - 1/4", 0-160bar
