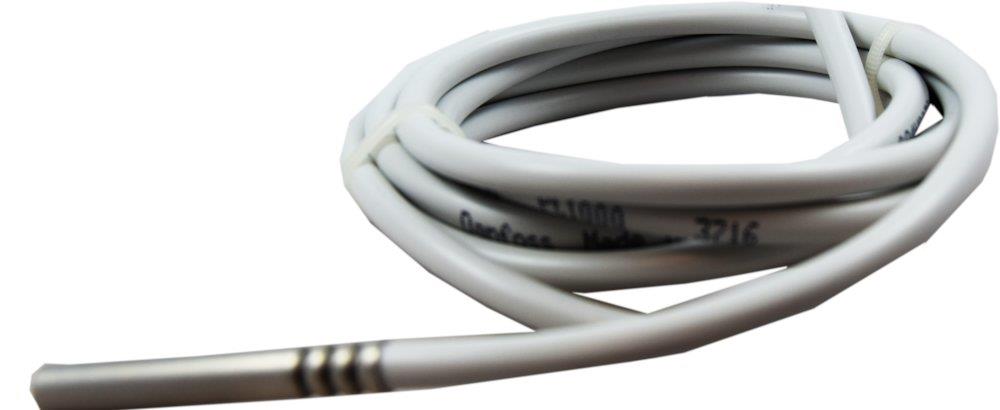

Danfoss AKS Temperature Sensor PT1000 - PT1000, 1.5M, -40 - 100°C, IP67, 1000 Ω, PVC / Stainless steel, AKS 12
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS Temperature Sensor PT1000. Accessories and spare parts for refrigeration controls (Refrigeration technology / Cooling controls, alarms, and detectors). Principal data: sensor type PT1000, length 1.5 m, working temperature -40 - 100 °C, protection class (ip) IP67. Supplied under manufacturer part number 084N0036, EAN 5702423134342, HS code 9032.89, country of origin China.
Technical Specifications
- Product type
- Accessories and spare parts for refrigeration controls
- Product group
- Cooling controls, alarms, and detectors
- Sensor type
- PT1000
- Length
- 1.5 m
- Working temperature
- -40 - 100 °C
- Protection class (IP)
- IP67
- Specification
- 1000 Ω
- Material
- PVC / stainless steel
- Type designation
- AKS 12
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.5866 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90328900
- HS code
- 9032.89
- Manufacturer part number
- 084N0036
- EAN
- 5702423134342
- Net weight
- 0.047 Kilogram
- Type
- AKS 12
- Ambient temperature max. [°C]
- 100 °C
- Ambient temperature max. [°F]
- 212 °F
- Approval
- CE
- Cable length [in]
- 59.06 in
- Cable length [m]
- 1.5 m
- Cable tempr. range [°C] [max]
- 100 °C
- Cable tempr. range [°C] [min]
- -40 °C
- Cable type
- PVC
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Cable
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Measuring range [°C] [max]
- 100 °C
- Measuring range [°C] [min]
- -40 °C
- Measuring range [°F] [max]
- 212 °F
- Measuring range [°F] [min]
- -40 °F
- Protection tube diameter [in]
- 0.23 in
- Protection tube diameter [mm]
- 5.8 mm
- Protection tube length [in]
- 1.58 in
- Protection tube length [mm]
- 40 mm
- Protection tube material
- STAINLEES STEEL
- REACH Candidate Strip substances
- No
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Wires [pcs]
- 2 pc
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 5702423134342
- MPN 084N0036
