Product Description

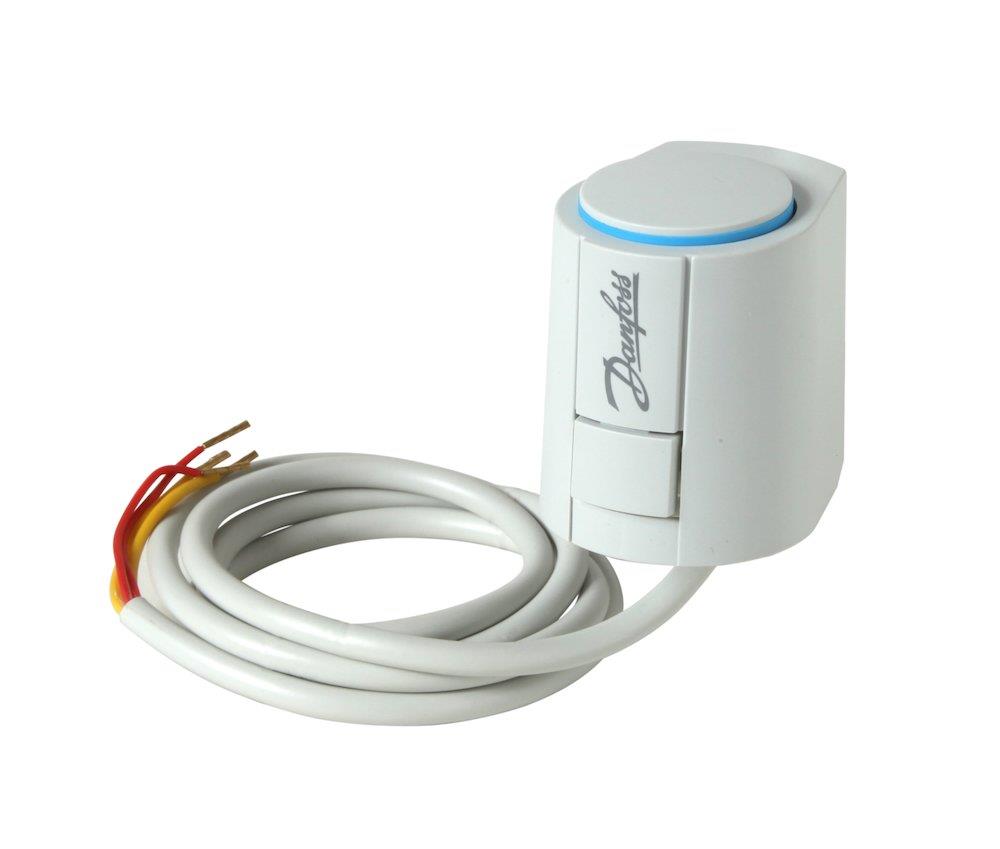

Danfoss ABN A5 Thermo Actuator. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 10-32, supply voltage 230 V AC. Supplied under manufacturer part number 082F1152, EAN 5702420122236, HS code 9032.81, country of origin Germany.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- DN dimension
- 10-32
- Supply voltage
- 230 V AC
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 0.5508 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 90328100
- HS code
- 9032.81
- Manufacturer part number
- 082F1152
- VVS number
- 406848750
- EAN
- 5702420122236
- Net weight
- 0.096 Kilogram
- Type
- ABN A5 On/Off
- Approval standard
- EC EN 60730
- Cable included
- No
- Cable length [m]
- 0 m
- China RoHS compliance
- Out of scope
- Compatibility with AB-QM size
- DN 10-32
- Control signal type
- On/off and PWM
- De-energized position
- Normally closed
- Description
- ABN A5 thermal actuator
- End-switch
- No
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- IP protection class
- IP54
- Label product
- Yes
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Stroke [mm]
- 5 mm
- Supply voltage [V]
- 230 V AC
Standards & Compliance
- HS Code
- 9032.81
Cross References
- MPN 082F1152
- EAN 5702420122236
- VVS 406848750
