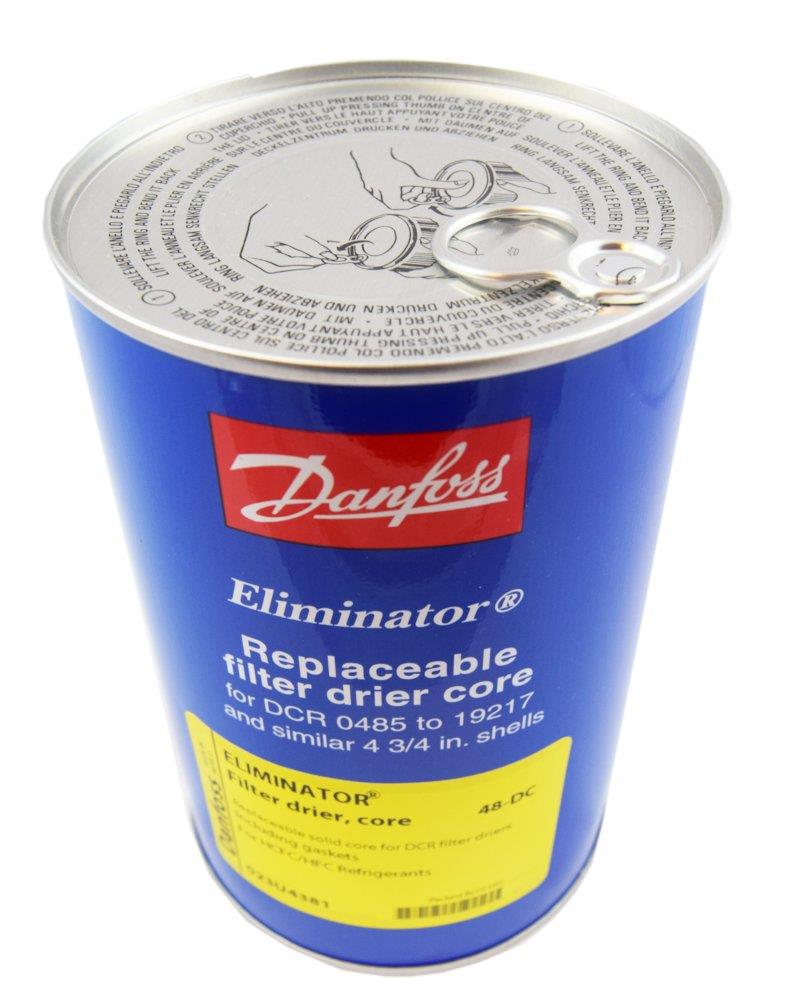

Danfoss Filter Insert insert - 48DC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Filter Insert insert. Drying filters HFC (Refrigeration technology / Cooling technical components / Dry filters). Principal data: type designation 48DC. Supplied under manufacturer part number 023U4381, EAN 5702428004893, HS code 8418.99, country of origin Mexico.
Technical Specifications
- Product type
- Drying filters HFC
- Product group
- Cooling technical components
- Type designation
- 48DC
- Sales unit
- Pack
- Carbon footprint (EPD)
- 5.1704 kg CO2e per pcs
- Country of origin
- Mexico
- Customs tariff code (EU CN)
- 84189990
- HS code
- 8418.99
- Manufacturer part number
- 023U4381
- EAN
- 5702428004893
- Net weight
- 0.709 Kilogram
- Type
- DC
- Acid capacity [g]
- 9.09 g
- Acid capacity [oz]
- 0.321 oz
- Activated alumina [%]
- 20 %
- China RoHS compliance
- Yes
- Core Size code
- 48 cu.in.
- Core type
- Solid core
- Drying Cap[Drops of Water]24°C
- R1234ze: 1386
- Drying Cap[Drops of Water]52°C
- R1234ze: 1246
- EU RoHS compliance
- Yes
- Filter application
- Std Moisture & Acid Capacity
- Gasket included
- Yes
- Lubricants compatibility
- Oilfree applications
- Molecular sieve [%]
- 80 %
- Oil free refrigerants
- R1234ze(E)
- Parts included
- 1 x Gasket (023U0743)
- REACH Candidate Strip substances
- No
- Refrigerants
- R134a
- Solid core surface [cm2]
- 612 cm²
- Solid core surface [in2]
- 95 in²
- Solid core volume [cm3]
- 727 cm³
- Solid core volume [in3]
- 44 in³
Standards & Compliance
- HS Code
- 8418.99
Cross References
- EAN 5702428004893
- MPN 023U4381
Product Documentation
More from Danfoss
Danfoss

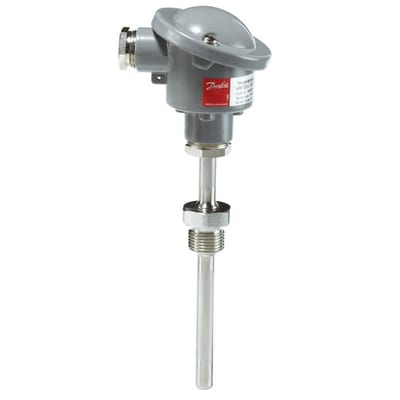

Danfoss MBT 3252 Sensor - 1/2", 0°C, 100°C, 100mm
10212027
Danfoss
Danfoss MBS 3300 Pressure Transmitter - 1/4", 0-16bar 10248595
Danfoss

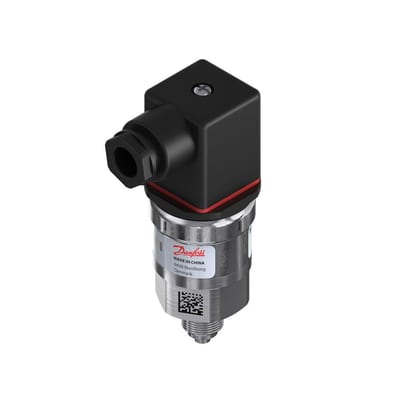

Danfoss MBS 3000 Pressure Transmitter - 1/4", 0-16bar
10213420
Danfoss

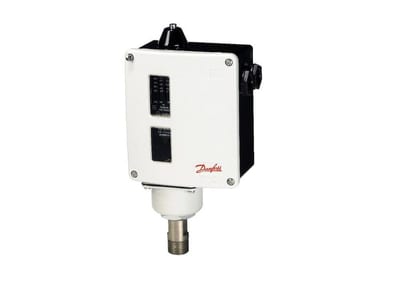

Danfoss Pressure Switch - 10100373
Danfoss

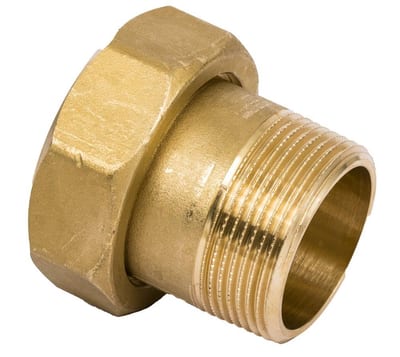

Danfoss Threaded Nipple Set 2 pcs - Nipple, 1 1/2", 40
4007081
Danfoss

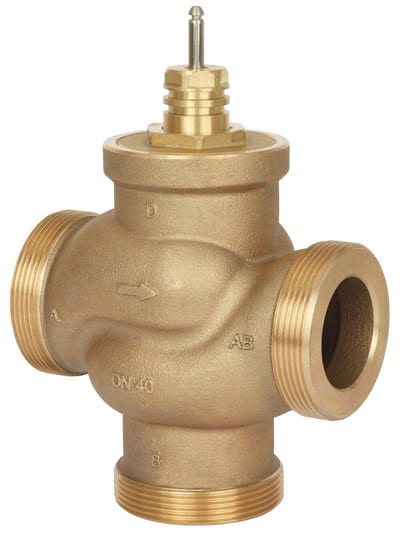

Danfoss VRB 3 Seat Valve 3-Way - 50, 2 3/4", Nipple, 40M³/h
4007141
Danfoss
Danfoss MBS 3000 Pressure Transmitter - 1/4", 0-160bar
10248572
Danfoss

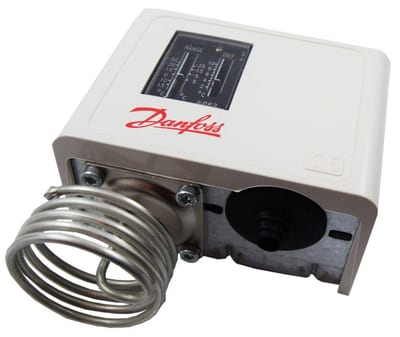

Danfoss KP Thermostat - 40 - 65°C, -30°C, 15°C, Diff. 6 - 23 / 1,5 - 7, C1, KP 62
