Danfoss AVQMT flow and temperature controller with integrated control valve (PICV), PN 25, DN 40, flow range 0.8–12 m³/h, Kvs 20 m³/h, Flange DN 40 (EN 1092-2)
Pricing
Request a quote
We reply within 24 hours
Product Description

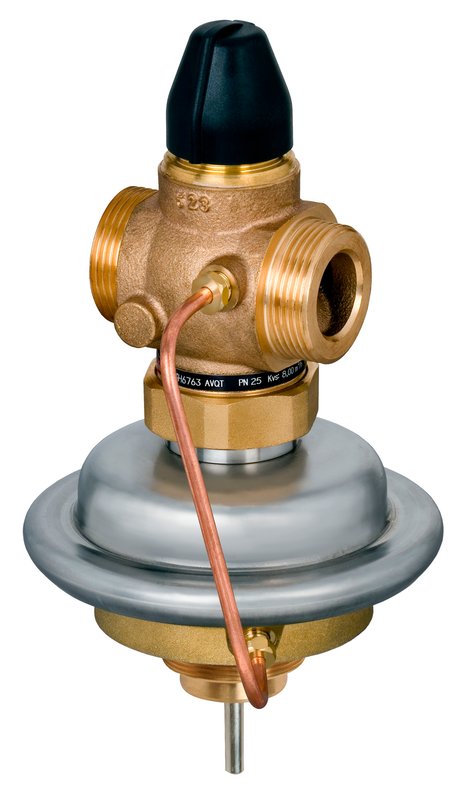

Danfoss AVQMT (003H6781) — self-acting flow and temperature controller with integrated pressure-independent control valve, PN 25, DN 40, for district heating and cooling systems. The AVQMT holds the flow constant and limits it to the set maximum and closes on rising temperature; the integrated control valve accepts a Danfoss AMV(E) electric actuator (for ECL electronic control) or an AVT/STM thermostatic actuator for combined flow and temperature control. It comprises a control valve with adjustable flow restrictor, a connection neck for the thermostatic actuator, a connection neck for the electric actuator, and a pressure actuator with one control diaphragm. Flow range 0.8 - 12 m³/h; flow-restrictor differential pressure 0.2 bar; Kvs 20 m³/h. Maximum differential-pressure range 16 bar; media temperature 2–150 °C; cavitation factor z ≥ 0.6; seat leakage 0.05 % Kvs (IEC 60534). Temperature is set by the separately ordered AVT thermostatic actuator, setting ranges 10–40 / 20–70 / 40–90 / 60–110 °C and 10–45 / 35–70 / 60–100 / 85–125 °C (AVT actuator, ordered separately); the controller is delivered assembled with the impulse tube between valve and actuator, the actuator ordered separately. Combined with AMV(E), AVT or STM actuators the controller is type-tested to EN 14597. Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone Dezincing free brass CuZn36Pb2As; seat Stainless steel, mat. 1.4571; control diaphragm EPDM. Connection Flange DN 40 (EN 1092-2). Mounting version Free. Permissible media: District heating/cooling circulation water (Glycolic water up to 30%), pH 7–10. OEM P/N 003H6781. Technical data quoted verbatim from store.danfoss.com (code 003H6781) and the Danfoss AVQT / AVQMT (PN 25) data sheet. 1.4571; control diaphragm EPDM; Pressure rating: PN 25 (max. differential-pressure range 16 bar); Temperature range: 2 to 150 °C (district heating/cooling water); HS code: 8481.80. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Code number
- 003H6781
- Type
- AVQMT
- Product group
- Pressure and flow controllers
- Function
- Self-acting flow and temperature controller with integrated pressure-independent control valve (limits max. flow; closes on rising temperature; accepts AMV(E) electric or AVT/STM thermostatic actuator)
- Valve size
- DN 40
- Pressure class
- PN 25
- Connection
- Flange DN 40 (EN 1092-2)
- Kvs value
- 20 m³/h
- Flow rate range
- 0.8 - 12 m³/h
- Flow restrictor differential pressure (Δpb)
- 0.2 bar
- Max. differential pressure range
- 16 bar
- Media temperature
- 2 - 150 °C
- Temperature setting ranges (AVT actuator, ordered separately)
- 10–40 / 20–70 / 40–90 / 60–110 °C and 10–45 / 35–70 / 60–100 / 85–125 °C (AVT actuator, ordered separately)
- Media pH
- 7 - 10
- Cavitation factor z
- ≥ 0.6
- Seat leakage rate
- 0.05 % Kvs (IEC 60534)
- Mounting version
- Free
- Stem position
- Normally open
- Stroke
- 5 mm
- Type test
- EN 14597 (controller combined with AMV(E) / AVT / STM actuator)
- Permissible media
- District heating/cooling circulation water (Glycolic water up to 30%)
- Valve body material
- Ductile iron EN-GJS-400-18-LT (GGG 40.3)
- Valve cone material
- Dezincing free brass CuZn36Pb2As
- Valve seat material
- Stainless steel, mat. No. 1.4571
- Actuator diaphragm
- EPDM
- EU RoHS compliance
- Yes with exemptions (6(c))
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- China RoHS
- Out of scope
- Net weight
- 12.458 kg
- Gross weight
- 12.458 kg
- EAN
- 5702421543023
Standards & Compliance
- Material
- Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone Dezincing free brass CuZn36Pb2As; valve seat Stainless steel, mat. No. 1.4571; control diaphragm EPDM
- Pressure Rating
- PN 25 (max. differential-pressure range 16 bar)
- Temperature Range
- 2 to 150 °C (district heating/cooling water)
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss AVQMT for DN 40 district-heating/cooling combined flow limiting and temperature control at PN 25. Set the maximum flow within 0.8 - 12 m³/h using the adjustable flow restrictor (Kvs 20 m³/h). The integrated control valve accepts a Danfoss AMV(E) electric actuator (ECL control) or an AVT/STM thermostatic actuator for combined flow/temperature control (ordered separately). Temperature setting ranges 10–40 / 20–70 / 40–90 / 60–110 °C and 10–45 / 35–70 / 60–100 / 85–125 °C (AVT actuator, ordered separately). Confirm the connection (Flange DN 40 (EN 1092-2)) and pressure class (PN 25) match the pipework; order the matching tailpiece/union-nut or flange set separately. Maximum differential-pressure range 16 bar, media temperature up to 150 °C.
Product Documentation
More from Danfoss
Danfoss
Danfoss AVQMT flow and temperature controller with integrated control valve (PICV), PN 25, DN 50, flow range 0.8–14 m³/h, Kvs 25 m³/h, Flange DN 50 (EN 1092-2)
003H6782
Danfoss

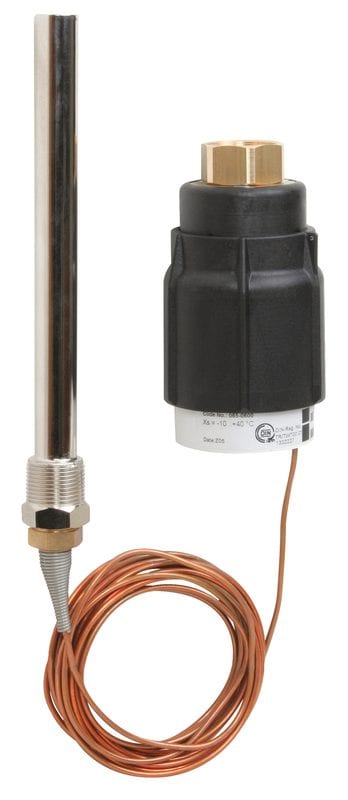

Danfoss AVT thermostatic actuator (self-acting temperature controller), setting range -10 – 40 °C, sensor 170 mm × Ø9.5 mm, capillary 5 m, sensor connection M14X1 / R 1/2 ext. thread acc. DIN 2999, PN 25, for AVQT/AVQMT/AVQM/VG self-acting valves
065-0596
Danfoss
Danfoss AVT thermostatic actuator (self-acting temperature controller), setting range 20 – 70 °C, sensor 170 mm × Ø9.5 mm, capillary 5 m, sensor connection M14X1 / R 1/2 ext. thread acc. DIN 2999, PN 25, for AVQT/AVQMT/AVQM/VG self-acting valves
065-0597
Danfoss
Danfoss AVT thermostatic actuator (self-acting temperature controller), setting range 40 – 90 °C, sensor 170 mm × Ø9.5 mm, capillary 5 m, sensor connection M14X1 / R 1/2 ext. thread acc. DIN 2999, PN 25, for AVQT/AVQMT/AVQM/VG self-acting valves
065-0598
Danfoss
Danfoss AVT thermostatic actuator (self-acting temperature controller), setting range 60 – 110 °C, sensor 170 mm × Ø9.5 mm, capillary 5 m, sensor connection M14X1 / R 1/2 ext. thread acc. DIN 2999, PN 25, for AVQT/AVQMT/AVQM/VG self-acting valves
065-0599
Danfoss
Danfoss AVT thermostatic actuator (self-acting temperature controller), setting range -10 – 40 °C, sensor 210 mm × Ø16 mm, capillary 5 m, sensor connection M22X1 / R 3/4 ext. thread acc. DIN 2999, PN 25, for AVQT/AVQMT/AVQM/VG self-acting valves
065-0600
Danfoss
Danfoss AVT thermostatic actuator (self-acting temperature controller), setting range 20 – 70 °C, sensor 210 mm × Ø16 mm, capillary 5 m, sensor connection M22X1 / R 3/4 ext. thread acc. DIN 2999, PN 25, for AVQT/AVQMT/AVQM/VG self-acting valves
065-0601
Danfoss
Danfoss AVT thermostatic actuator (self-acting temperature controller), setting range 40 – 90 °C, sensor 210 mm × Ø16 mm, capillary 5 m, sensor connection M22X1 / R 3/4 ext. thread acc. DIN 2999, PN 25, for AVQT/AVQMT/AVQM/VG self-acting valves
065-0602
