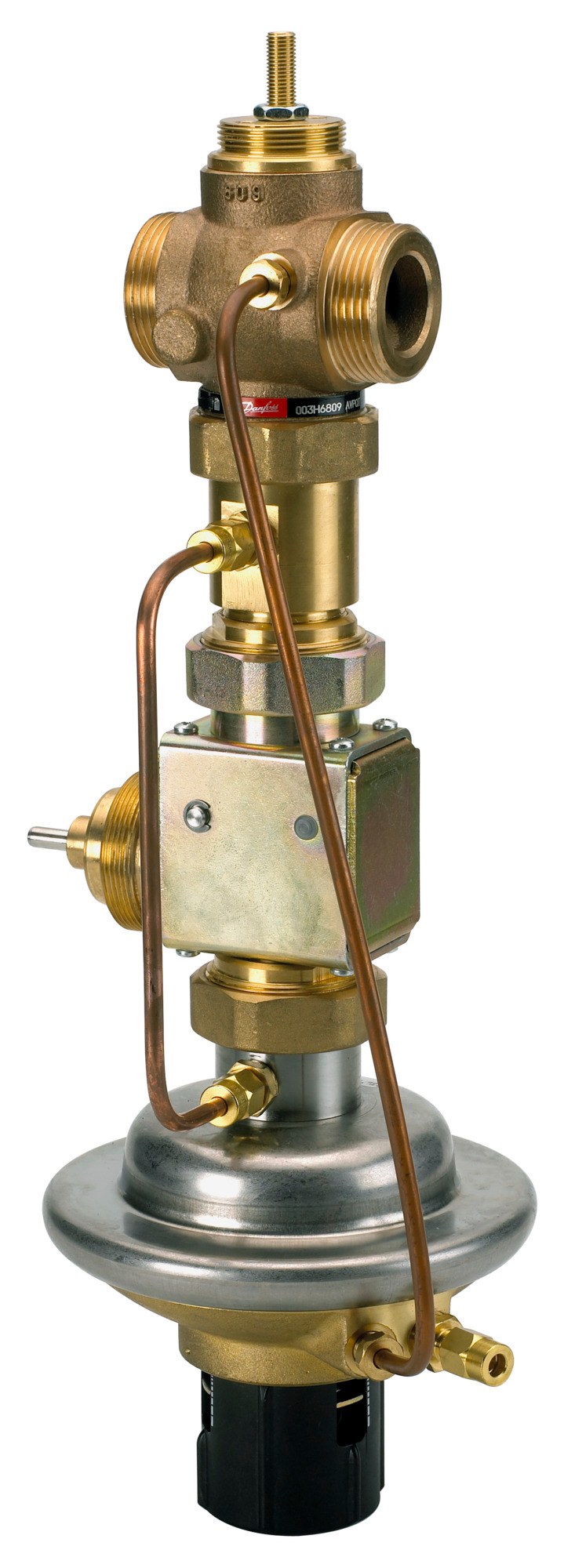

Danfoss AVPQT pressure-independent control valve (Δp + flow + temperature), PN 25, DN 15, flow 0.07 – 2.4 m³/h, Δp 0.2 – 1 bar, external thread G 3/4 A, return mounting
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVPQT (003H6807) — self-acting multi-functional controller combining differential-pressure control, flow limitation and return-temperature limitation, PN 25, DN 15, return-pipe mounting, for district heating and domestic-hot-water substations. The AVPQT combines three self-acting functions in one valve: differential-pressure control, flow (volume) limitation and, via a thermostatic element, temperature limitation of the return. It maintains a constant differential pressure across the integrated flow-limiting valve while the thermostatic actuator throttles on rising return temperature — no auxiliary energy required. kVS 4 m³/h; flow-rate range 0.07 – 2.4 m³/h at Δpb 0.2 bar; differential-pressure setting 0.2 – 1 bar; maximum differential pressure 12 bar; medium temperature 2–150 °C; leakage 0.02% of kVS (IEC 534). Valve body red bronze CuSn5ZnPb (Rg5), valve seat stainless steel 1.4571, valve cone dezincing free brass CuZn36Pb2As, control diaphragm EPDM. Connection external thread G 3/4 A (ISO 228/1). OEM P/N 003H6807, EAN 5702421543283. Technical data quoted verbatim from store.danfoss.com (code 003H6807). differential pressure 12 bar); Temperature range: 2 – 150 °C (medium); HS code: 8481.80. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Code number
- 003H6807
- Type
- AVPQT
- Product group
- Pressure and flow controllers (multi-functional)
- Description
- Self-acting combined differential-pressure, flow-limiting and temperature controller, return mounting
- Valve size
- DN 15
- Pressure class
- PN 25
- kVS value
- 4 m³/h
- Flow-rate range
- 0.07 – 2.4 m³/h
- Flow restrictor differential pressure (Δpb)
- 0.2 bar
- Connection
- external thread G 3/4 A (ISO 228/1)
- Differential pressure setting
- 0.2 – 1 bar (adjustable)
- Max. differential pressure
- 12 bar
- Application
- District Heating
- Medium
- Circulation water / glycolic water up to 30% (pH 7–10)
- Medium temperature
- 2 – 150 °C
- Leakage (IEC 534)
- 0.02% of kVS
- Mounting version
- Return
- Stem position
- Normally open
- Valve body
- Red bronze CuSn5ZnPb (Rg5)
- Valve seat
- Stainless steel, mat. No. 1.4571
- Valve cone
- Dezincing free brass CuZn36Pb2As
- Control diaphragm
- EPDM
- EU RoHS compliance
- Out of scope
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Net weight
- 5.396 Kilogram
- Gross weight
- 5.396 Kilogram
- Packed volume
- 26.208 Liter
- EAN
- 5702421543283
- HS code
- 8481.80
Standards & Compliance
- Material
- Valve body red bronze CuSn5ZnPb (Rg5); valve seat stainless steel 1.4571; valve cone dezincing free brass CuZn36Pb2As; control diaphragm EPDM
- Thread Standard
- ISO 228/1
- Pressure Rating
- PN 25 (max. differential pressure 12 bar)
- Temperature Range
- 2 – 150 °C (medium)
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss AVPQT for DN 15 district-heating substations requiring differential-pressure control, flow limitation and return-temperature limitation in one valve, PN 25, return-pipe mounting. Size by the design flow (range 0.07 – 2.4 m³/h, kVS 4 m³/h) and set the differential-pressure setpoint within 0.2 – 1 bar; the return-temperature limit is set on the thermostatic element. Confirm the connection (external thread G 3/4 A (ISO 228/1)) and pressure class (PN 25) against the pipework. Order the thermostatic sensor/element and impulse tube per the AVPQT installation guide. Maximum differential pressure 12 bar, medium temperature up to 150 °C.
