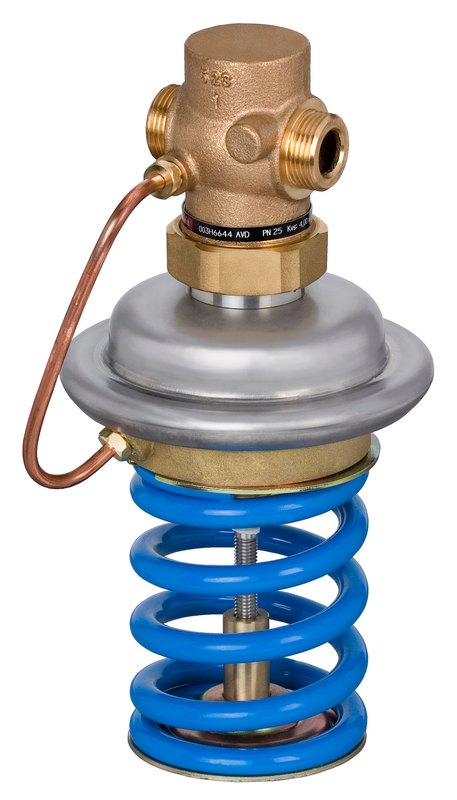

Danfoss AVD pressure reduction controller, PN 25, DN 50, 1–5 bar adjustable, Kvs 25 m³/h, flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVD (003H6661) — self-acting pressure reduction controller, PN 25, DN 50, for district heating and cooling systems. The AVD is a self-acting pressure reduction controller for district-heating water. It is normally open and closes on rising downstream pressure, holding the reduced (outlet) pressure constant at the setpoint. It has a control valve, an actuator with one control diaphragm and a spring for the pressure setting. Reduced-pressure setting range 1–5 bar adjustable; Kvs 25 m³/h. Maximum differential-pressure range 16 bar; media temperature 2–150 °C; cavitation factor z ≥ 0.6; seat leakage 0.05 % Kvs (IEC 60534). Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone Dezincing free brass CuZn36Pb2As; seat Stainless steel, mat. 1.4571; control diaphragm EPDM. Connection Flange, PN 25. Mounting version Flow. Permissible media: District heating/cooling circulation water (Glycolic water up to 30%). OEM P/N 003H6661. Technical data quoted verbatim from store.danfoss.com (code 003H6661) and the Danfoss AVD / AVD-S (PN 25) pressure reduction controller data sheet. 1.4571; control diaphragm EPDM; Pressure rating: PN 25 (max. differential-pressure range 16 bar); Temperature range: 2 to 150 °C (district heating/cooling water); HS code: 8481.80. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Code number
- 003H6661
- Type
- AVD
- Product group
- Pressure and flow controllers (pressure reduction controller)
- Function
- Self-acting pressure reduction controller (closes on rising downstream pressure)
- Valve size
- DN 50
- Pressure class
- PN 25
- Connection
- Flange, PN 25
- Kvs value
- 25 m³/h
- Pressure setting range
- 1 - 5 bar (reduced/outlet, adjustable)
- Max. differential pressure range
- 16 bar
- Media temperature
- 2 - 150 °C
- Cavitation factor z
- ≥ 0.6
- Seat leakage rate
- 0.05 % Kvs (IEC 60534)
- Mounting version
- Flow
- Stem position
- Normally open
- Permissible media
- District heating/cooling circulation water (Glycolic water up to 30%)
- Valve body material
- Ductile iron EN-GJS-400-18-LT (GGG 40.3)
- Valve cone material
- Dezincing free brass CuZn36Pb2As
- Valve seat material
- Stainless steel, mat. No. 1.4571
- Actuator diaphragm
- EPDM
- EU RoHS compliance
- Yes with exemptions (6(c))
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- China RoHS
- Out of scope
- Net weight
- 14.433 kg
- Gross weight
- 14.632 kg
- EAN
- 5702421541821
Standards & Compliance
- Material
- Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone Dezincing free brass CuZn36Pb2As; valve seat Stainless steel, mat. No. 1.4571; control diaphragm EPDM
- Pressure Rating
- PN 25 (max. differential-pressure range 16 bar)
- Temperature Range
- 2 to 150 °C (district heating/cooling water)
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss AVD for DN 50 district-heating/cooling circuits at PN 25. Set the reduced-pressure setpoint within 1–5 bar. Confirm the connection (Flange, PN 25) and pressure class (PN 25) match the pipework; order the matching counter-flange and impulse tube separately. Maximum differential-pressure range 16 bar, media temperature up to 150 °C.
Product Documentation
More from Danfoss
Danfoss
Danfoss AVD pressure reduction controller, PN 25, DN 32, 3–12 bar adjustable, Kvs 12.5 m³/h, flange
003H6662
Danfoss
Danfoss AVD pressure reduction controller, PN 25, DN 40, 3–12 bar adjustable, Kvs 20 m³/h, flange
003H6663
Danfoss
Danfoss AVD pressure reduction controller, PN 25, DN 50, 3–12 bar adjustable, Kvs 25 m³/h, flange
003H6664
Danfoss

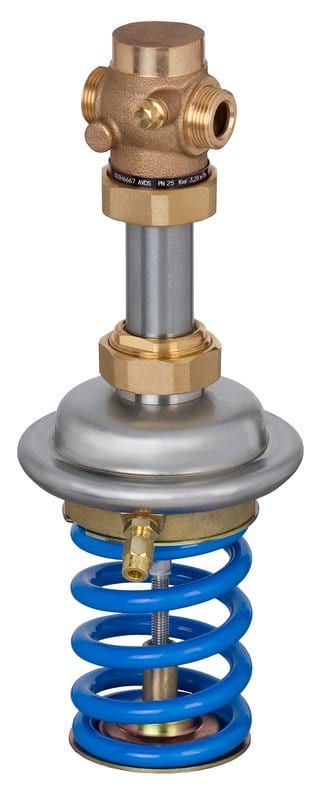

Danfoss AVD-S pressure reduction controller, PN 25, DN 15, 1–5 bar adjustable, Kvs 1 m³/h, G 3/4 A external thread, for steam
