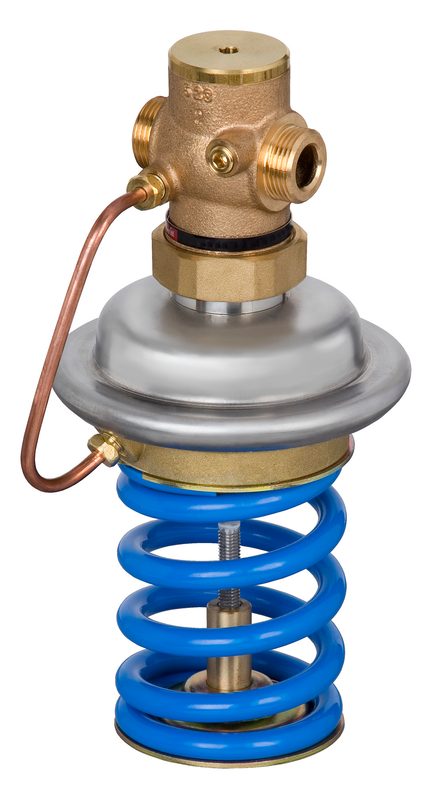

Danfoss AVA pressure relief controller, PN 25, DN 40, 3–11 bar adjustable, Kvs 20 m³/h, flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVA (003H6630) — self-acting pressure relief controller, PN 25, DN 40, for district heating and cooling systems. The AVA is a self-acting pressure relief controller; it is normally closed and opens on rising pressure. It has a control valve, an actuator with one control diaphragm and a spring for the pressure setting. Pressure setting range 3–11 bar adjustable; Kvs 20 m³/h. Maximum differential-pressure range 16 bar; media temperature 2–150 °C; cavitation factor z ≥ 0.6; seat leakage 0.05 % Kvs (IEC 60534). Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone Dezincing free brass CuZn36Pb2As; seat Stainless steel, mat. 1.4571; control diaphragm and DP sealing EPDM. Connection Flange, PN 25. Mounting version Bypass. Permissible media: District heating/cooling circulation water (glycolic water up to 30%). OEM P/N 003H6630. Technical data quoted verbatim from store.danfoss.com (code 003H6630) and the Danfoss AVA (PN 25) pressure relief controller data sheet. 1.4571; control diaphragm and DP sealing EPDM; Pressure rating: PN 25 (max. differential-pressure range 16 bar); Temperature range: 2 to 150 °C (district heating/cooling water); HS code: 8481.80. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Code number
- 003H6630
- Type
- AVA
- Product group
- Pressure and flow controllers (pressure relief controller)
- Function
- Self-acting pressure relief controller (opens on rising pressure)
- Valve size
- DN 40
- Pressure class
- PN 25
- Connection
- Flange, PN 25
- Kvs value
- 20 m³/h
- Pressure setting range
- 3 - 11 bar (adjustable, factory range)
- Max. differential pressure range
- 16 bar
- Media temperature
- 2 - 150 °C
- Cavitation factor z
- ≥ 0.6
- Seat leakage rate
- 0.05 % Kvs (IEC 60534)
- Mounting version
- Bypass
- Permissible media
- District heating/cooling circulation water (Glycolic water up to 30%)
- Valve body material
- Ductile iron EN-GJS-400-18-LT (GGG 40.3)
- Valve cone material
- Dezincing free brass CuZn36Pb2As
- Valve seat material
- Stainless steel, mat. No. 1.4571
- Diaphragm / DP sealing
- EPDM
- EU RoHS compliance
- Yes with exemptions (6(c))
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- China RoHS
- Out of scope
- Net weight
- 13.271 kg
- Gross weight
- 14.064 kg
- EAN
- 5702421541500
Standards & Compliance
- Material
- Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone Dezincing free brass CuZn36Pb2As; valve seat Stainless steel, mat. No. 1.4571; control diaphragm and DP sealing EPDM
- Pressure Rating
- PN 25 (max. differential-pressure range 16 bar)
- Temperature Range
- 2 to 150 °C (district heating/cooling water)
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss AVA for DN 40 district-heating/cooling circuits at PN 25. Set the relief-pressure setpoint within 3–11 bar. Confirm the connection (Flange, PN 25) and pressure class (PN 25) match the pipework; order the matching tailpiece/union-nut set and impulse tube separately. Maximum differential-pressure range 16 bar, media temperature up to 150 °C.
Product Documentation
More from Danfoss
Danfoss
Danfoss AVA pressure relief controller, PN 25, DN 50, 3–11 bar adjustable, Kvs 25 m³/h, flange
003H6631
Danfoss

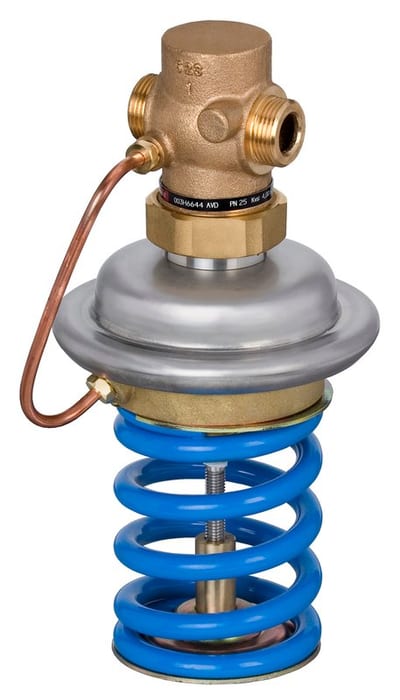

Danfoss AVD pressure reduction controller, PN 25, DN 15, 1–5 bar adjustable, Kvs 4 m³/h, G 3/4 A external thread
