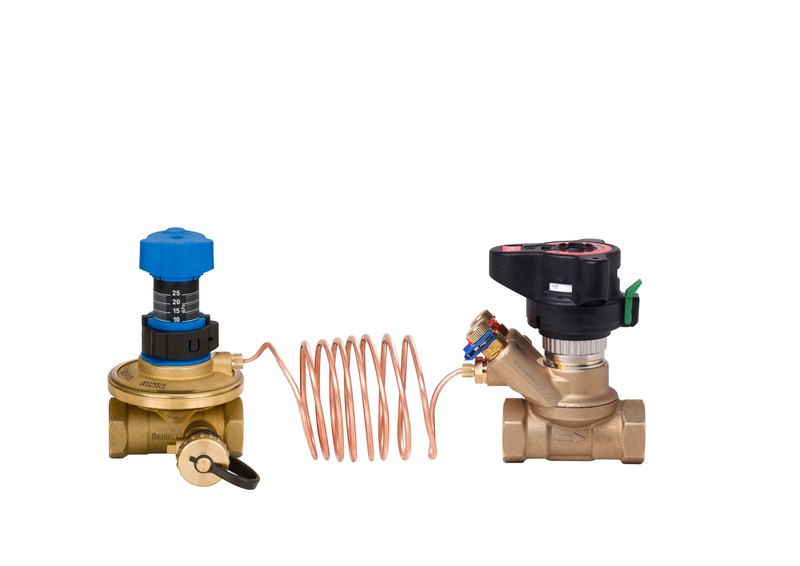

Danfoss ASV-PV + ASV-BD balancing valve set DN 15, 5-25 kPa — automatic differential-pressure control

Danfoss ASV-PV + ASV-BD automatic-balancing valve set, DN 15, OEM order code 003Z5695. The set pairs an ASV-PV 4G self-acting differential-pressure controller (setting range 5-25 kPa) mounted in the return with a ASV-BD partner balancing valve (presetting, shut-off, drain and two self-sealing measuring test plugs) in the flow, connected by a capillary impulse tube. Together they hold a constant differential pressure across a riser or terminal-unit branch, so thermostatic radiator/terminal valves modulate without noise or flow starvation and the circuit self-balances under varying load. Set(V) of ASV-PV, 5-25 kPa and ASV-BD, DN 15. Genuine Danfoss part; data quoted verbatim from store.danfoss.com (code 003Z5695). OEM P/N 003Z5695, EAN 5702424614713. HS 8481.80.

Brand

Danfoss

Part number

003Z5695

Gross weight

3.47 Kilogram

Net weight

3.039 Kilogram

Type

ASV-PV set

Product group

Automatic balancing

Description

Set(V) of ASV-PV, 5-25 kPa and ASV-BD, DN 15

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Valve size

DN 15

EAN

5702424614713

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Code number

003Z5695

Material

Valve body brass (DZR)

HS Code

8481.80
