Danfoss AFQMP 2 DN 200 PN 16 pressure-independent flow + differential-pressure control valve — flange, Kvs 650 m³/h, flow 36–450 m³/h, Δp 0.1 bar–1 bar

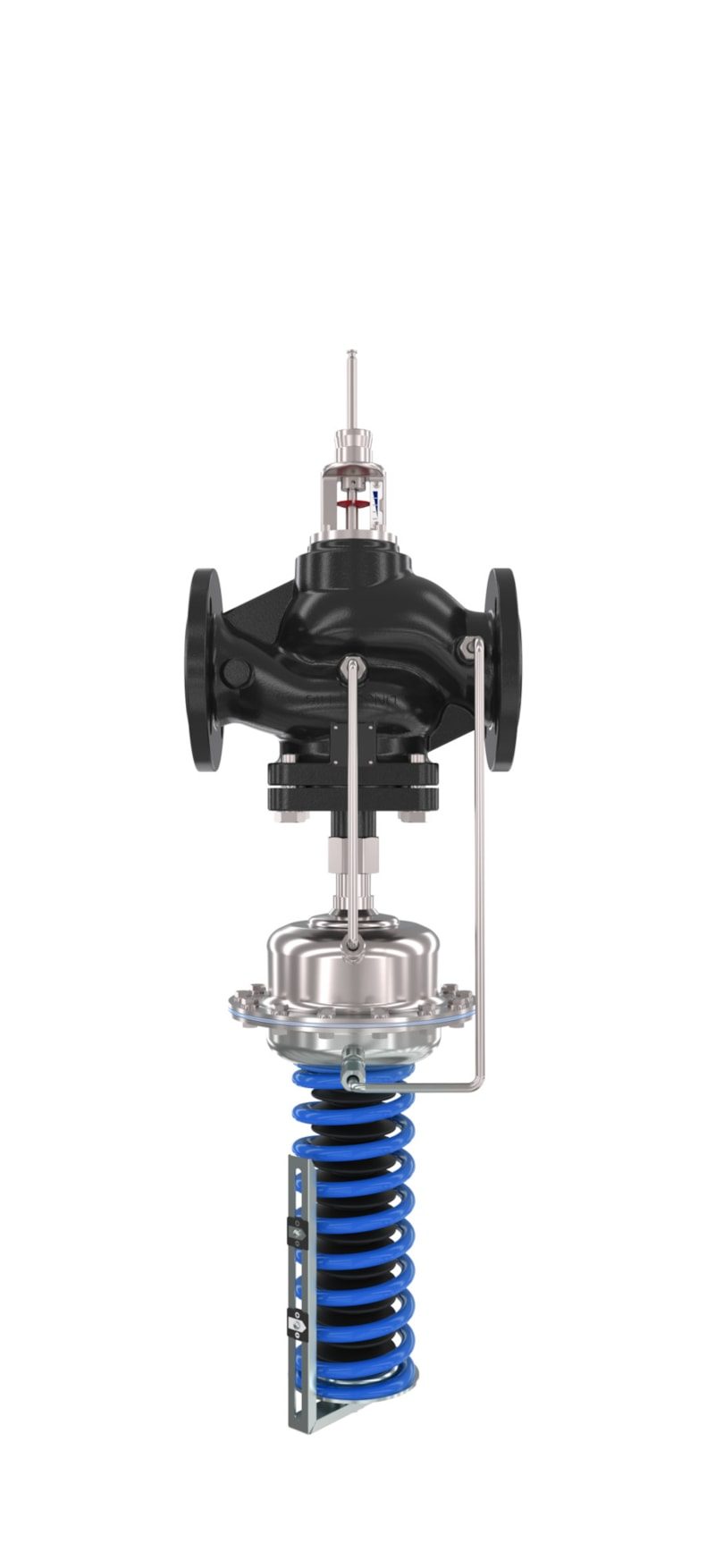

Danfoss AFQMP 2 DN 200 PN 16 — self-acting pressure-independent flow control valve with an integrated differential-pressure controller, for district heating and district cooling circuits. Combines automatic flow limitation, a control valve and a differential-pressure controller in one body: the flow set point is held independent of pressure variation, while the differential pressure across the control valve is kept constant. Flange connection. Kvs 650 m³/h; adjustable flow range 36–450 m³/h (flow restrictor differential pressure dpb 1 bar); differential-pressure setting range 0.1 bar–1 bar. Media temperature 2 °C to 150 °C. Maximum operating pressure 16 bar. Body Grey cast iron EN-GJL-250 (GG-25); valve cone and seat Stainless steel mat. No. 1.4021; EPDM seals and rolling diaphragm. Normally-open stem, stroke 28 mm. Medium: district heating/cooling circulation water (glycolic water up to 30%). OEM designation "AFQMP 2, PN 16, DN 200, 0.1 bar - 1 bar, Flow rate [m³/h]: 36 - 450, Flange, Mounting version: Free". OEM P/N 003G5565. EAN 5714279064759. Technical data quoted verbatim from store.danfoss.com (code 003G5565).

Code number

003G5565

Type

AFQMP 2

Product group

Pressure flow controllers

Gross weight

303.7 Kilogram

Net weight

247.5 Kilogram

Volume

1392 Liter

Actuator diaphragm material

EPDM (Rolling, fibre enforced)

Actuator size [cm²]

320 cm²

Application

District heating and cooling

Cavitation factor

0.35

Cavitation factor 100%

0.31

Cavitation factor 25%

0.44

Cavitation factor 50%

0.44

Cavitation factor 75%

0.35

China RoHS compliance

Out of scope

Connection size

DN 200

Connection types

Flange

Contains batteries

No

Description

Pressure independent control valve

Diameter [mm]

200 mm

Differential pressure range [bar] [Max]

10 bar

Differential pressure setting [bar] [Max]

1 bar

Differential pressure setting [bar] [Min]

0.1 bar

EU RoHS compliance

Out of scope

Flow control

Yes

Flow limitation

Yes

Flow rate [m³/h]

450 m³/h

Flow rate [m³/h] [Max]

450 m³/h

Flow rate [m³/h] [Min]

36 m³/h

Flow restrictor diff.pressure - dpb [bar]

1 bar

Function

Flow controller with int. control valve

Function VSP - P

No

Function VSP - Q

No

Function VSP - T

No

Kvs values [m³/h]

650 m³/h

Leakage rate [% Kvs]

0.01

Leakage through port max. [% Kvs]

0.01

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

150 °C

Media temperature [°C] [Min]

2 °C

Medium alternative

Glycolic water up to 30%

Mounting version

Free

Number of ports

2

Operating pressure [bar] [Max]

16 bar

Permissible media

District heating/cooling circulation water

PN alternative VSP

25

Pressure class

PN 16

Pressure controller

No

Pressure nominal [bar]

16 bar

Pressure relieve system control valve insert

Chamber

Pressure setting range [bar] [Max]

1 bar

Pressure setting range [bar] [Min]

0.1 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sealing CV material

EPDM

Sealing DP material

EPDM

Setting Type

Adjustable

Stem position

Normally open

Stroke [mm]

28 mm

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Valve cone CV material

Stainless steel mat. No. 1.4021

Valve cone DP material

Stainless steel mat. No. 1.4021

Valve seat DP material

Stainless steel, mat. No. 1.4021

Valve seat material

Stainless steel, mat. No. 1.4021

Valve size

DN 200

EAN

5714279064759

HS code

8481.80

Size / Series

AFQMP 2

Material

Valve body Grey cast iron EN-GJL-250 (GG-25); cone/seat Stainless steel mat. No. 1.4021; EPDM diaphragm and seals

Pressure Rating

PN 16

Temperature Range

2 °C to 150 °C

HS Code

8481.80
